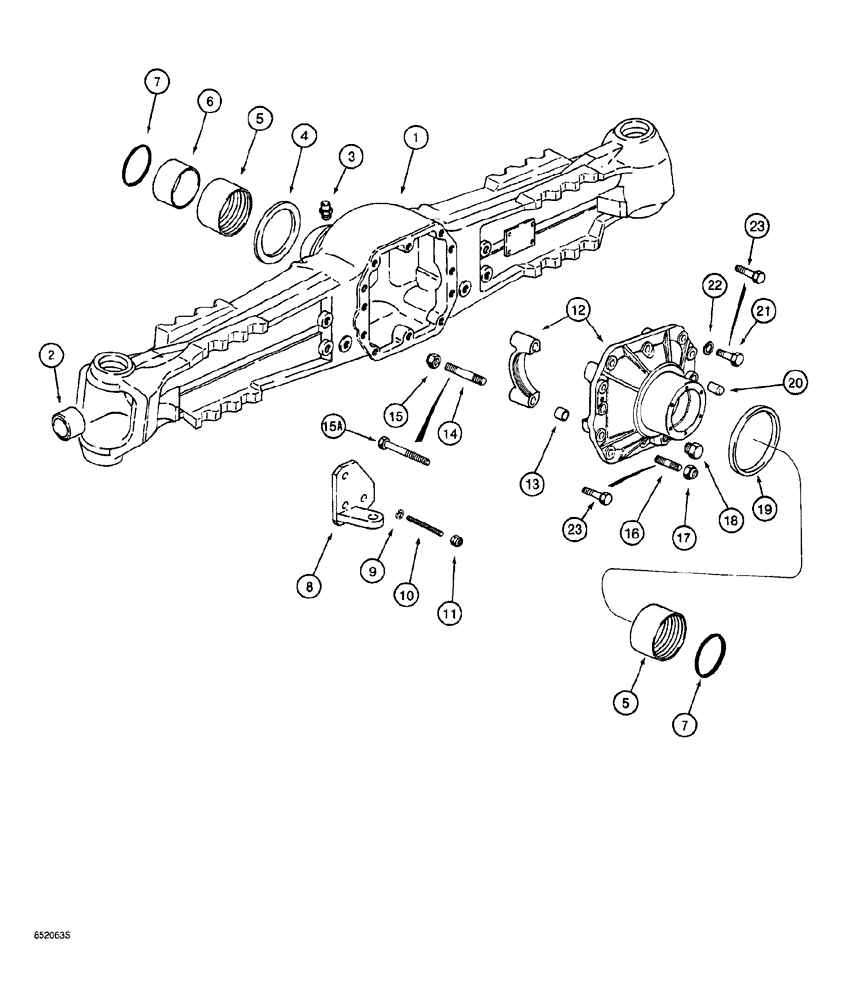

Запчасти Case 760 (06-052) - FRONT AND REAR AXLES, AXLE HOUSING (23) - FOUR WHEEL DRIVE SYSTEM

H669895

AXLE

ASSEMBLY, front, also includes parts listed on Figs. 6-54 - 6-66, Includes: Ref. 1 - 23

1шт.

H672080

AXLE

ASSEMBLY, rear, also includes parts listed on Figs. 6-54 - 6-66, Includes: Ref. 1 - 23

1шт.

1

N13496

HOUSING

front or rear axles, prior to axle SN WA/1715 on H669895 front axle or WP/1717 on H672080

1шт.

1a

122263A1

HOUSING

front or rear axles, axle SN WA/1715 and after on H669895 front axle or WP/1717 and after on H672080

1шт.

2

K395019

BUSHING

housing

2шт.

3

1966149C1

BREATHER

axle housing, replaces K965231

1шт.

4

K395022

WASHER

SPACER front pivot, used with H669895 front axle

1шт.

5

K965265

BUSHING

COLLAR front pivot, used with H669895 front axle

2шт.

6

K965266

BUSHING

SLEEVE front pivot, used with H669895 front axle

1шт.

7

K965267

O-RING,0.07" Thk x 4.489" ID

front pivot, used with H669895 front axle

2шт.

8

N13501

SUPPORT

steering cylinder, left-hand

1шт.

8

N13502

SUPPORT

steering cylinder, right-hand, not shown

1шт.

9

933828R1

BELLEVILLE WASHER,M14 Bolt Size x 28.6mm OD x 1.5mm Thk

lock, special, replaces K395052

6шт.

10

N13503

STUD

bracket

6шт.

11

905873R1

NUT,M14 x 1.5, G8

hex, self-locking, special, if used

6шт.

K395118

DIFFERENTIAL

CARRIER ASSEMBLY, Includes: Ref. 12 - 15A

1шт.

12

NSS

NOT SOLD SEPARAT

CARRIER differential

1шт.

13

1966136C1

BUSHING,15mm ID x 18mm OD x 12mm L

BUSHING centering, carrier

4шт.

14

K261836

STUD

carrier, used prior to axle SN WA/1108

4шт.

15

K965250

NUT

hex, self-locking, special, 14 mm - 15, used prior to SN WA/1108

4шт.

15a

S301065

BOLT,Hex Flg, M14 x 75, 12.9

Special, axle SN WA/1108 and after to replace Ref 14 stud and Ref 15 nut

4шт.

16

K261839

STUD

carrier to housing (See Ref. 23)

7шт.

Used prior to axle SN WA/1107 on H669895 axle and prior to axle SN WP/1131 on H672080

1шт.

17

905834R1

THIN NUT,M12 x 1.25, Thin

Hex, self-locking, special (See Ref. 23)

7шт.

Used prior to axle SN WA/1107 on H669895 axle and prior to axle SN WP/1131 on H672080

1шт.

18

A156873

PLUG, DRAIN,M22 x 1.5

2шт.

19

K395023

WASHER,115.3mm ID x 145mm OD x 5mm Thk

thrust, rear pivot, used with H669895 front axle

1шт.

20

1966138C1

DOWEL

dowel, housing to carrier, replaces K965252

2шт.

21

K965926

SCREW,7/16" x 3"

special, carrier to housing (See item 23)

3шт.

Used prior to axle SN WA/1107 on H669895 axle and prior to axle SN WP/1131 on H672080

1шт.

22

892-11012

LOCK WASHER,M12

(See Ref. 23)

3шт.

Used prior to axle SN WA/1107 on H669895 axle and prior to axle SN WP/1131 on H672080

1шт.

23

5194169

BOLT,Hex Flg, M12 x 33, 12.9

Carrier to housing, axle SN WA/1107 and after on H669895

10шт.
