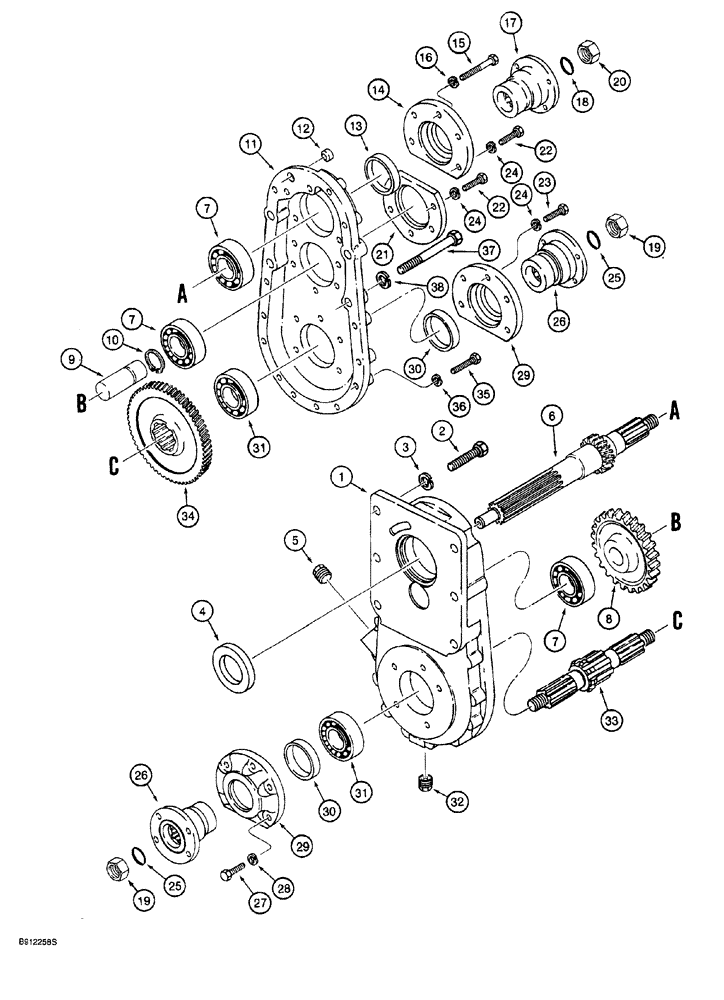

Запчасти Case 760 (06-043A) - TRANSMISSION, TRANSFER HOUSING, 101703A1 TRANSMISSION (21) - TRANSMISSION

101703A1

CASE

TRANSMISSION ASSEMBLY, complete, also includes parts listed on Figs. 6-34 - 6-38 and 6-43C, Includes: Ref. 1 - 38

1шт.

1

105529A1

HOUSING

transfer

1шт.

2

614-14035

BOLT,Hex, M14 x 2 x 35mm, Cl 8.8, Full Thd

hex, full threads, 14 - 20 x 35 mm

2шт.

3

892-11014

LOCK WASHER,14.5mm ID x 24.1mm OD x 4.5mm Thk

2шт.

4

N13439

SEAL

input shaft

1шт.

5

N13440

PLUG

hex, oil fill, transfer housing

1шт.

6

105530A1

SHAFT

input, transfer housing

1шт.

7

N13400

BALL BEARING

ball, shaft

3шт.

8

105531A1

GEAR

intermediate

1шт.

9

105532A1

PIN

intermediate gear

1шт.

10

105533A1

RING, SNAP

RING SNAP

1шт.

11

105534A1

COVER

transfer housing

1шт.

12

N13425

PLUG

cover

1шт.

13

N13426

SEAL

bearing

1шт.

14

N13427

COVER

seal, upper

1шт.

15

814-10055

BOLT,Hex, M10 x 1.5 x 55mm, Cl 8.8

1шт.

16

892-11010

LOCK WASHER,M10

1шт.

17

N13428

FLANGE

input

1шт.

18

N13429

O-RING

flange

1шт.

19

105535A1

SPECIAL NUT

special, output shaft

2шт.

20

105536A1

SPECIAL NUT

special, input shaft

1шт.

21

105539A1

COVER

intermediate shaft

1шт.

22

614-10028

BOLT,Hex, M10 x 1.5 x 28mm, Cl 8.8, Full Thd

hex, full threads, 10 - 15 x 28 mm

9шт.

23

614-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8, Full Thd

5шт.

24

892-11010

LOCK WASHER,M10

14шт.

25

N13434

O-RING

flange

2шт.

26

N13435

FLANGE

output, transmission to drive shaft

2шт.

27

614-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8, Full Thd

5шт.

28

892-11010

LOCK WASHER,M10

5шт.

29

N13436

BEARING COVER

output shaft bearing and seal

2шт.

30

N13426

SEAL

bearing

2шт.

31

N13422

NEEDLE BEARING

ball, output shaft

2шт.

32

N13407

PLUG

magnetic, housing dram

1шт.

33

N13438

SHAFT

output, transmission

1шт.

34

105540A1

GEAR

output shaft

1шт.

35

814-10040

BOLT,Hex, M10 x 1.5 x 40mm, Cl 8.8

13шт.

36

892-11010

LOCK WASHER,M10

13шт.

37

814-14100

BOLT,Hex, M14 x 2 x 100mm, Cl 8.8

Hex, M14 x 100, 8.8

4шт.

38

892-11014

LOCK WASHER,14.5mm ID x 24.1mm OD x 4.5mm Thk

4шт.
