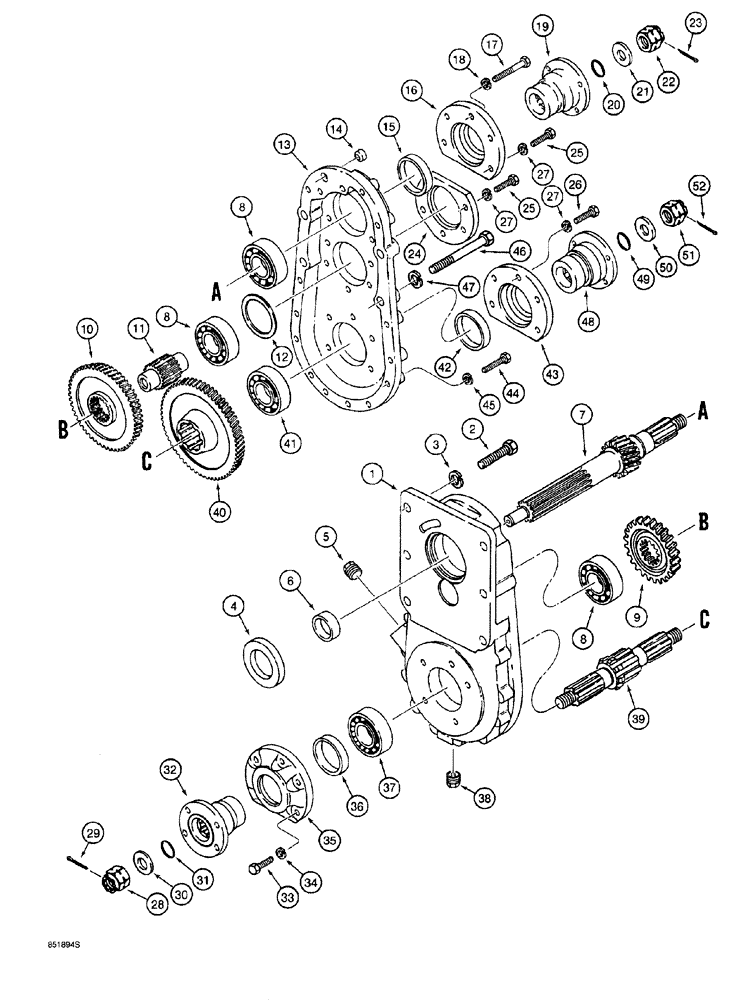

Запчасти Case 760 (06-040) - TRANSMISSION, TRANSFER HOUSING, H672364 TRANSMISSION (21) - TRANSMISSION

H672364

CASE

TRANSMISSION ASEMBLY, complete, also includes parts listed on Figs. 6-34 - 6-38 and 6-42, no longer available, order 101703A1, Includes: Ref. 1 - 52

1шт.

1

N13417

CASE

HOUSING transfer

1шт.

2

614-14035

BOLT,Hex, M14 x 2 x 35mm, Cl 8.8, Full Thd

hex, full threads, 14 - 20 x 35 mm

2шт.

3

892-11014

LOCK WASHER,14.5mm ID x 24.1mm OD x 4.5mm Thk

2шт.

4

N13439

SEAL

input shaft

1шт.

5

N13440

PLUG

hex, oil fill, transfer housing

1шт.

6

N13441

SPACER

input shaft

1шт.

7

N13418

SHAFT

input, transfer housing

1шт.

8

N13400

BALL BEARING

ball, shaft

3шт.

9

N13419

GEAR

intermediate shaft, small

1шт.

10

N13420

GEAR

intermediate shaft, large

1шт.

11

N13421

SHAFT

intermediate

1шт.

12

N13424

SHIM,.020" Thk

(0.5 mm)

2шт.

13

N13423

COVER

transfer housing

1шт.

14

N13425

PLUG

cover

1шт.

15

N13426

SEAL

bearing

1шт.

16

N13427

COVER

seal, upper

1шт.

17

814-10055

BOLT,Hex, M10 x 1.5 x 55mm, Cl 8.8

1шт.

18

892-11010

LOCK WASHER,M10

1шт.

19

N13428

FLANGE

input

1шт.

20

N13429

O-RING

flange

1шт.

21

N13430

SPACER

nut

1шт.

22

N13431

SPECIAL NUT

hex, slotted, 20 mm - 15, special

1шт.

23

733-4040

COTTER PIN,M4 x 40

1шт.

24

N13432

COVER

intermediate shaft

1шт.

25

614-10028

BOLT,Hex, M10 x 1.5 x 28mm, Cl 8.8, Full Thd

hex, full threads, 10 - 15 x 28 mm

9шт.

26

614-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8, Full Thd

5шт.

27

892-11010

LOCK WASHER,M10

14шт.

28

N13431

SPECIAL NUT

hex, slotted, 20 mm - 15, special

1шт.

29

733-4040

COTTER PIN,M4 x 40

1шт.

30

N13433

SPACER

nut

1шт.

31

N13434

O-RING

flange

1шт.

32

N13435

FLANGE

output, transmission to drive shaft

1шт.

33

614-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8, Full Thd

5шт.

34

892-11010

LOCK WASHER,M10

5шт.

35

N13436

BEARING COVER

output shaft bearing and seal

1шт.

36

N13426

SEAL

bearing

1шт.

37

N13422

NEEDLE BEARING

ball, output shaft

1шт.

38

N13407

PLUG

magnetic, housing drain

1шт.

39

N13438

SHAFT

output, transmission

1шт.

40

N13437

GEAR

output shaft

1шт.

41

N13422

NEEDLE BEARING

ball, output shaft

1шт.

42

N13426

SEAL

bearing

1шт.

43

N13436

BEARING COVER

output shaft bearing and seal

1шт.

44

814-10040

BOLT,Hex, M10 x 1.5 x 40mm, Cl 8.8

13шт.

45

892-11010

LOCK WASHER,M10

13шт.

46

814-14100

BOLT,Hex, M14 x 2 x 100mm, Cl 8.8

Hex, M14 x 100, 8.8

4шт.

47

892-11014

LOCK WASHER,14.5mm ID x 24.1mm OD x 4.5mm Thk

4шт.

48

N13435

FLANGE

output, transmission to drive shaft

1шт.

49

N13434

O-RING

flange

1шт.

50

N13433

SPACER

nut

1шт.

51

N13431

SPECIAL NUT

hex, slotted, 20 mm - 15, special

1шт.

52

733-4040

COTTER PIN,M4 x 40

1шт.
