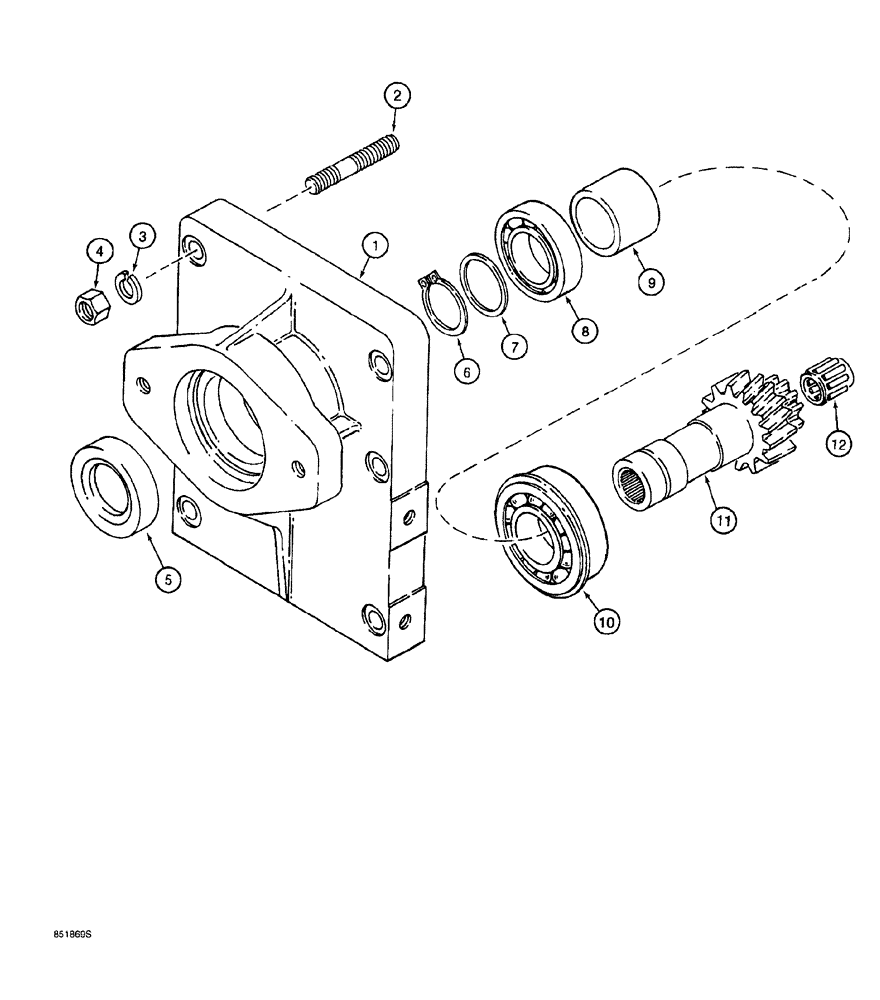

Запчасти Case 760 (06-038) - TRANSMISSION, COVER AND INPUT SHAFT (21) - TRANSMISSION

H672364

CASE

TRANSMISSION ASSEMBLY, complete, also includes parts listed on Figs. 6-34, 6-36 and 6-40 - 6-42, no longer available, order 101703A1, Includes: Ref. 1 - 12

1шт.

101703A1

CASE

TRANSMISSION ASSEMBLY, complete, also includes parts listed on Figs. 6-34, 6-36, 6-43A and 6-43C, Includes: Ref. 1 - 12

1шт.

1

N13408

COVER

transmission, motor end

1шт.

2

N13409

STUD

cover

6шт.

3

892-11014

LOCK WASHER,14.5mm ID x 24.1mm OD x 4.5mm Thk

6шт.

4

825-1414

NUT,M14, Cl 8

hex, 14 mm - 2

6шт.

5

N13416

SEAL,40mm ID x 72mm OD x 10mm Thk

shaft

1шт.

6

N13415

RING, SNAP

RING SNAP bearing retaining

1шт.

7

N13414

SHIM,0.10" Thk

(2.5 mm)

1шт.

8

N13410

BALL BEARING

ball, input shaft, small

1шт.

9

N13411

SPACER

bearing

1шт.

10

ST236

BEARING, BALL,40mm ID x 90mm OD x 23mm W

input shaft, large

1шт.

11

N13413

SHAFT

input, ground drive, Serial Range: motor-transmission

1шт.

12

N13412

NEEDLE BEARING

needle, input shaft

1шт.
