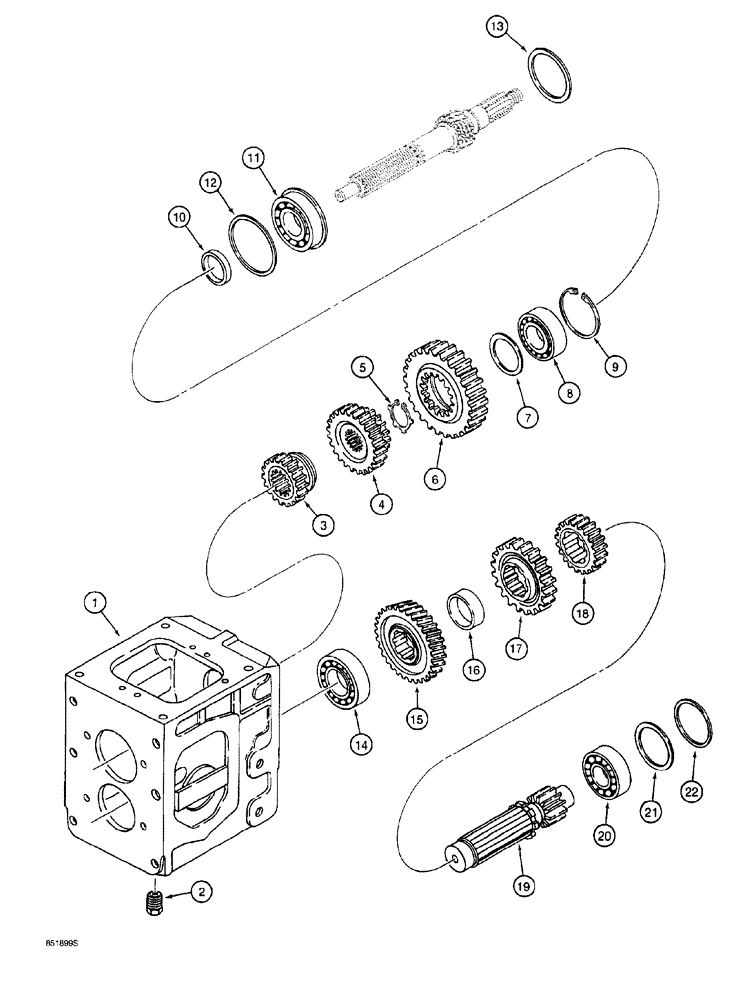

Запчасти Case 760 (06-036) - TRANSMISSION, HOUSING AND GEARS (21) - TRANSMISSION

H672364

CASE

TRANSMISSION ASSEMBLY, complete, also includes parts listed on Figs. 6-34, 6-38 - 6-42, no longer available, order 101703A1, Includes: Ref. 1 - 22

1шт.

101703A1

CASE

TRANSMISSION ASSEMBLY, complete, also includes parts listed on Figs. 6-34, 6-38, 6-43A and 6-43C, Includes: Ref. 1 - 22

1шт.

1

NSS

NOT SOLD SEPARAT

HOUSING, transmission

1шт.

2

N13407

PLUG

magnetic, housing drain

1шт.

3

N13388

GEAR

third, and high

1шт.

4

N13391

GEAR

second, input shaft

1шт.

5

N13392

RING, SNAP

RING SNAP low speed gear

1шт.

6

N13393

GEAR

low speed

1шт.

7

N13394

SHIM

BAFFLE bearing

1шт.

8

N13395

BALL BEARING

ball, input shaft, inner

1шт.

9

N13396

RING, SNAP

RING SNAP internal, ball bearing

1шт.

10

N13406

SPACER

ball bearing

1шт.

11

ST236

BEARING, BALL,40mm ID x 90mm OD x 23mm W

input shaft, outer

1шт.

12

N13405

SHIM,.012" Thk

(0.30 mm)

1шт.

13

N13402

SHIM,.004" Thk

(0.10 mm)

1шт.

13

N13403

SHIM,.0098" Thk

(0.25 mm)

1шт.

13

N13404

SHIM,.012" Thk

(0.30 mm)

1шт.

14

N13385

BALL BEARING

countershaft, inner

1шт.

15

N13386

GEAR

idler

1шт.

16

N13387

SPACER

gear

1шт.

17

N13389

GEAR

third

1шт.

18

N13390

GEAR

second, countershaft

1шт.

19

N13401

SHAFT

COUNTER transmission

1шт.

20

N13400

BALL BEARING

ball, countershaft, outer

1шт.

21

N13399

SHIM,.070" Thk

(1.8 mm)

1шт.

22

N13397

SHIM,.004" Thk

(0.10 mm)

1шт.

22

N13398

SHIM,.008" Thk

(0.20 mm)

1шт.
