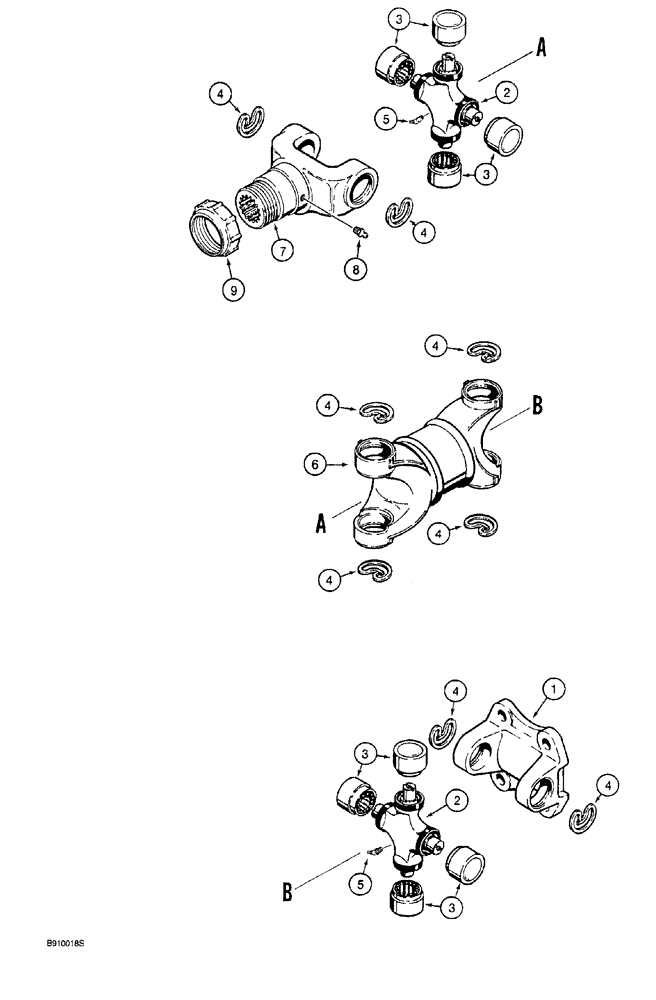

Запчасти Case 760 (06-050) - REAR DRIVE SHAFT - H673502 (14) - MAIN GEARBOX & DRIVE

H673502

DRIVE SHAFT

ASSEMBLY, rear, Neapco part No. N914386-2W, Includes: Ref. 1 - 9

1шт.

1

H436605

FORK

BRACKET flange

1шт.

H436603

KIT

universal joint, Includes: Ref. 2 - 5

2шт.

2

NSS

NOT SOLD SEPARAT

JOINT universal, drive shaft

1шт.

3

NSS

NOT SOLD SEPARAT

BEARING universal joint

4шт.

4

NSS

NOT SOLD SEPARAT

RING retaining

4шт.

5

219-37

LUBE NIPPLE,45 Degree Elbow, 1/4" - 28 NPTF

1шт.

6

H673688

SHAFT

drive, rear

1шт.

7

H436604

FORK

YOKE splined, Includes: Ref. 8

1шт.

8

219-10

LUBE NIPPLE,1/4" - 28 NPTF

straight, 1/4-28 taper x 11/16 inch

1шт.

9

NSS

NOT SOLD SEPARAT

CAP dust, seal

1шт.
