Запчасти Case 760 (06-046) - FRONT DRIVE SHAFT - H673501 (14) - MAIN GEARBOX & DRIVE

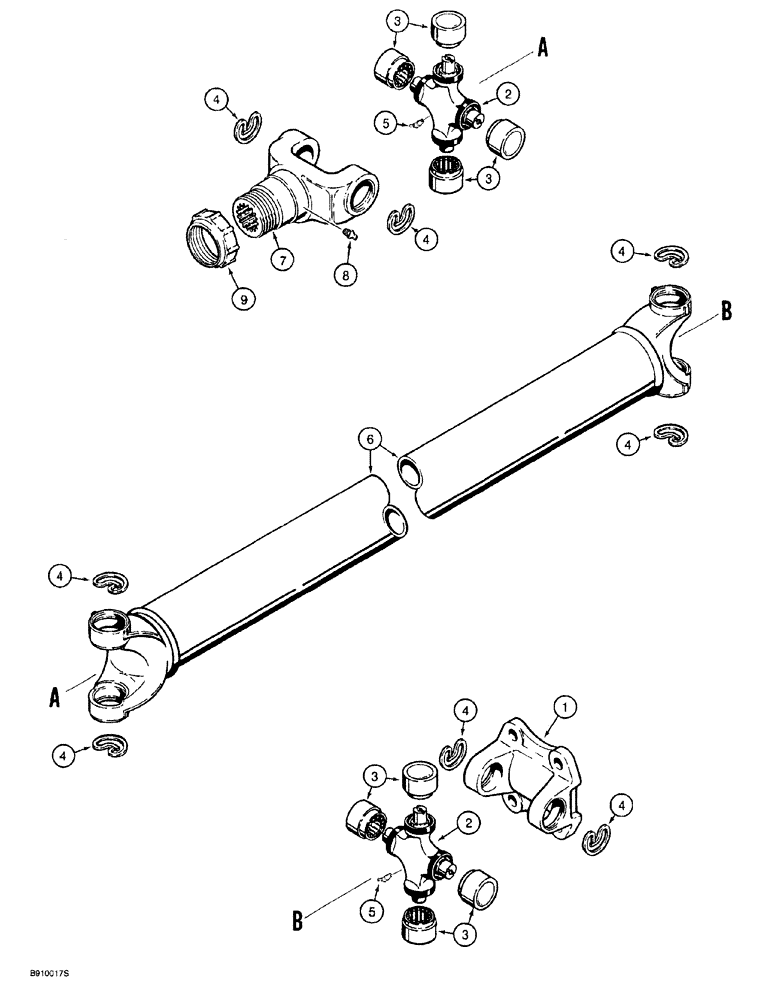

Схема запчастей Case 760 - (06-046) - FRONT DRIVE SHAFT - H673501 (14) - MAIN GEARBOX & DRIVE
2
7
9
2
6
4
4
3
5
4
4
4
5
3
3
1
3
4
4
4
8

Артикул

Название

Примечание

Количество

H673501

DRIVE SHAFT

ASSEMBLY, front, Neapco part No. N914386-1W, Includes: Ref. 1 - 9

1шт.

1

H436605

FORK

BRACKET flange

1шт.

H436603

KIT

universal joint, Includes: Ref. 2 - 5

2шт.

2

NSS

NOT SOLD SEPARAT

JOINT universal, drive shaft

1шт.

3

NSS

NOT SOLD SEPARAT

BEARING universal joint

4шт.

4

NSS

NOT SOLD SEPARAT

RING retaining

4шт.

5

219-37

LUBE NIPPLE,45 Degree Elbow, 1/4" - 28 NPTF

1шт.

6

H673687

SHAFT

drive, front

1шт.

7

H436604

FORK

YOKE splined, Includes: Ref. 8

1шт.

8

219-10

LUBE NIPPLE,1/4" - 28 NPTF

straight, 1/4-28 taper x 11/16 inch

1шт.

9

NSS

NOT SOLD SEPARAT

CAP dust, seal

1шт.

Выбрано товаров: 11
