(06-044) - FRONT DRIVE SHAFT - H672418

Запчасти Case 760 (06-044) - FRONT DRIVE SHAFT - H672418 (14) - MAIN GEARBOX & DRIVE

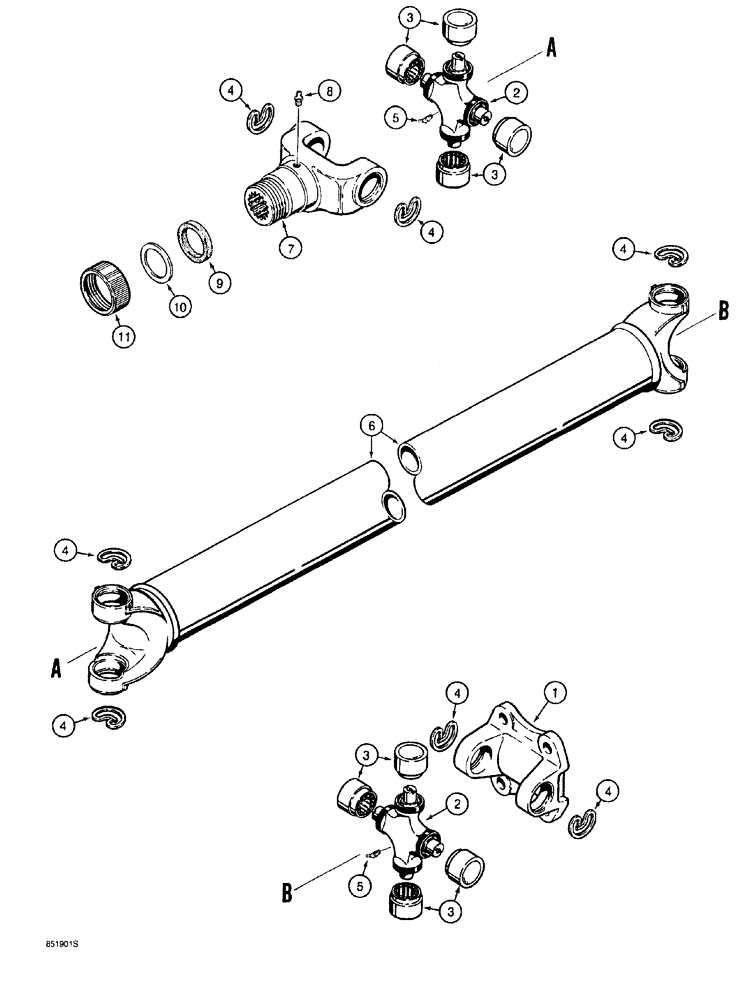

Схема запчастей Case 760 - (06-044) - FRONT DRIVE SHAFT - H672418 (14) - MAIN GEARBOX & DRIVE
3
5
2
3
10
7
4
4
4
3
4
4
5
6
1
2
4
8
4
11
4
9
3
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

H672418

DRIVE SHAFT

ASSEMBLY, drive, no longer available, order H673501, parts list Fig. 6-46, Includes: Ref. 1 - 11

1шт.

1

S80726

YOKE

UNIVERSAL JOINT YOKE BRACKET flange

1шт.

R2713

BEARING ASSY

KIT, Includes: Ref. 2 - 5

2шт.

2

NSS

NOT SOLD SEPARAT

JOINT universal, drive shaft

1шт.

3

NSS

NOT SOLD SEPARAT

BEARING universal joint

4шт.

4

NSS

NOT SOLD SEPARAT

RING retaining

4шт.

5

219-37

LUBE NIPPLE,45 Degree Elbow, 1/4" - 28 NPTF

1шт.

6

NSS

NOT SOLD SEPARAT

SHAFT drive, front

1шт.

7

N13365

YOKE

UNIVERSAL JOINT YOKE splined

1шт.

8

219-10

LUBE NIPPLE,1/4" - 28 NPTF

straight, 1/4-28 taper x 11/16 inch

1шт.

9

R13997

WASHER

dust, cork

1шт.

10

H299347

WASHER

sealing, special

1шт.

11

H299321

CAP

dust seal retaining

1шт.
