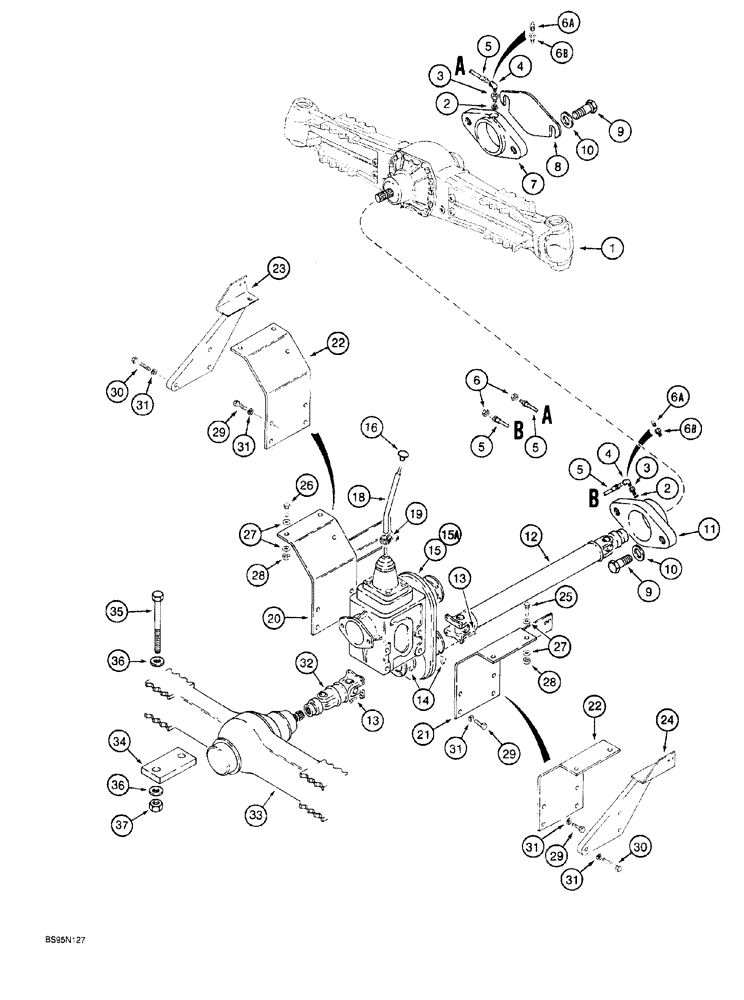

Запчасти Case 760 (06-032) - DRIVE LINE MOUNTING (14) - MAIN GEARBOX & DRIVE

1

H669895

AXLE

ASSEMBLY, front, parts list Figs. 6-52 through 6-66

1шт.

2

80679

LOCK WASHER,1/20.507 CST ZND

Used with H433961 adapter, Ref 3, if used

2шт.

3

H433961

ADAPTER

lubrication hose, used with H672421, Ref. 5, if used

2шт.

4

221-1411

ELBOW,90 Degree, 1/8"-27, NPT

ELBOW street, 90 degree, 1/8 inch PT, used with H433961 adapter, Ref. 3, if used

2шт.

5

H672421

HOSE

15-1/2 inch (394 mm) long, axle lubrication, used with H433961 adapter, Refs., if used

2шт.

6

F53473

LOCK NUT,1/8-27 NPSM

special, used with H433961 adapter, Ref. 3, if used

2шт.

6a

219-17

LUBE NIPPLE,3/16" NPTF

Used with D136218 adapter, Ref. 6B, if used

2шт.

6b

D136218

SCREW

straight, special, lubricating, if used

2шт.

7

H433408

TRUNNION

front, axle

1шт.

8

H433359

SHIM,1.52mm Thk

Axle mounting, 0.020 inch (0.5 mm) thick

1шт.

9

26026R1

BOLT,Hex, 1 1/4" - 7 x 3", Gr 8

hex, 1-14 NC x 3 inch, grade 8

4шт.

10

D43536

WASHER

flat, special, 1-1/4 inch

4шт.

11

H433407

TRUNNION

rear, axle

1шт.

12

REF

INSTRUCTION

SHAFT ASSEMBLY, drive, front, see Fig.6-44 or 6-46 for correct drive shaft and assembly

1шт.

13

414-720

BOLT,Hex, 7/16" - 20 x 1-1/4", Gr 5

hex, 7/16 NF x 1-1/4 inch

8шт.

14

232-4617

LOCK NUT,7/16"-20, GC

8шт.

15

H672364

CASE

TRANSMISSION ASSEMBLY, complete, parts list Figs. 6-34 through 6-42, no longer available, order 10

1шт.

15a

101703A1

CASE

TRANSMISSION ASSEMBLY, complete, parts list Figs. 6-36, 6-38, 6-43A, and 6-43C, not shown

1шт.

16

T34930

KNOB

lever

1шт.

18

H434433

LEVER

transmission shift, upper, see Fig. 6-34, Ref. 1, for lower transmission shift lever

1шт.

19

D71880

CLAMP,22.23mm

adjustable, includes hardware, transmission shift lever

1шт.

20

H672409

BRACKET

transmission mounting, left-hand, no longer available, replaced by (1) H433891 bracket (Ref. 22), (1) H674413 (Ref.23) and (3) 814-14055 bolts (Ref. 30)

1шт.

21

H672410

BRACKET

transmission mounting, right-hand, no longer available, replaced by (1) H433891, Ref. 22, (1) H674412, Ref. 24, bracket, and (3) 814-14055, Ref. 30, bolts

1шт.

22

H433891

BRACKET

transmission mounting, right-hand and left-hand

2шт.

23

H674413

PLATE

BRACKET mounting, parking brake caliper, left-hand

1шт.

24

H674412

PLATE

BRACKET mounting, parking brake caliper, right-hand

1шт.

25

413-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5

2шт.

26

413-832

BOLT,Hex, 1/2" - 13 x 2", Gr 5

2шт.

27

496-21053

WASHER,17/32" x 1 1/16" x .134"

Hardened

8шт.

28

230-4218

LOCK NUT,1/2"-13, GA

hex, self-locking, 1/2 inch NC

4шт.

29

614-14030

BOLT,Hex, M14 x 2 x 30mm, Cl 8.8, Full Thd

2-8шт.

30

814-14055

BOLT,Hex, M14 x 2 x 55mm, Cl 8.8

P.I.N. JAF0049580 and after

6шт.

31

892-11014

LOCK WASHER,14.5mm ID x 24.1mm OD x 4.5mm Thk

8шт.

32

REF

INSTRUCTION

SHAFT ASSEMBLY, drive, rear, see Fig. 6-48 or 6-50 for correct assembly and components

1шт.

33

H672080

AXLE

ASSEMBLY, rear, parts list Fig. 6-52 through 6-66

1шт.

34

H432690

BAR

SUPPORT rear axle

2шт.

35

413-16160

BOLT,Hex, 1" - 8 x 10", Gr 5

hex, 1 NC x 10 inch

4шт.

36

D36505

WASHER,26.99mm ID x 47.63mm OD x 2.38mm Thk

flat, special

8шт.

37

232-41116

LOCK NUT,1"-8, GC

4шт.
