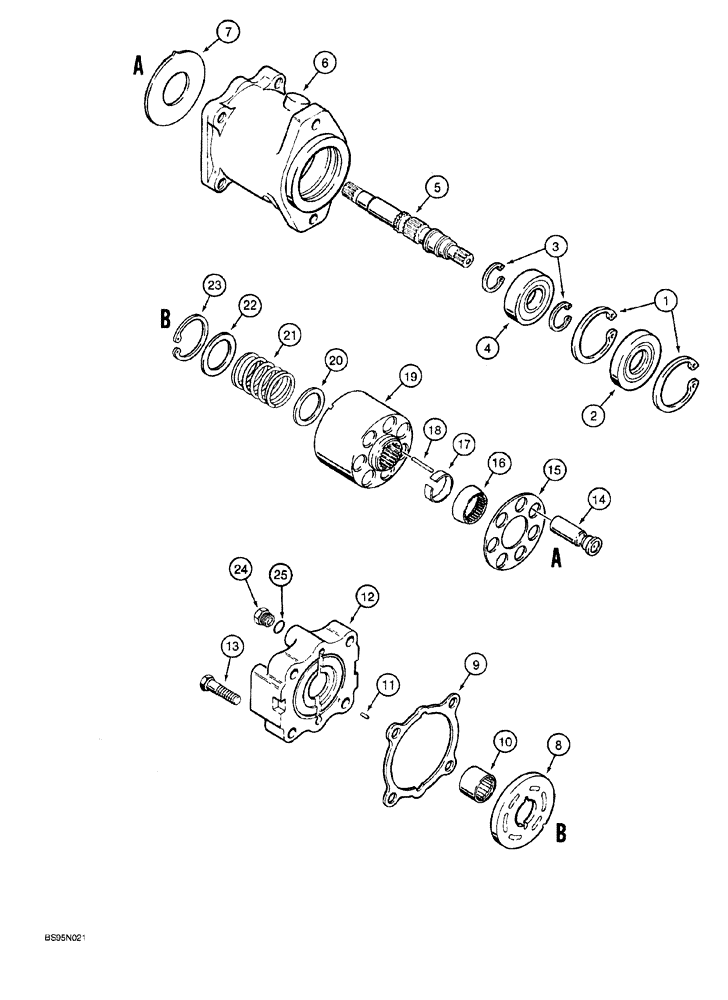

Запчасти Case 760 (06-028) - GROUND DRIVE AND PLOW MOTOR - H673911 (14) - MAIN GEARBOX & DRIVE

H673911

HYDRAULIC MOTOR

ASSEMBLY, ground drive and plow, Sundstrand Part No. M46-3023, Includes: Ref. 1 - 25

1-2шт.

1

103-21281

SNAP RING,66.92mm ID x 2.36mm W, Int

Seal

2шт.

2

N14103

SEAL

1шт.

3

100-11137

SNAP RING,#137, Ext

Bearing

2шт.

4

A29183

BALL BEARING,34.99mm ID x 71.99mm OD x 16.94mm W

ball, shaft

1шт.

5

124176A1

SHAFT

motor

1шт.

6

NSS

NOT SOLD SEPARAT

HOUSING motor

1шт.

7

N14617

WASHER

PLATE thrust, piston

1шт.

8

N13197

PLATE

wear

1шт.

9

N13198

GASKET

cover

1шт.

10

1277297C1

NEEDLE BEARING

needle, shaft

1шт.

11

38-11207

LOCK PIN,4.76mm OD x 11.11mm L, Slotted

1шт.

12

100422A1

PLUG

CAP end

1шт.

13

413-836

BOLT,Hex, 1/2" - 13 x 2-1/4", Gr 5

4шт.

115952A1

SET

BLOCK ASSEMBLY, cylinder, Includes: Ref. 14 - 25

1шт.

14

NSS

NOT SOLD SEPARAT

PISTON cylinder block

7шт.

15

NSS

NOT SOLD SEPARAT

RETAINER piston

1шт.

16

115942A1

GUIDE

retainer

1шт.

17

115943A1

SNAP RING

RING retaining, guide

1шт.

18

110873A1

PIN,2.38mm OD x 33.53mm L

Retaining, Serial Range: guide-shaft

3шт.

19

115944A1

CYLINDER BLOCK

1шт.

20

115946A1

WASHER

WASHER spring, block end

1шт.

21

115948A1

SPRING

cylinder block

1шт.

22

115950A1

WASHER

WASHER spring, cover end

1шт.

23

NSS

NOT SOLD SEPARAT

RING snap, spring

1шт.

24

214389

PLUG,3/4" - 16 ORB

Drain ports, Includes Ref. 25

2шт.

25

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.
