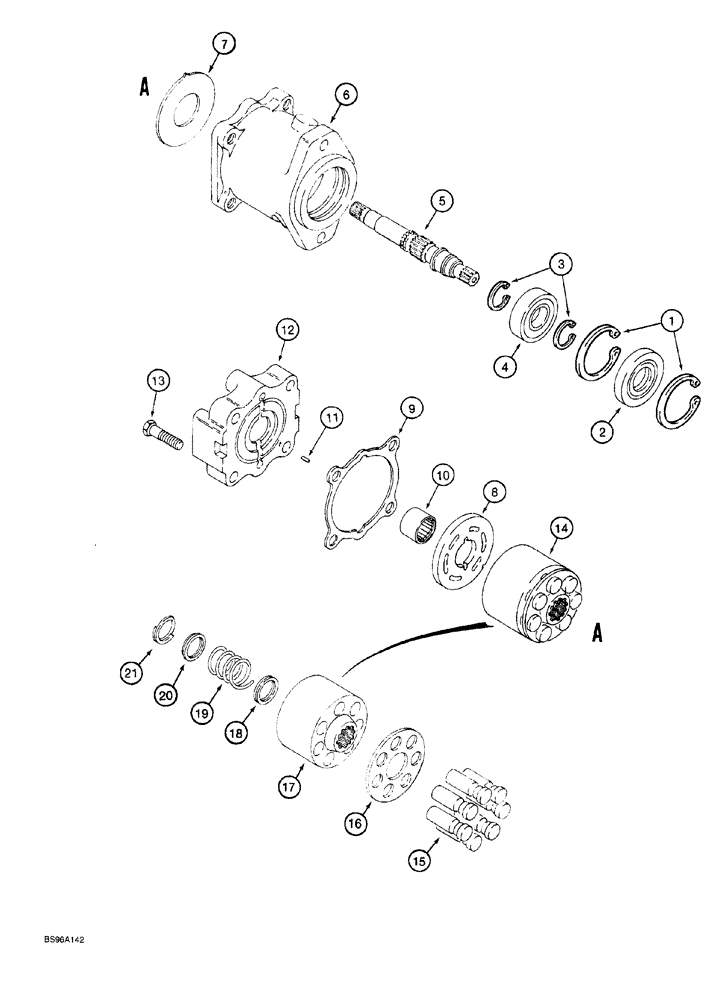

Запчасти Case 760 (06-026) - GROUND DRIVE AND PLOW MOTOR - H672436 (14) - MAIN GEARBOX & DRIVE

H672436

MOTOR

ASSEMBLY, ground drive and plow, Sundstrand part No. M46-3002, no longer available, order H673911 motor, parts list Fig. 6-28, Includes: Ref. 1 - 21

1-2шт.

1

103-21281

SNAP RING,66.92mm ID x 2.36mm W, Int

Seal

2шт.

2

N14103

SEAL

shaft

1шт.

3

100-11137

SNAP RING,#137, Ext

Bearing

2шт.

4

A29183

BALL BEARING,34.99mm ID x 71.99mm OD x 16.94mm W

ball, shaft

1шт.

5

N13478

SHAFT

motor

1шт.

6

NSS

NOT SOLD SEPARAT

HOUSING motor

1шт.

7

N13195

PLATE

thrust, piston

1шт.

8

N13197

PLATE

wear

1шт.

9

N13198

GASKET

cover

1шт.

10

1277297C1

NEEDLE BEARING

needle, shaft

1шт.

11

38-11207

LOCK PIN,4.76mm OD x 11.11mm L, Slotted

1шт.

12

NSS

NOT SOLD SEPARAT

COVER motor

1шт.

13

413-836

BOLT,Hex, 1/2" - 13 x 2-1/4", Gr 5

4шт.

14

N13196

BLOCK

ASSEMBLY, piston, Includes: Ref. 15 - 21

1шт.

15

NSS

NOT SOLD SEPARAT

PISTON cylinder block

7шт.

16

NSS

NOT SOLD SEPARAT

PLATE piston retaining

1шт.

17

NSS

NOT SOLD SEPARAT

BLOCK cylinder

1шт.

18

115946A1

WASHER

WASHER spring, to cylinder block

1шт.

19

115948A1

SPRING

cylinder block

1шт.

20

115950A1

WASHER

WASHER spring, to retaining ring

1шт.

21

102-22162

SNAP RING,43.20mm ID, Int, Spiral

internal spiral retaining, No. 162, spring

1шт.
