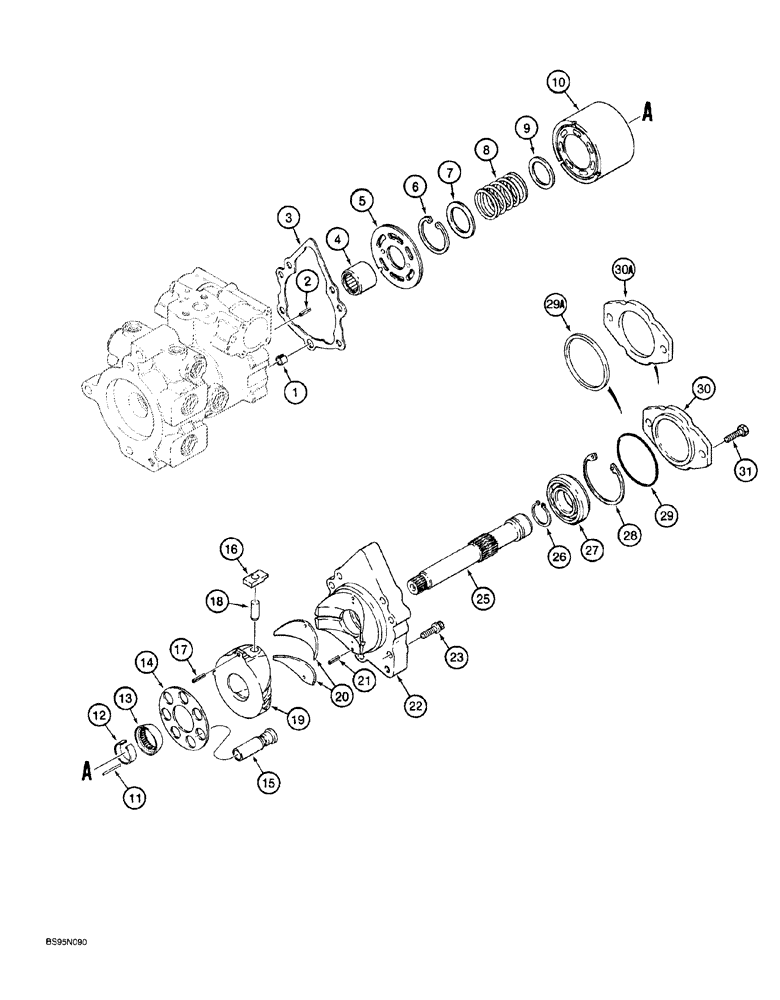

Запчасти Case 760 (06-024) - TANDEM PUMP ASSEMBLY, REAR DRIVE PUMP, CYLINDER BLOCK AND SHAFT (14) - MAIN GEARBOX & DRIVE

H673150

PUMP

ASSEMBLY, tandem, Sundstrand model No. M91-46252R, prior to P.I.N. JAF0003051, parts list Figs. 6-14 - 6-24, no longer available, order H675013 pump assembly, Includes: Ref. 1 - 31

1шт.

H673140

PUMP

ASSEMBLY, tandem, Sundstrand model No. M91-46259, P.I.N. JAF0003051 and after, parts list Figs 6-14 - 6-24, no longer available, order H675013 pump assembly, Includes: Ref. 1 - 31

1шт.

H675013

PUMP

ASSEMBLY, tandem, Sundstrand model No. M91-46429, parts list Figs 6-14 -6-24, Includes: Ref. 1 - 31

1шт.

1

N13994

SPACER

PIN roll, special, cover locating

1шт.

2

38-11207

LOCK PIN,4.76mm OD x 11.11mm L, Slotted

1шт.

3

H436704

GASKET,0.79mm Thk

cover, replaces N14064

1шт.

4

1277297C1

NEEDLE BEARING

needle, shaft

1шт.

5

N14060

LARGE PLATE

PLATE, LARGE valve, inner, cylinder block, used with H673150 and H673140 pump assemblies

1шт.

5

N14467

LARGE PLATE

PLATE, LARGE valve, inner, cylinder block, used with H675013 pump assembly

1шт.

115952A1

SET

BLOCK ASSEMBLY, cylinder, Includes: Ref. 6 - 15

1шт.

6

NSS

NOT SOLD SEPARAT

COVER charge pump

1шт.

7

115950A1

WASHER

WASHER spring, inner

1шт.

8

115948A1

SPRING

cylinder block

1шт.

9

115946A1

WASHER

WASHER spring, outer

1шт.

10

115944A1

CYLINDER BLOCK

1шт.

11

110873A1

PIN,2.38mm OD x 33.53mm L

Retaining, Serial Range: guide-shaft

3шт.

12

115943A1

SNAP RING

RING retaining, guide

1шт.

13

115942A1

GUIDE

retainer

1шт.

14

NSS

NOT SOLD SEPARAT

RETAINER piston

1шт.

15

NSS

NOT SOLD SEPARAT

PISTON cylinder block

7шт.

16

N13224

SLEEVE

RETAINER pin

1шт.

178631A1

COVER

KIT swash plate, Includes: Ref. 17 - 19

1шт.

17

138-130

LOCK PIN,1/4" x 3/4", Slotted

1шт.

18

N13254

PIN

swash plate

1шт.

19

N13988

COVER

PLATE swash, block, no longer available, order 178631A1 kit

1шт.

20

230416A1

BEARING COVER,1.36"

bearing, replaces N13990

2шт.

21

38-1806

LOCK PIN,1/8" x 3/8", Slotted

2шт.

22

N14665

COVER

rear, used with H673150 and H673140 pump assemblies

1шт.

22a

H436705

COVER

rear, not shown, used with H675013 pump assembly

1шт.

23

27279R1

12 PT SCREW,Flg, 3/8" - 16 x 1"

Used with Ref. 22, N14665 cover

6шт.

23

223677A1

SCREW,Torx, 7/16"

torx head, special, 7/16 inch, not shown, used with Ref. 22A, H436705 cover

6шт.

25

N13222

SHAFT

rear, tandem pump

1шт.

26

100-11137

SNAP RING,#137, Ext

Shaft cover, bearing

1шт.

27

A29183

BALL BEARING,34.99mm ID x 71.99mm OD x 16.94mm W

ball, rear cover

1шт.

28

103-21281

SNAP RING,66.92mm ID x 2.36mm W, Int

Rear cover, brg

1шт.

29

238-5152

O-RING,0.103" Thk x 3.237" ID, -152, Cl 5, 75 Duro

Used with H673150 and H673140 pump assemblies

1шт.

29

H438062

SHAFT SEAL

used with H675013 pump assembly

1шт.

30

N13258

PLATE

Cover, used with H673150 and H673140 pump assemblies, no longer available, order Ref. 30, H438063 and Ref. 29, H438062 O-ring

1шт.

30

H438063

LARGE PLATE

PLATE, LARGE cover, used with H675013 pump assembly

1шт.

31

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

2шт.
