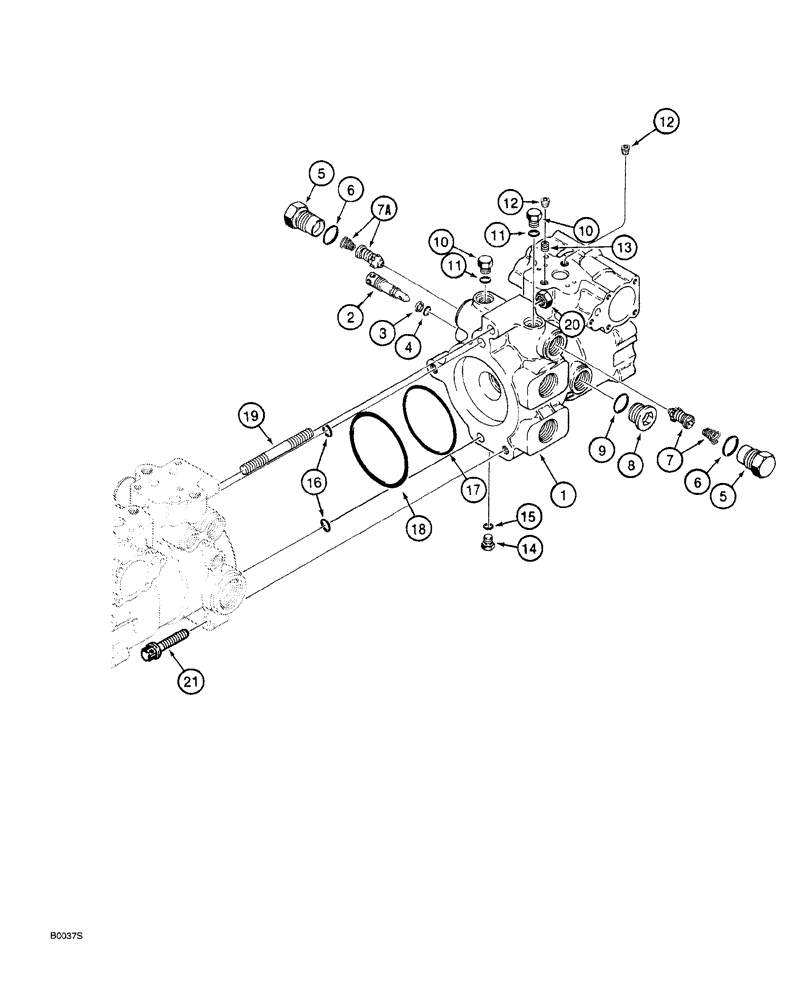

Запчасти Case 760 (06-020) - TANDEM PUMP ASSEMBLY, REAR DRIVE PUMP, HOUSING AND VALVES (14) - MAIN GEARBOX & DRIVE

H673150

PUMP

ASSEMBLY, tandem, Sundstrand model No. M91-46252R, prior to P.I.N. JAF0003051, P/L Figs. 6-14 - 6-24, no longer available, order H675013 pump assembly, Includes: Ref. 1 - 22

1шт.

H673140

PUMP

ASSEMBLY, tandem, Sundstrand model No. M91-46259, P.I.N. JAF0003051 and after, parts list Figs. 6-14 - 6-24 no longer available, order H675013 pump assembly, Includes: Ref. 1 - 22

1шт.

H675013

PUMP

ASSEMBLY, tandem, Sundstrand model No. M91-46429, parts list Figs. 6-14 - 6-24, Includes: Ref. 1 - 22

1шт.

1

NSS

NOT SOLD SEPARAT

HOUSING rear drive pump

1шт.

1

100712A1

HOUSING

rear drive pump, H675013 pump

1шт.

2

H436099

VALVE

bypass, included with H673140 and H675013 pump assemblies

1шт.

2

N14663

BY-PASS VALVE

included with H673150 pump assembly, replaces N14062

1шт.

3

S99877

BACK-UP RING,Split, 9.91mm ID x 12.65mm OD x 1.32mm Thk

backup, bypass valve

1шт.

4

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

H436101

VALVE POPPET

ASSEMBLY, relief, 5000 psi, "C" port, included with H673140 and H675013 pump assemblies, Includes: Ref. 5 - 7A

1шт.

N14464

VALVE

ASSEMBLY, relief, 5000 psi, "C" port, included with H673150 pump assembly, Includes: Ref. 5 - 7A

1шт.

N14461

VALVE

ASSEMBLY, relief, 2538 psi, "D" port, included with H673150 pump assembly, Includes: Ref. 5 - 7A

1шт.

H436100

VALVE

ASSEMBLY, relief, 2540 psi, "D" port, included with H673140 and H675013 pump assemblies, Includes: Ref. 5 - 7A

1шт.

5

N14669

PLUG

hex, special, servo, Includes: Ref. 6

2шт.

6

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

7

NSS

NOT SOLD SEPARAT

VALVE relief, 5000 PSI, "C" port, included with H673140 and H675013 pump assemblies

1шт.

7

NSS

NOT SOLD SEPARAT

VALVE relief, 5000 PSI, "C" port, included with H673150 pump assembly

1шт.

7a

NSS

NOT SOLD SEPARAT

VALVE relief, 2538 PSI, "D" port, included with H673140 and H675013 pump assemblies

1шт.

7a

NSS

NOT SOLD SEPARAT

VALVE relief, 2538 PSI, "D" port, included with H673150 pump assembly

1шт.

8

9841223

PLUG,1-1/16" - 12 ORB

Incl. Ref. 9

1шт.

9

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

10

76349

PLUG,9/16" - 18 ORB

Incl. Ref. 11

2шт.

11

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

12

F23137

PLUG

pipe, special

2шт.

13

H435774

PLUG

orifice

1шт.

14

9672438

PLUG,7/16" - 20 ORB

Incl. Ref. 15

1шт.

15

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

1шт.

16

238-6116

O-RING,0.103" Thk x 0.737" ID, -116, Cl 6, 90 Duro

Rear housing, small

2шт.

17

238-6238

O-RING,0.139" Thk x 3.484" ID, -238, Cl 6, 90 Duro

Rear housing

1шт.

18

D41420

O-RING,0.07" Thk x 3.989" ID, -45, Cl 5, 75 Duro

rear housing to front housing, used with H673150 and H673140 pump assemblies

1шт.

18

H437190

O-RING

rear housing to front housing, used with H675013 pump assembly

1шт.

19

K608432

STUD,1/2" - 13 x 4-1/2"

lifting bracket

1шт.

20

425-108

NUT,1/2" - 13, Gr 5

1шт.

21

26044R1

12 PT SCREW,Flg, 1/2" - 13 x 2"

12 point flange, 1/2 NC x 2 inch, grade 8

2шт.

22

NSS

NOT SOLD SEPARAT

BRACKET lifting, not shown

1шт.
