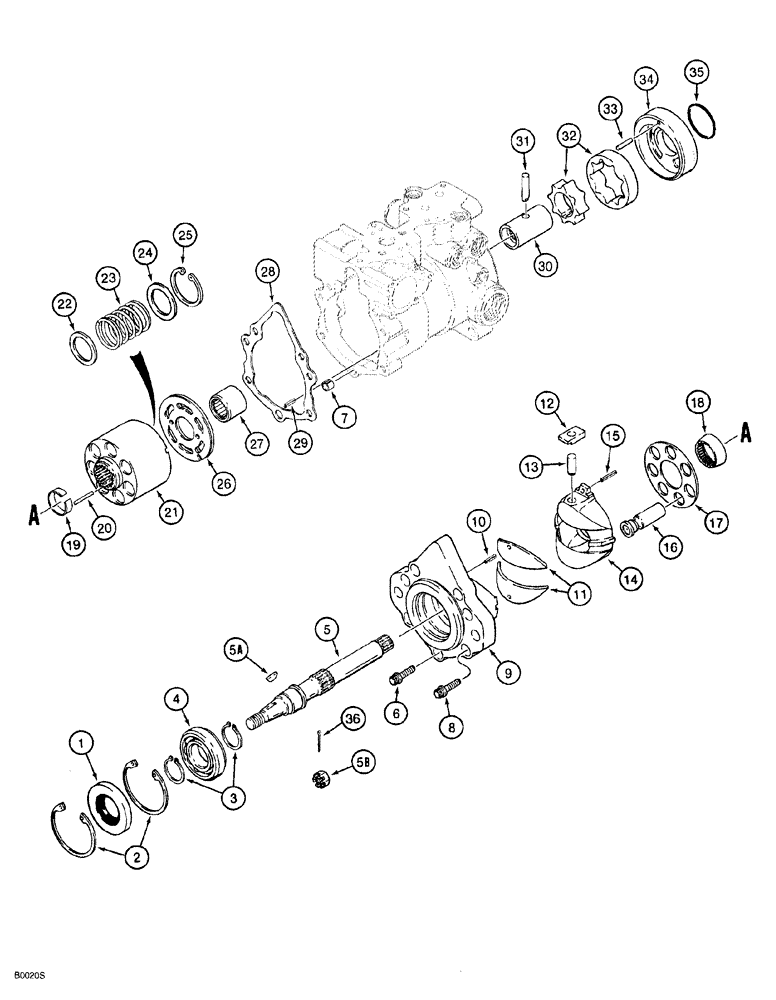

Запчасти Case 760 (06-018) - TANDEM PUMP ASSY FRONT DRIVE PUMP CYLINDER BLOCK & SHAFT (14) - MAIN GEARBOX & DRIVE

H673150

PUMP

ASSEMBLY, tandem, Sundstrand model No. M91-46252R, prior to P.I.N. JAF0003051, parts list Figs. 6-14 - 6-24, Includes: Ref. 1 - 35

1шт.

H673140

PUMP

ASSEMBLY, tandem, Sundstrand model No. M91-46259, P.I.N. JAF0003051 and after, parts list Figs. 6-14 - 6-24, Includes: Ref. 1 - 35

1шт.

H675013

PUMP

ASSEMBLY, tandem, Sundstrand model No. M91-46429, parts list Figs. 6-14 - 6-24, Includes: Ref. 1 - 35

1шт.

1

N14103

SEAL

bearing

1шт.

2

103-21281

SNAP RING,66.92mm ID x 2.36mm W, Int

Brg

2шт.

3

100-11137

SNAP RING,#137, Ext

Shaft, bearing

2шт.

4

A29183

BALL BEARING,34.99mm ID x 71.99mm OD x 16.94mm W

front cover

1шт.

5

N13483

SHAFT

front, tandem pump

1шт.

5a

126-21

WOODRUFF KEY,#A, 1/4" x 7/8"

1шт.

5b

425-1312

SLOTTED NUT,3/4"-16, G5

hex, 3/4 inch NF

1шт.

6

27279R1

12 PT SCREW,Flg, 3/8" - 16 x 1"

Used with Ref. 9, N13991 cover

6шт.

6a

223677A1

SCREW,Torx, 7/16"

torx head, special, 7/16 inch, not shown, used with Ref. 9A, H436703 cover

6шт.

7

N13994

SPACER

PIN roll, special, cover locating

1шт.

8

N14479

12 PT SCREW

12 point, 3/8 NC x 1-1/8 inch

2шт.

9

N13991

COVER

front, used with H673150 and H673140 pump assemblies

1шт.

9a

H436703

COVER

front, used with H675013 pump assembly

1шт.

10

38-1806

LOCK PIN,1/8" x 3/8", Slotted

2шт.

11

230416A1

BEARING COVER,1.36"

bearing

2шт.

12

N13224

SLEEVE

RETAINER pin

1шт.

178631A1

COVER

KIT swash plate, Includes: Ref. 13 - 15

1шт.

13

N13254

PIN

swash plate

1шт.

14

N13988

COVER

PLATE swash, block, no longer available, order 178631A1 kit

1шт.

15

138-130

LOCK PIN,1/4" x 3/4", Slotted

1шт.

115952A1

SET

BLOCK ASSEMBLY, cylinder, Includes: Ref. 16 - 25

1шт.

16

NSS

NOT SOLD SEPARAT

SPRING, charge relief valve

1шт.

17

NSS

NOT SOLD SEPARAT

POPPET charge relief valve

1шт.

18

115942A1

GUIDE

retainer

1шт.

19

115943A1

SNAP RING

RING retaining, guide

1шт.

20

110873A1

PIN,2.38mm OD x 33.53mm L

Retaining, Serial Range: guide-shaft

3шт.

21

115944A1

CYLINDER BLOCK

1шт.

22

115946A1

WASHER

WASHER spring, outer

1шт.

23

115948A1

SPRING

cylinder block

1шт.

24

115950A1

WASHER

WASHER spring, inner

1шт.

25

NSS

NOT SOLD SEPARAT

RING snap, spring

1шт.

REF

INSTRUCTION

PUMP ASSEMBLY, tandem, continued from previous Fig.

1шт.

26

N14061

LARGE PLATE

PLATE, LARGE valve, used with H673150 and H673140 pump assemblies

1шт.

26

N14468

PLATE

valve, used with H675013 pump assembly

1шт.

27

1277297C1

NEEDLE BEARING

needle, shaft

1шт.

28

H436704

GASKET,0.79mm Thk

cover

1шт.

29

38-11207

LOCK PIN,4.76mm OD x 11.11mm L, Slotted

1шт.

30

N13234

COUPLING, BREAK AWAY

pump shaft

1шт.

31

N13262

PIN

coupling

1шт.

32

N13247

GEAR-SET

gerotor

1шт.

33

N13995

PIN

roll

1шт.

34

N14065

COVER

gerotor

1шт.

35

H435776

O-RING,44.04mm ID x 51.10mm OD x 7.06mm W

plate

1шт.

36

432-820

COTTER PIN,1/8" x 1 1/4"

Not included with tandem pump

1шт.
