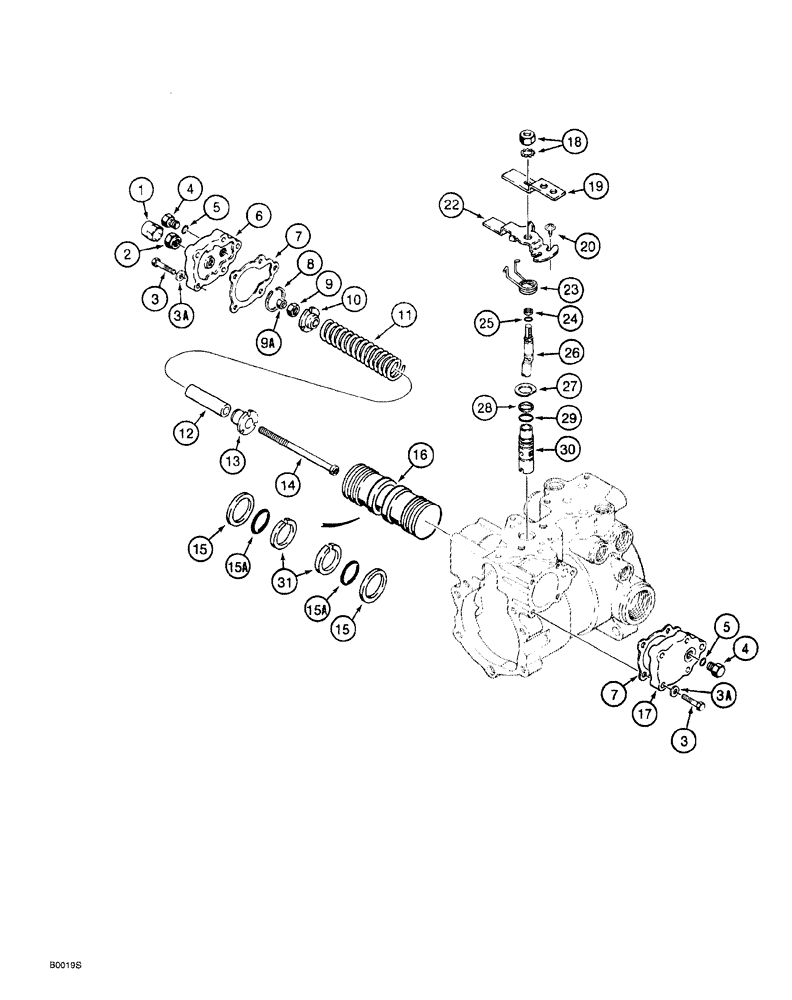

Запчасти Case 760 (06-016) - TANDEM PUMP ASSEMBLY, FRONT DRIVE PUMP, NEUTRAL START AND SERVO (14) - MAIN GEARBOX & DRIVE

H673150

PUMP

ASSEMBLY, tandem, Sundstrand model No. M91-46252R, prior to P.I.N. JAF0003051, parts list Figs 6-14 - 6-24, no longer available, order H675013 pump assy., Includes: Ref. 1 - 31

1шт.

H673140

PUMP

ASSEMBLY, tandem, Sundstrand model No. M91-46259, P.I.N. JAF0003051 and after, parts list Figs. 6-14 - 6-24, no longer available, order H675013 pump assembly, Includes: Ref. 1 - 31

1шт.

H675013

PUMP

ASSEMBLY, tandem, Sundstrand model No. M91-46429, parts list Figs 6-14 - 6-24, Includes: Ref. 1 - 31

1шт.

1

N13249

CAP

servo adjusting nut

1шт.

2

N13260

NUT,Inverted Lock

special, 5/8 inch NF, adjusting

1шт.

3

326-416

BOLT,Hex, 1/4" - 20 x 1", Gr 8

Replaced by H438321 (Ref. 3B)

10шт.

3a

NSS

NOT SOLD SEPARAT

WASHER flat, special, replaced by H438321 (Ref. 3B)

10шт.

3b

H438321

BOLT,M6 x 1 x 20mm, Cl 10.9

hex, special, 1/4 NC x 1-1/4 inch, grade 8, servo cover to pump body, not shown

10шт.

4

9672438

PLUG,7/16" - 20 ORB

Incl. Ref. 5

2шт.

5

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

1шт.

6

H436065

COVER

servo, adjusting end

1шт.

7

N14063

GASKET

servo cover

2шт.

8

N13255

RING

retaining, servo

1шт.

9

425-116

NUT,3/8" - 24, Gr 5

Hex

1шт.

9a

425-156

JAM NUT,Jam, 3/8"-24, G5

1шт.

10

N14666

GUIDE,1.292" OD

spring

1шт.

11

N13226

SPRING

servo

1шт.

12

N13242

SLEEVE

STOP servo

1шт.

13

N13241

GUIDE,1.292" OD

spring, inner

1шт.

14

N13267

SCREW

special, servo

1шт.

H673773

KIT

ring, servo piston repair, Includes: Ref. 15 and 15A

1шт.

15

N14668

RING, PISTON

servo, no longer available, order H673773 kit

2шт.

15a

238-5131

O-RING,0.103" Thk x 1.674" ID, -131, Cl 5, 75 Duro

2шт.

16

H435772

PISTON

servo

1шт.

17

H436053

COVER

servo, non-adjusting end

1шт.

18

H436054

SPECIAL NUT,Lock, 5/16" - 18

includes lock washer, special

1шт.

19

N13251

HANDLE

LEVER control

1шт.

20

H435770

FLANGE BOLT,1/4" - 20 x 5/8"

flanged head, special

2шт.

22

N13250

BRACKET

neutral

1шт.

23

N13248

SPRING,3/4" OD

Neutral

1шт.

24

S99877

BACK-UP RING,Split, 9.91mm ID x 12.65mm OD x 1.32mm Thk

backup, control spool

1шт.

25

238-5012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 5, 75 Duro

Spline end

1шт.

26

H435769

SPOOL

control, rotary

1шт.

27

N13256

WASHER

special, if used

1шт.

28

L35297

RING,16.18mm ID x 19.07mm OD x 1.42mm Thk

backup, control sleeve

1шт.

29

238-5016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 5, 75 Duro

1шт.

30

N14066

SLEEVE VALVE

control spool

1шт.

31

100536A1

BEARING WASHER,47.24mm ID x 50.34mm OD x 3.1mm Thk

RING bearing, servo piston

2шт.
