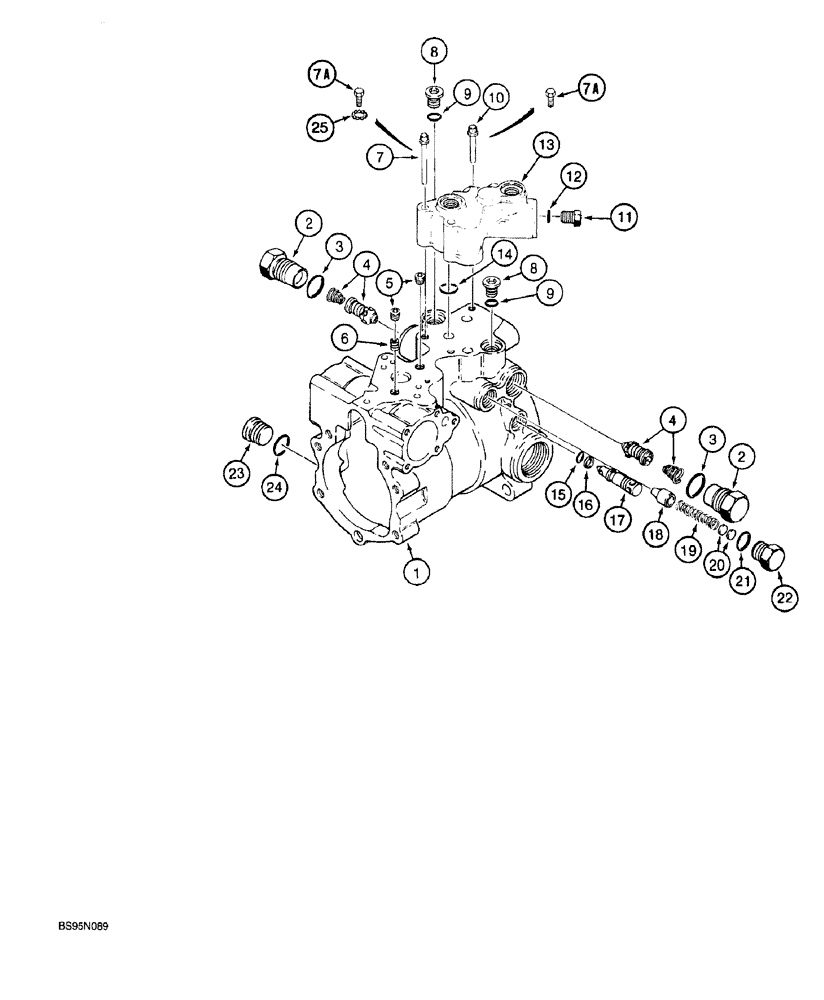

Запчасти Case 760 (06-014) - TANDEM PUMP ASSEMBLY, FRONT DRIVE PUMP, HOUSING AND VALVES (14) - MAIN GEARBOX & DRIVE
№
Артикул
Название
Примечание
Количество
H673150
PUMP
ASSEMBLY, tandem, Sundstrand model No. M91-46252, prior to P.I.N. JAF0003051, parts list Figs. 6 - 14 - 6 - 24, no longer available, order H675013 pump assembly
1шт.
H673140
PUMP
ASSEMBLY, tandem, Sundstrand model No. M91-46259, P.I.N. JAF0003051 and after, parts list Figs. 6-14 - 6-24 no longer available, order H675013 pump assembly
1шт.
H675013
PUMP
ASSEMBLY, tandem, Sundstrand model No. M91-46429, parts list Figs. 6-14 -6-24
1шт.
1
NSS
NOT SOLD SEPARAT
HOUSING front drive pump, Includes: Ref. 2 - 25 and valve assys. below
1шт.
N14848
VALVE, PRESSURE RELI
EF ASSEMBLY, 4350 psi, "A" and "B" ports, used with H673140 and H675013 pump assemblies, Includes: Ref. 2 - 4
2шт.
N14462
KIT
VALVE ASSEMBLY, relief, 4060 psi, "A" and "B" ports, used with H673150 pump assembly, Includes: Ref. 2 - 4
2шт.
2
NSS
NOT SOLD SEPARAT
PLUG hex head, special, Includes: Ref. 3
1шт.
3
237-6012
O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro
1шт.
4
NSS
NOT SOLD SEPARAT
VALVE relief, pump
1шт.
5
F23137
PLUG
pipe, special
2шт.
6
H435773
PLUG
orifice
1шт.
7
166-31
12 PT SCREW,Flg, 5/16" - 18 x 2 1/4", Gr 8
2шт.
Used with H673150 and H673150 pump assemblies
1шт.
7a
413-516
BOLT,Hex, 5/16" - 18 x 1", Gr 5
3шт.
Used with H675013 pump assembly
1шт.
8
9625178
PLUG,9/16" - 18 ORB
Incl. Ref. 9
2шт.
10
380-2524
12 PT SCREW,Flg, 5/16" - 18 x 1 1/2"
1шт.
Used with H673150 and H673150 pump assemblies
1шт.
11
76349
PLUG,9/16" - 18 ORB
Incl. Ref. 12
1шт.
Used with H673150 and H673150 pump assemblies
1шт.
13
N14069
ADAPTER
filter
1шт.
Used with H673150 and H673150 pump assemblies
1шт.
13a
101460A1
ADAPTER
filter, not shown
1шт.
Used with H675013 pump assembly
1шт.
14
N13987
O-RING
adapter
3шт.
Used with H673150 and H673150 pump assemblies
1шт.
14a
101461A1
SEAL
PLATE, not shown
1шт.
Used with H675013 pump assembly
1шт.
15
238-6012
O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro
1шт.
16
S99877
BACK-UP RING,Split, 9.91mm ID x 12.65mm OD x 1.32mm Thk
backup, bypass valve
1шт.
17
H436099
VALVE
bypass
1шт.
18
V38371
VALVE
POPPET relief
1шт.
19
V38370
SPRING
relief valve
1шт.
20
H407767
KIT
shim, relief valve, used with H673140 and H675013 pump assemblies
1шт.
20
H570283
SHIM
KIT, relief valve, used with H673150 pump assembly, no longer available, order H407767
1шт.
21
237-6010
O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro
1шт.
22
N13266
PLUG
hex, special
1шт.
23
9841223
PLUG,1-1/16" - 12 ORB
Incl. Ref. 24
1шт.
24
237-6012
O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro
1шт.
25
493-41033
LOCK WASHER,0.33" ID x 0.61" OD x 0.03" Thk
2шт.
Use with H675013 pump assembly
1шт.
9
237-6006
O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro
1шт.
12
237-6006
O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro
1шт.
Used with H673150 and H673150 pump assemblies
1шт.
Выбрано товаров: 44
