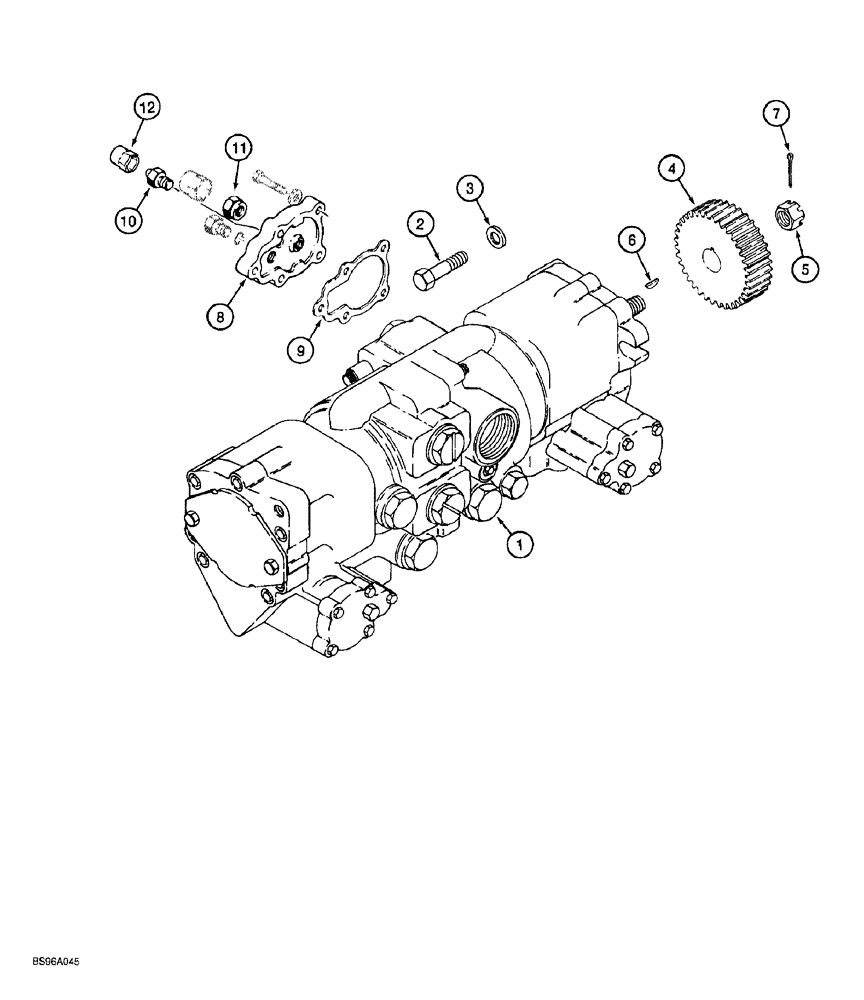

Запчасти Case 760 (06-012) - TANDEM PUMP MOUNTING (14) - MAIN GEARBOX & DRIVE

1

H673150

PUMP

ASSEMBLY, tandem, Sundstrand model No. M91-46252R, prior to P.I.N. JAF0003051, parts list Figs. 6-14 through 6-24

1шт.

1

H673140

PUMP

ASSEMBLY, tandem, Sundstrand model No. M91-46259, P.I.N. JAF0003051 and after, parts list Figs. 6-16 through 6-24

1шт.

1

H675013

PUMP

ASSEMBLY, tandem, Sundstrand model No. M91-46429, parts list Figs. 6-14 through 6-24

1шт.

2

426-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 8

2шт.

3

496-21053

WASHER,17/32" x 1 1/16" x .134"

Hardened

2шт.

4

NSS

NOT SOLD SEPARAT

GEAR driven, 8 pitch, P.I.N. JAF0049580 and after, see Fig. 2-38 for pump drive housing and components, order H674540 gear set, see note

1шт.

Matched set, drive and driven, 10 pitch

1шт.

4

NSS

NOT SOLD SEPARAT

GEAR driven, 8 pitch, P.I.N. JAF0049580 and after, see Fig. 2-38 for pump drive housing and components, order H674540 gear set, see note

1шт.

Matched set, drive and driven, 8 pitch

1шт.

5

425-1312

SLOTTED NUT,3/4"-16, G5

hex, 3/4 inch NF, included with tandem pumps

1шт.

6

126-21

WOODRUFF KEY,#A, 1/4" x 7/8"

1шт.

7

432-820

COTTER PIN,1/8" x 1 1/4"

1шт.

107596A1

KIT

stroke limiter, includes instructions, no longer available, order Refs. 8-12 shown below, mounting hardware shown on Fig. 6-22, Includes: Ref. 8 - 12

1шт.

8

H439148

COVER

servo

1шт.

9

N14063

GASKET

servo cover

1шт.

10

107213A1

CONTROL

STOP servo

1шт.

11

H439150

SPECIAL NUT

seal, special

1шт.

12

H439152

COVER

servo stop, replaces 107595A1

1шт.

H673736

GEAR-SET

matched, drive and driven, 10 pitch

1шт.

H674540

KIT

GEAR matched set, drive and driven, 8 pitch

1шт.
