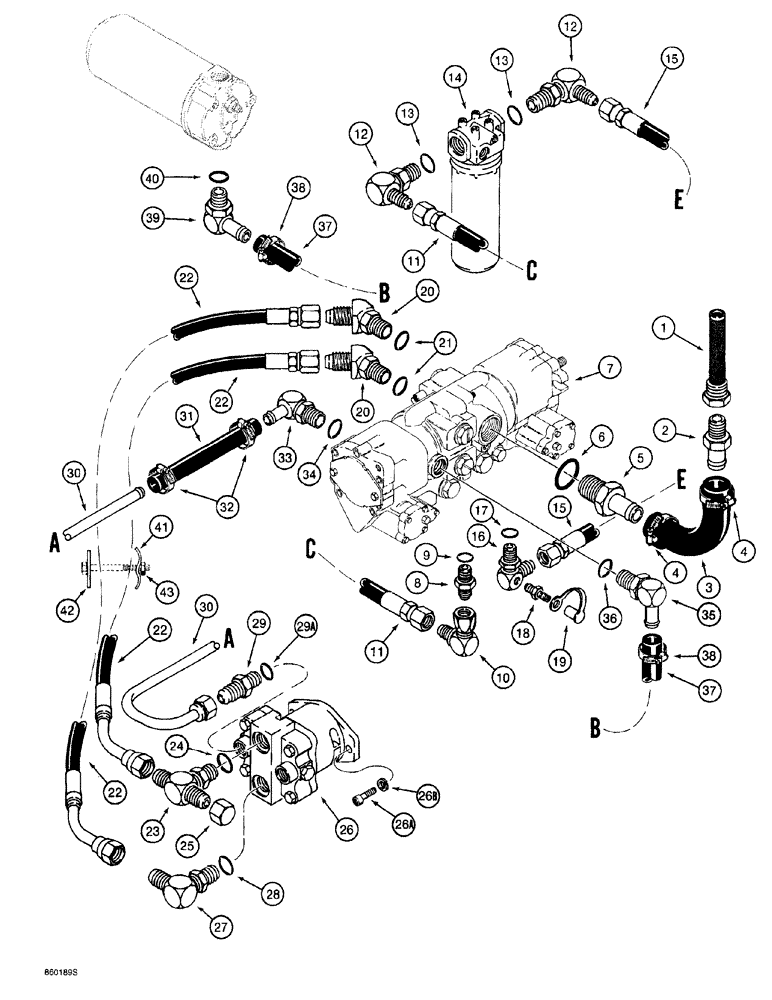

Запчасти Case 760 (06-006) - GROUND DRIVE HYDRAULIC CIRCUIT (14) - MAIN GEARBOX & DRIVE

1

H434204

BAFFLE

SCREEN suction

1шт.

2

217-157

FITTING,1-1/4" Hose Barb x 1-1/4" Male NPTF

straight, 1-1/4 inch stem end x PT

1шт.

3

H433597

HYDRAULIC HOSE,31.75 mm ID x 120.00 mm, SAE 30R6

Suction, Hydraulic oil reservoir to tandem pump

1шт.

4

214-1420

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

Adj.

2шт.

5

217-178

FITTING,1-1/4" Hose Barb x 1-5/8" - 12 Male ORB

Straight, Incl. Ref. 6

1шт.

6

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

1шт.

7

REF

INSTRUCTION

PUMP ASSEMBLY, tandem, parts list Figs. 6-14 through 6-24, see Fig. 6-12 for identification

1шт.

8

218-5065

HYD CONNECTOR,1-1/16" - 12 Male JIC x 7/8" - 14 Male ORB

Straight, O-Ring boss, Includes: Ref. 9

1шт.

9

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

10

218-5231

ELBOW,90 Degree, 1 1/16"-12, 37 Degree x 1 1/16"-12, 37 Degree Fem Sw

1шт.

11

H434466

HOSE

14-3/16 inch (360 mm) long, tandem pump to charge filter

1шт.

12

218-5118

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

Adj. O-ring boss, Includes: Ref. 13

2шт.

13

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

1шт.

14

D131330

FILTER, ENGINE OIL

FILTER, OIL ASSEMBLY, hydraulic, charge, parts list Fig. 6-30

1шт.

See Fig. 6-11 for hydraulic oil charge filter mounting

1шт.

15

H433604

HOSE

15-3/4 inch (400 mm) long, charge filter to tandem pump

1шт.

16

H434005

FITTING

ELBOW 90 degree, special, Includes: Ref. 17

1шт.

17

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

18

H434164

COUPLING

quick check, steering diagnostic device

1шт.

19

H434163

DUST CAP

1шт.

20

218-5140

45 ELBOW,45 Degree Elbow, 1-5/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

ELBOW, 45 degree, 1-5/16-12 inch flare x adj. O-ring boss, Includes: Ref. 21

2шт.

21

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

1шт.

22

H434074

HOSE

52-3/4 inch (1340 mm) long, tandem pump to ground drive motor

2шт.

23

218-5187

TEE,1-5/16" - 12 Male JIC x 1-5/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

1-5/16-12 inch adj. O-ring branch x flare x flare, Includes: Ref. 24

1шт.

24

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

1шт.

25

218-758

CAP,37 Degree, 1 5/16"-12

CAP hex, 1-5/16-12 inch

1шт.

26

REF

INSTRUCTION

MOTOR ASSEMBLY, ground drive, see Figs. 6-26 and 6-28 for correct assembly and components, mounts to transmission cover on Fig. 6-38

1шт.

26a

864-12040

HEX SOC SCREW,M12 x 40mm, Cl 8.8

hex socket, 12-1.75 x 40 mm

2шт.

26b

80679

LOCK WASHER,1/20.507 CST ZND

2шт.

27

218-5110

ELBOW,90 Degree Elbow, 1-5/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

Adjustable, Incl. Ref. 27

1шт.

28

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

1шт.

29

218-5353

HYD CONNECTOR,1 1/16"-12, 37 Degree x 3/4"-16, O-Ring

Straight, Includes Ref 29A

1шт.

29a

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

30

H672252

TUBE

ground drive motor to tandem pump

1шт.

31

H309054

HOSE

10-1/2 inch (267 mm) long, cut from H379214 bulk hose, ground drive motor drain, see below

1шт.

32

214-1412

HOSE CLAMP,#12, 0.69" - 1.25", Type F Worm

2шт.

33

217-351

FITTING,90 Degree Elbow, 3/4" Hose Barb x 1-1/16" - 12 Male ORB

Case drain hose to tandem pump, Incl. Ref. 34

1шт.

34

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

35

217-366

FITTING,90 Degree Elbow, 1" Hose Barb x 1-1/16" - 12 Male ORB

Includes Ref. 36

1шт.

36

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

37

H434444

HYDRAULIC HOSE,25.40 mm ID x 585.00 mm, SAE 30R2 Type 2

Cut from A160026 bulk hose, Tandem pump to return filter, See below

1шт.

38

214-1420

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

Adj.

2шт.

39

217-352

FITTING,90 Degree Elbow, 1" Hose Barb x 1-5/16" - 12 Male ORB

90 degree, 1 stem end x 1-5/16-12 inch adj O-ring boss, Includes: Ref. 40

1шт.

40

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

1шт.

41

H231878

CLAMP

ground drive loop hoses, uses existing battery mounting bracket bolt, see Fig. 4-12 or 4-14

1шт.

42

H433609

GUIDE

BAR hose mounting

1шт.

43

230-4218

LOCK NUT,1/2"-13, GA

hex, self-locking, 1/2 inch NC, used with Refs. 41 and 42

1шт.

H379214

HYDRAULIC HOSE,19.00 mm ID x 5588.00 mm Bulk, SAE 30R2

Use to make Ref. 31

1шт.

A160026

HOSE,1.00" ID x 77.00", SAE 30R2 TYPE 1 PER SAE J30

Bulk, Used to make Ref. 37

1шт.
