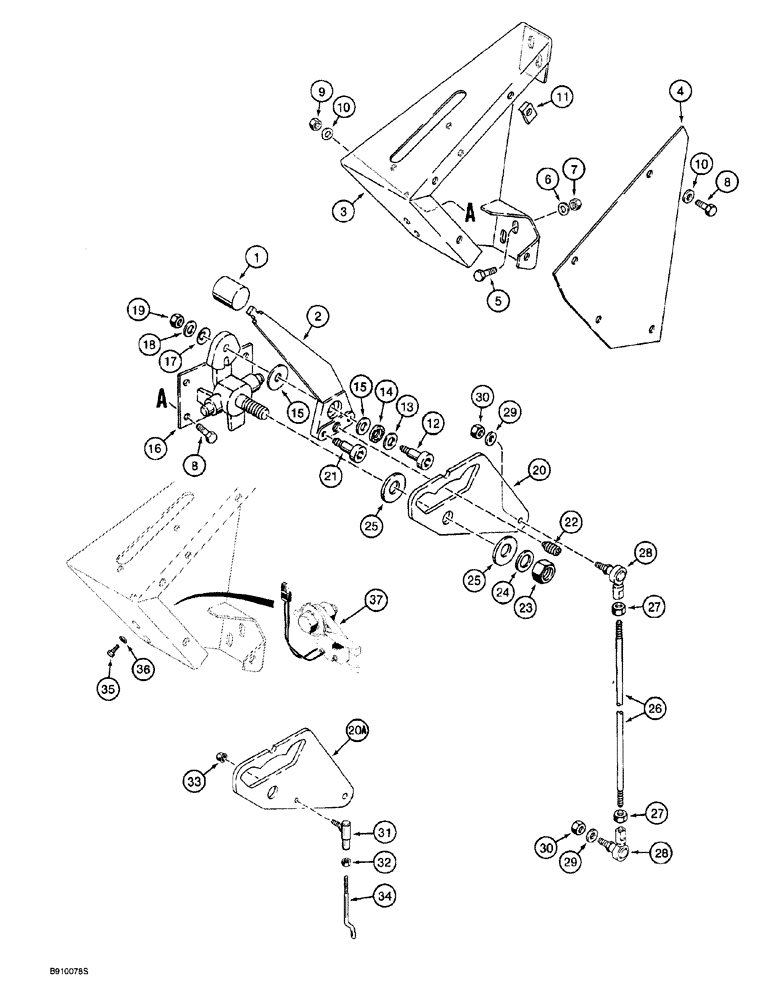

Запчасти Case 760 (06-002) - GROUND DRIVE CONTROLS, CREEP CONTROL LEVER (14) - MAIN GEARBOX & DRIVE
№
Артикул
Название
Примечание
Количество
1
A177435
BALL KNOB
lever
1шт.
2
H672342
HANDLE
LEVER creep control
1шт.
3
H672217
BRACKET
CONSOLE creep control
1шт.
4
H420810
COVER
console
1шт.
5
413-612
BOLT,Hex, 3/8" - 16 x 3/4", Gr 5
4шт.
6
496-21041
WASHER,13/32" x 13/16" x .089", HDN
4шт.
7
230-4216
LOCK NUT,3/8"-16, GA
4шт.
8
413-512
BOLT,Hex, 5/16" - 18 x 3/4", Gr 5
8шт.
9
230-4215
NUT,5/16"-18, GA
4шт.
10
H426775
WASHER
flat, special, hardened
8шт.
11
H346650
NUT
U-type, 5/16 inch NC
4шт.
12
H404822
BOLT
shoulder, special
1шт.
13
H405035
BEARING WASHER
WASHER thrust, bearing
2шт.
14
H405043
BEARING WASHER,12.75mm ID x 23.55mm OD x 1.98mm Thk
thrust, creep control lever
1шт.
15
1342383C1
FRICTION WASHER
friction, creep control lever, replaces H429894 friction disc
1шт.
16
H672156
PIVOT
BRACKET, creep control lever
1шт.
17
D33544
WASHER
SPRING, Belleville, creep control lever
1шт.
18
496-21041
WASHER,13/32" x 13/16" x .089", HDN
1шт.
19
230-4216
LOCK NUT,3/8"-16, GA
1шт.
20
H433871
PLATE
CAM, creep control, used on units with neutral start switch at tandem pump
1шт.
20a
H436190
PLATE
CAM, creep control, used on units with neutral start switch at creep control console
1шт.
These parts are used on units with P.I.N. JAF0022965 and after. They are components of H673628 neutral start kit which is available for units prior to P.I.N. JAF0022965, Kit also includes item 6A and items 29 through 35 on Fig. 9-42, items 20 through 25 on Fig. 4-30 and instruction sheet 8-76511.
1шт.
21
H404822
BOLT
shoulder, special
1шт.
22
H404731
GUIDE
lever tension
1шт.
23
230-42112
LOCK NUT,3/4"-10, GA
hex, self-locking, 3/4 inch NC
1шт.
24
495-11081
WASHER,3/4", SAE
1шт.
25
H433170
WASHER
flat, nylon, special
2шт.
26
H433459
STEM
ROD creep control
1шт.
28
H289652
BALL JOINT,5/16" - 24 x 1-3/8" L
JOINT, female, 5/16 inch NF, creep control rod
2шт.
29
495-11034
WASHER,5/16", SAE
(flat, 11/32 x 11/16 x 1/16")
2шт.
30
232-4615
LOCK NUT,5/16"-24, GC
2шт.
31
L12437
BALL JOINT,#10 - 32 x 7/8"
cam, Serial Range: plate-rod
1шт.
This part used on units w/P.I.N. JAF0022965 and after. They are components of H673628 Neutral Start Kit which is available for units prior to P.I.N. JAF0022965. Kit also includes Ref. 20A & Refs. 31 - 37 on Fig. 6-2, 20 - 25 on Fig. 4-30 & instruction sheet 8-76511
1шт.
31
L12437
BALL JOINT,#10 - 32 x 7/8"
cam, Serial Range: plate-rod
1шт.
This part used on units w/P.I.N. JAF0022965 and after. They are components of H673628 Neutral Start Kit which is available for units prior to P.I.N. JAF0022965. Kit also includes Ref. 20A & Refs. 31 - 37 on Fig. 6-2, 20 - 25 on Fig. 4-30 & instruction sheet 8-76511
1шт.
This part used on units w/P.I.N. JAF0022965 and after. They are components of H673628 Neutral Start Kit which is available for units prior to P.I.N. JAF0022965. Kit also includes Ref. 20A & Refs. 31 - 37 on Fig. 6-2, 20 - 25 on Fig. 4-30 & instruction sheet 8-76511
1шт.
33
193-1000
NUT,Keps, w/LW,#10-32
hex, with external tooth lock washer, No. 10 NF
1шт.
This part used on units w/P.I.N. JAF0022965 and after. They are components of H673628 Neutral Start Kit which is available for units prior to P.I.N. JAF0022965. Kit also includes Ref. 20A & Refs. 31 - 37 on Fig. 6-2, 20 - 25 on Fig. 4-30 & instruction sheet 8-76511
1шт.
34
H435816
ROD
ball joint to switch actuator
1шт.
This part used on units w/P.I.N. JAF0022965 and after. They are components of H673628 Neutral Start Kit which is available for units prior to P.I.N. JAF0022965. Kit also includes Ref. 20A & Refs. 31 - 37 on Fig. 6-2, 20 - 25 on Fig. 4-30 & instruction sheet 8-76511
1шт.
35
413-516
BOLT,Hex, 5/16" - 18 x 1", Gr 5
2шт.
This part used on units w/P.I.N. JAF0022965 and after. They are components of H673628 Neutral Start Kit which is available for units prior to P.I.N. JAF0022965. Kit also includes Ref. 20A & Refs. 31 - 37 on Fig. 6-2, 20 - 25 on Fig. 4-30 & instruction sheet 8-76511
1шт.
36
H426775
WASHER
flat, special, hardened
2шт.
This part used on units w/P.I.N. JAF0022965 and after. They are components of H673628 Neutral Start Kit which is available for units prior to P.I.N. JAF0022965. Kit also includes Ref. 20A & Refs. 31 - 37 on Fig. 6-2, 20 - 25 on Fig. 4-30 & instruction sheet 8-76511
1шт.
37
H673443
SWITCH
ASSEMBLY, neutral start, parts list Fig. 9-44
1шт.
This part used on units w/P.I.N. JAF0022965 and after. They are components of H673628 Neutral Start Kit which is available for units prior to P.I.N. JAF0022965. Kit also includes Ref. 20A & Refs. 31 - 37 on Fig. 6-2, 20 - 25 on Fig. 4-30 & instruction sheet 8-76511
1шт.
Выбрано товаров: 48
