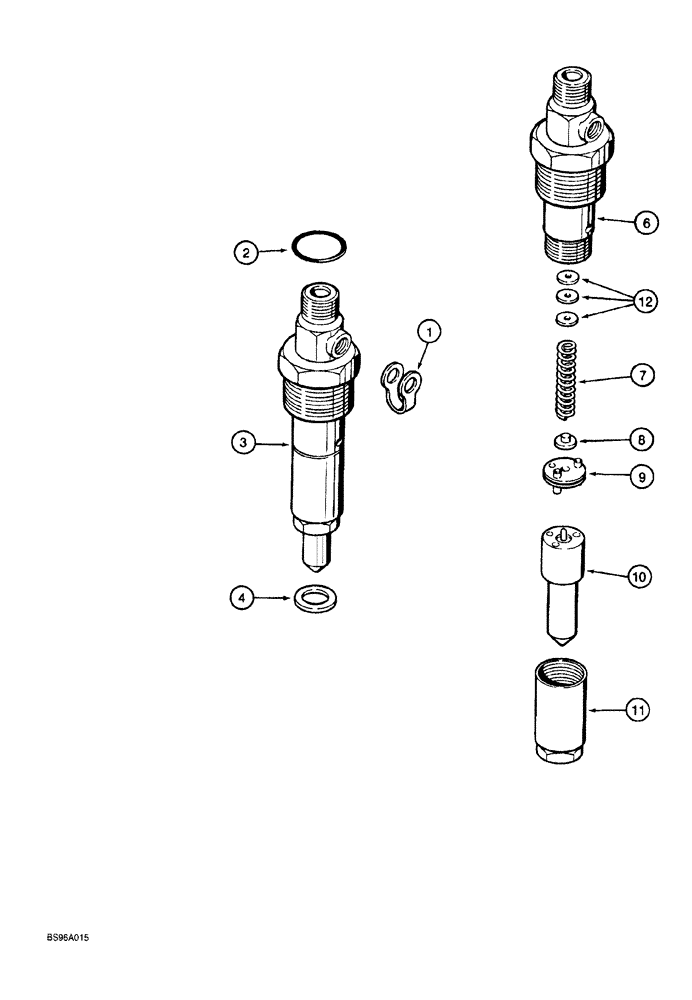

Запчасти Case 760 (03-012) - FUEL INJECTION NOZZLE - 9 MM TIP, 4-390 ENGINE (10) - ENGINE

1

J903380

SEAL

connector

4шт.

2

J913994

O-RING

sealing, replaces J903927

4шт.

3

J914472

NOZZLE INJECTION

ASSEMBLY, fuel, new, Includes: Ref. 4 - 12

4шт.

3

JR914472

REMAN-INJECT NOZZLE

REMAN-INJECTION NOZZLE component parts shown on this Figure do not apply to the remanufactured assembly, Includes: Ref. 1 - 12

4шт.

3

JC914472

CORE-INJECTION PUMP

RETURN NUMBER, use this part number to return injector core for credit when using a remanufactured assembly

4шт.

4

J900808

SEAL

injector nozzle, 9 mm tip

4шт.

Whenever a nozzle is removed from the cylinder head, J900808 gasket must be replaced before nozzle is installed in cylinder head

1шт.

6

NSS

NOT SOLD SEPARAT

BODY injector

1шт.

7

J905152

SPRING

nozzle pressure

1шт.

8

J905153

SPINDLE

SEAT nozzle pressure spring

1шт.

9

J905154

PLATE

STOP nozzle valve

1шт.

10

NSS

NOT SOLD SEPARAT

TIP nozzle injector

1шт.

11

A48201

NUT

cap, nozzle tip

1шт.

A48186

KIT

shim, nozzle opening pressure, starter kit, use one shim of the thickness required, Includes: Ref. 12

1шт.

12

1806233C1

SHIM,1.00mm Thk

Nozzle (5 in kit)

1шт.

12

1806234C1

SHIM,1.04mm Thk

Nozzle (5 in kit)

1шт.

12

1806235C1

SHIM,1.08mm Thk

Nozzle (5 in kit)

1шт.

12

1806236C1

SHIM,1.10mm Thk

Nozzle (5 in kit)

1шт.

12

1806237C1

SHIM,1.14mm Thk

Nozzle (5 in kit)

1шт.

12

1806238C1

SHIM,1.18mm Thk

Nozzle (5 in kit)

1шт.

12

1806239C1

SHIM,1.20mm Thk

Nozzle (5 in kit)

1шт.

12

1806240C1

SHIM,1.24mm Thk

Nozzle (5 in kit)

1шт.

12

1806241C1

SHIM,1.28mm Thk

Nozzle (5 in kit)

1шт.

12

1806242C1

SHIM,1.30mm Thk

Nozzle (5 in kit)

1шт.

12

1806243C1

SHIM,1.34mm Thk

Nozzle (5 in kit)

1шт.

12

1806244C1

SHIM,1.38mm Thk

Nozzle (5 in kit)

1шт.

12

1806245C1

SHIM,1.40mm Thk

Nozzle (5 in kit)

1шт.

12

1806246C1

SHIM,1.44mm Thk

Nozzle (5 in kit)

1шт.

12

1806247C1

SHIM,1.48mm Thk

Nozzle (5 in kit)

1шт.

12

1806248C1

SHIM,1.50mm Thk

Nozzle (5 in kit)

1шт.

12

1806249C1

SHIM,1.54mm Thk

Nozzle (5 in kit)

1шт.

12

1806250C1

SHIM,1.58mm Thk

Nozzle (5 in kit)

1шт.

12

1806251C1

SHIM,1.60mm Thk

Nozzle (5 in kit)

1шт.

12

1806252C1

SHIM,1.64mm Thk

Nozzle (5 in kit)

1шт.

12

1806253C1

SHIM,1.68mm Thk

Nozzle (5 in kit)

1шт.

12

1806254C1

SHIM,1.70mm Thk

Nozzle (5 in kit)

1шт.

12

1806255C1

SHIM,1.74mm Thk

Nozzle (5 in kit)

1шт.

12

1806256C1

SHIM,1.78mm Thk

Nozzle (5 in kit)

1шт.

12

1806257C1

SHIM,1.80mm Thk

Nozzle (5 in kit)

1шт.

12

1806258C1

SHIM,1.84mm Thk

Nozzle (5 in kit)

1шт.

12

1806259C1

SHIM,1.88mm Thk

Nozzle (5 in kit)

1шт.

12

1806260C1

SHIM,1.90mm Thk

Nozzle (5 in kit)

1шт.

12

1806261C1

SHIM,1.94mm Thk

Nozzle (5 in kit)

1шт.

12

1806262C1

SHIM,1.98mm Thk

Nozzle (5 in kit)

1шт.
