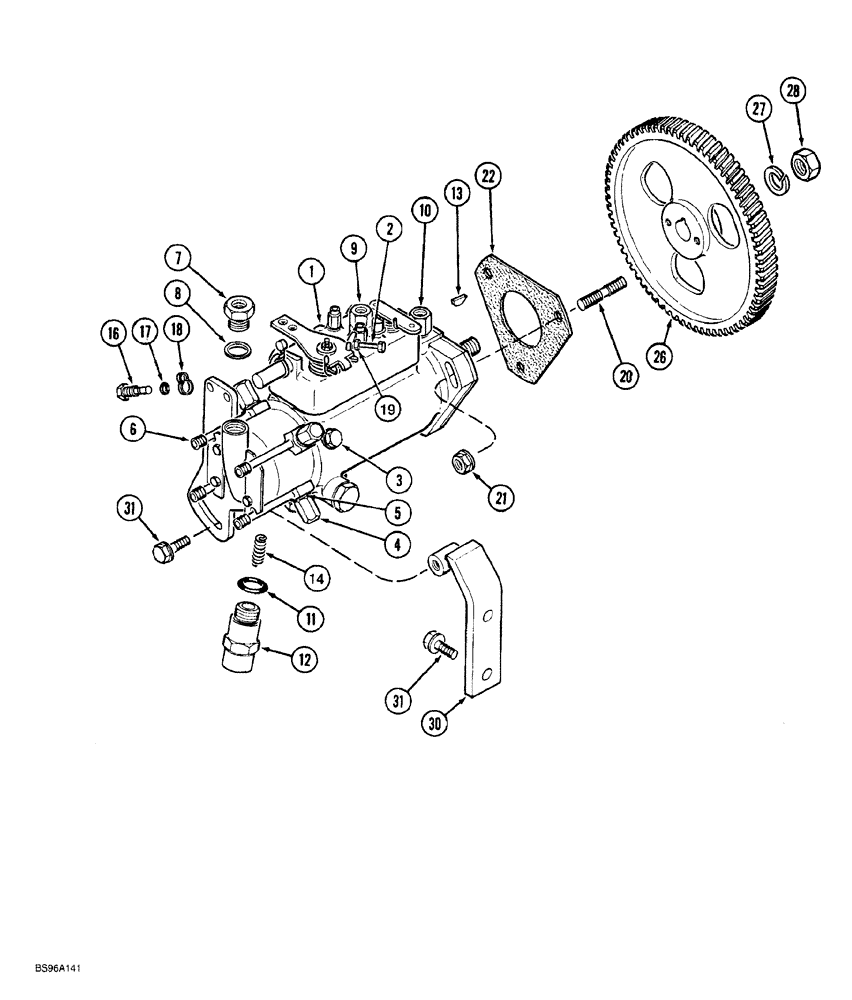

Запчасти Case 760 (03-010) - FUEL INJECTION PUMP AND DRIVE, 4-390 ENGINE (10) - ENGINE

1

J915882

PUMP, FUEL INJECTION

PUMP, INJECTION ASSEMBLY, fuel, replaces J908645, Includes: Ref. 2 - 19

1шт.

1

JR915882

REMAN-INJECTION PUMP

Assembly, fuel inj. remanufactured,component parts shown on this Figure do not apply to the remanufactured assy. replaces JR908645 remanufactured pump

1шт.

1

JC915882

CORE-INJECTION PUMP

Return Part Number, use this part number to return pump core for credit when using a remanufactured Assembly. replaces JR908645 remanufactured pump

1шт.

2

J904637

SET SCREW

adjusting, low idle

1шт.

3

K963867

SCREW

bleed, pump head

1шт.

4

J904646

BANJO BOLT

BOLT banjo

4шт.

5

J904644

WASHER

sealing

9шт.

6

K962755

ADAPTER

banjo

4шт.

7

J904641

FITTING

inlet

1шт.

8

K962748

WASHER

inlet fitting, copper

1шт.

9

J904640

VENT

ORIFICE bleed

1шт.

10

J904643

FITTING

return

1шт.

11

J904635

O-RING

solenoid

1шт.

12

J904630

SOLENOID

shut down, 12 volt

1шт.

13

126-112

WOODRUFF KEY,#6, 5/32" x 5/8", HT

Pump gear

1шт.

14

J904777

SPRING

plunger

1шт.

16

J904778

BOLT

hex, special, locking device

1шт.

17

J904780

SEAL

locking bolt

1шт.

18

J904779

WASHER

locking, special

1шт.

19

131-1144

LOCK NUT,Jam, #10 - 24

self-locking, No. 10 NF

1шт.

20

J902501

STUD

STUD pump mounting, 8 - 1.25 x 48 mm

3шт.

21

J900589

NUT

hex flange, special, 8 mm

3шт.

22

J914389

GASKET

pump mounting

1шт.

26

J920594

PINION

GEAR pump drive, replaces J914912 and J912885

1шт.

27

192-24

LOCK WASHER,9/16"

1шт.

28

J903738

NUT

hex, special, 14 mm - 20

1шт.

30

J905387

BRACE

fuel pump

1шт.

31

845-8020

BOLT,Hvy Hex, M8 x 20mm, Cl 8.8

3шт.
