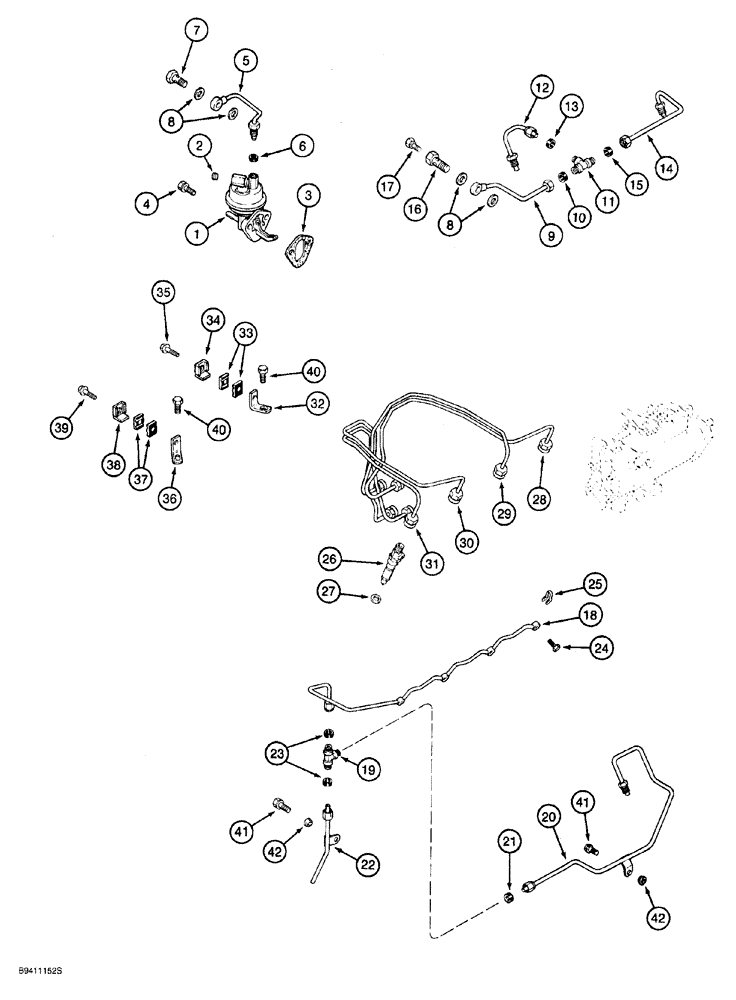

Запчасти Case 760 (03-006) - FUEL INJECTION SYSTEM, 4-390 ENGINE (10) - ENGINE

1

J904374

PUMP

lift, fuel

1шт.

2

221-841

PLUG

hex socket, 1/4 inch PT

1шт.

3

J923054

GASKET

mounting, fuel transfer pump, replaces J914304

1шт.

4

845-8020

BOLT,Hvy Hex, M8 x 20mm, Cl 8.8

2шт.

5

J905649

FUEL TUBE,8 mm OD x 233.5 mm L

ASSEMBLY, fuel supply, lift pump to filter, Includes: Ref. 6

1шт.

6

222-101

SLEEVE,3/16" Tube

3/16 inch tube O.D.

1шт.

7

J903035

BANJO BOLT

hex, 12-15 x 24 mm

1шт.

8

J918191

PACKING RING

sealing, special, 12 x 18 x 1 mm, replaces J903037

4шт.

9

J905364

FUEL TUBE

ASSEMBLY, fuel supply, filter to tee, Includes: Ref. 10

1шт.

10

222-103

SLEEVE,5/16" Tube

1шт.

11

J905353

TEE

9/16 inch NF (remove and discard nuts before assembly)

1шт.

12

J905375

FUEL TUBE,8 mm OD x 137.6 mm L

fuel supply, tee to rear of injection pump, Includes: Ref. 13

1шт.

13

222-103

SLEEVE,5/16" Tube

1шт.

14

J905363

FUEL TUBE,8 mm OD x 256.8 mm L

fuel supply, tee to front of injection pump, Includes: Ref. 15

1шт.

15

222-103

SLEEVE,5/16" Tube

1шт.

J905860

BANJO BOLT

ASSEMBLY, banjo hex, special, Includes: Ref. 16 and 17

1шт.

16

NSS

NOT SOLD SEPARAT

BOLT connector, banjo hex special

1шт.

17

NSS

NOT SOLD SEPARAT

SCREW hex special, vent

1шт.

18

J909695

FUEL TUBE

TUBE manifold, fuel dram

1шт.

19

222-121

TEE,3/16", Flex Tubing

(Remove and discard nuts before assembly)

1шт.

20

J925882

FUEL TUBE,4.76 mm OD x 662.1 mm L

fuel return, tee to pump, Includes: Ref. 21

1шт.

21

222-103

SLEEVE,5/16" Tube

1шт.

22

J905692

FUEL TUBE

fuel return, tee to tank, Includes: Ref. 23

1шт.

23

222-101

SLEEVE,3/16" Tube

3/16 inch tube O.D.

1шт.

24

J905307

BANJO BOLT,M6 x 1 x 14.30mm

Drain, Special

4шт.

25

J903380

SEAL

connector

4шт.

26

REF

INSTRUCTION

INJECTOR ASSEMBLY, fuel, 9 mm tip, see Fig. 3-12

4шт.

26

REF

INSTRUCTION

INJECTOR ASSEMBLY, fuel, 7mm tip, see Fig. 3-14

4шт.

27

REF

INSTRUCTION

SEAL injector, nozzle with 9 mm tip, see Fig. 3-12

4шт.

27

REF

INSTRUCTION

SEAL injector, nozzle with 7 mm tip, see Fig. 3-14

4шт.

28

J903522

FUEL TUBE,2 mm ID x 6.4 mm OD x 643.1 mm L

fuel injector, No. 1 cylinder

1шт.

29

J903523

FUEL TUBE,2 mm ID x 6.4 mm OD x 645.3 mm L

fuel, No. 2 cylinder

1шт.

30

J903524

FUEL TUBE

fuel injector, No. 3 cylinder

1шт.

31

J903525

FUEL TUBE

fuel injector, No. 4 cylinder

1шт.

32

J919294

SUPPORT

BRACKET fuel tube

1шт.

33

J917746

CLAMP

fuel tube

2шт.

34

J904711

SUPPORT

BRACKET fuel tube

1шт.

35

J920854

CAPTIVE WASHER SCREW,HWH, M5 x 0.8 x 24.5mm, Cl 8.8

1шт.

36

J919292

SUPPORT

BRACKET fuel tube

1шт.

37

J917746

CLAMP

fuel tube

2шт.

38

CURJ904711

CLAMP

BRACKET fuel tube

1шт.

39

J920854

CAPTIVE WASHER SCREW,HWH, M5 x 0.8 x 24.5mm, Cl 8.8

1шт.

40

J904341

BOLT,M6 x 1 x 35mm, Cl 8.8

hex, special

2шт.

41

J900629

FLANGE BOLT,Hvy Hex, M8 x 16mm, Cl 8.8

2шт.

42

J900267

SEAL

cover bolt

2шт.
