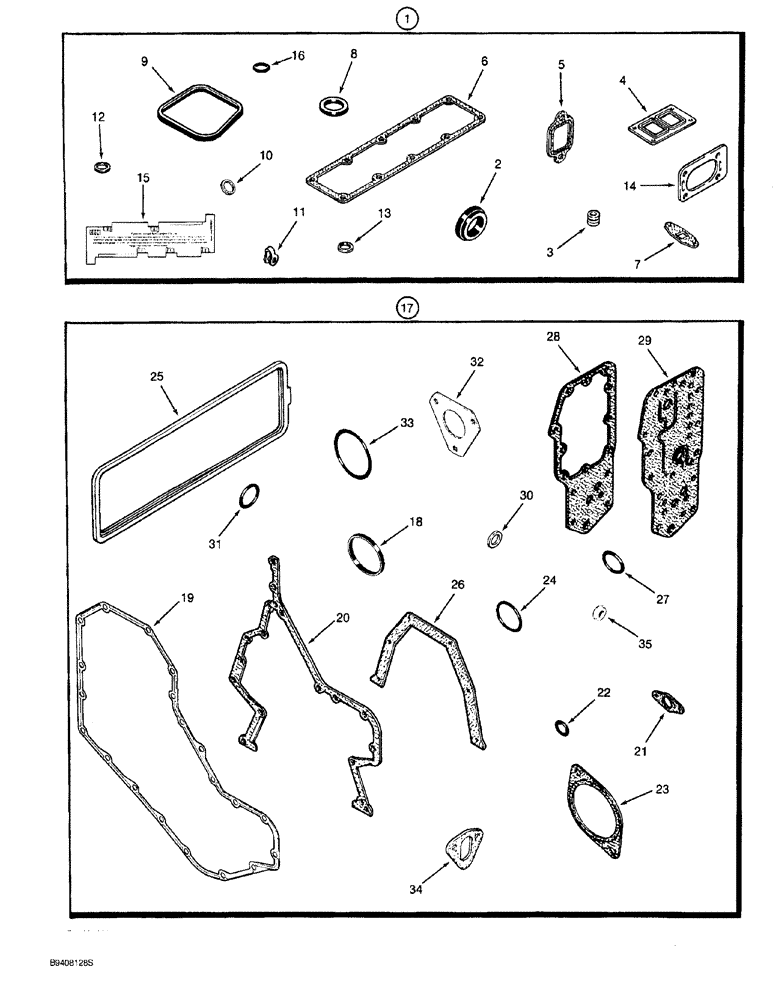

Запчасти Case 760 (02-042) - ENGINE GASKET KITS, 4-390 ENGINE (10) - ENGINE

1

A77792

GASKET KIT

valve grind, engine, replaces A77481 and A77672, Includes: Ref. 2 - 16

1шт.

When just the valve grind gasket kit is used, also order the required cylinder head gasket shown on Fig. 2-26

1шт.

2

J923331

GASKET

thermostat housing, replaces J903301 and J920020

1шт.

3

J901097

SEAL

valve

8шт.

4

J901356

GASKET,0.5mm Thk

, Serial Range: turbocharger-manifold

1шт.

5

J905443

MANIFOLD GASKET

exhaust manifold

4шт.

6

J914028

GASKET

intake manifold

1шт.

7

J914388

GASKET

turbo oil drain tube

1шт.

8

J902363

O-RING,30mm ID x 48mm OD x 3mm Thk

oil fill cap

1шт.

9

J902666

GASKET

rocker arm cover

4шт.

10

J900808

SEAL

injector nozzle, 9 mm injector tip

4шт.

11

J903380

SEAL

connector

4шт.

12

J906659

SEAL

injector nozzle, 7 mm injector tip

4шт.

13

J909356

SEAL,Square, 1.68mm Thk x 15.6mm ID, -16

body to nut, injector body, 7 mm

4шт.

14

J914856

GASKET,1.02mm Thk

air crossover connection

1шт.

15

J823921

GAUGE

cylinder head, bolt length

1шт.

16

J910824

O-RING,0.07" Thk x 0.364" ID, -12, Cl 5, 75 Duro

cover bolt

4шт.

17

A77671

GASKET KIT

engine block, replaces A77640, Includes: Ref. 18 - 35, cylinder block

1шт.

For complete engine overhaul, order, (1) cyl block kit, (1) valve grind kit, (1) oil pan kit, Fig 2-24, front & rear crankshaft seal kit, fig 2-36 and req. cyl head gasket, fig 2-26

1шт.

18

J903475

SEALING RING,72.39mm ID x 90.39mm OD x 9mm Thk

front access cover, cylinder block

1шт.

19

J914385

GASKET,1.02mm Thk

front cover, cylinder block

1шт.

20

J916131

GASKET

gear housing, replaces J914384, cylinder block

1шт.

21

J905595

GASKET

timing pin housing, cylinder block

1шт.

22

J913994

O-RING

sealing, cylinder block

1шт.

23

J919601

GASKET

access cover plate, replaces J913192, cylinder block

1шт.

24

238-5341

O-RING,0.21" Thk x 3.475" ID, -341, Cl 5, 75 Duro

Cylinder block

1шт.

25

J928831

GASKET

tappet cover, replaces J904056 and J922078, cylinder block

1шт.

26

J928493

GASKET

rear cover retainer, replaces J914386, cylinder block

1шт.

27

J906697

SEAL,Square, 5.16mm Thk x 50.17mm ID

50 mm ID, cylinder block

1шт.

28

J926760

GASKET

oil cooler core, replaces J914387 and J918256, cylinder block

1шт.

29

J929792

GASKET,1.2mm Thk

filter head, replaces J912532 and J918257, cylinder block

1шт.

30

J902425

SEALING WASHER,22.2mm ID x 26.9mm OD x 1.75mm Thk

sealing, plug, cylinder block

1шт.

31

J906696

SEAL,41mm ID x 43mm OD x 2.5mm H

38 mm ID, cylinder block

1шт.

32

J914389

GASKET

pump mounting, cylinder block

1шт.

33

J912473

SEAL,157mm ID x 163.18mm OD x 7.03mm Thk

SEALRING flywheel housing to block, replaces A157927, cylinder block

1шт.

34

J923054

GASKET

mounting, fuel transfer pump, replaces J914304, cylinder block

1шт.

35

J900267

SEAL

cover bolt, cylinder block

4шт.
