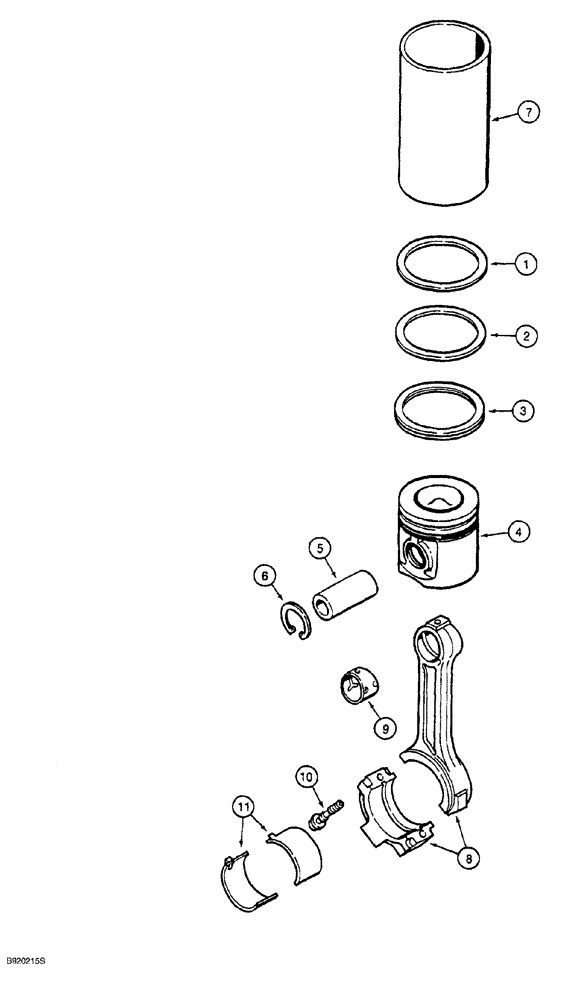

Запчасти Case 760 (02-040) - PISTONS, 4-390 ENGINE (10) - ENGINE

A77410

PISTON

KIT standard, Includes: Ref. 1 - 6 and Ring Kit below

4шт.

A77401

PISTON RING SET

standard, Includes: Ref. 1 - 3

1шт.

1

NSS

NOT SOLD SEPARAT

RING compression, upper

1шт.

2

NSS

NOT SOLD SEPARAT

RING compression, center

1шт.

3

NSS

NOT SOLD SEPARAT

RING oil, lower

1шт.

4

NSS

NOT SOLD SEPARAT

PISTON engine, standard, (Stamped 6223)

1шт.

5

J901793

PISTON PIN

1шт.

6

J901706

RING

snap, pin

2шт.

A77411

PISTON

KIT, 0.5 mm, oversize, Includes: Ref. 1 - 6 and Ring Kit below

4шт.

A77463

PISTON RING SET

0.5 mm, oversize, Includes: Ref. 1 - 3

1шт.

1

NSS

NOT SOLD SEPARAT

RING compression, upper

1шт.

2

NSS

NOT SOLD SEPARAT

RING compression, center

1шт.

3

NSS

NOT SOLD SEPARAT

RING oil, lower

1шт.

4

NSS

NOT SOLD SEPARAT

PISTON engine (0.5 mm, oversize) (Stamped 6209)

1шт.

5

J901793

PISTON PIN

41/64 ID x 3/32 inch wide

1шт.

6

J901706

RING

snap, pin

2шт.

A77412

PISTON

KIT, 10 mm, oversize, Includes: Ref. 1 - 6 and Ring Kit below

4шт.

A77464

PISTON RING SET

10 mm, oversize, Includes: Ref. 1 - 3

1шт.

1

NSS

NOT SOLD SEPARAT

RING compression, upper

1шт.

2

NSS

NOT SOLD SEPARAT

RING compression, center

1шт.

3

NSS

NOT SOLD SEPARAT

RING oil, lower

1шт.

4

NSS

NOT SOLD SEPARAT

PISTON engine (10 mm, oversize) (Stamped 6208)

1шт.

5

J901793

PISTON PIN

1шт.

6

J901706

RING

snap, pin

2шт.

7

J904166

SLEEVE

LINER piston, used only in engine block repair, when liner is installed, use only A77410 kit

1шт.

7

JR925232

ROD

ASSEMBLY, connecting, remanufactured, component parts shown on this Fig. do not apply to the remanufactured assy. replaces JR901569 rod assy.

1шт.

7

JC925232

CORE-ROD CONNECTING

Core-Connecting Rod Return Number, use this part number to return connecting rod for credit when using a remanufactured assy. replaces JC925232

1шт.

8

J925232

ROD, CONNECTING

ASSEMBLY, new, replaces J901569, Includes: Ref. 9 and 10

4шт.

8

84145405R

REMAN-CONNECTING ROD

760 , Reman For New PN J925232

4шт.

8

84145405C

CORE-ROD CONNECTING

Return Number

4шт.

8

JR942581

REMAN-CONNECTING ROD

Remanufactured Connecting Rod

4шт.

8

JC901569

CORE-ROD CONNECTING

Core-Connecting Rod, Return Number, Connecting Rod

4шт.

9

NSS

NOT SOLD SEPARAT

BUSHING rod to piston pin, connecting

1шт.

10

J900919

BOLT,Flng, MJ11 x 1.25 x 59mm, Cl 12.9

hex, special, connecting rods

2шт.

11

A77465

BEARING SET

KIT, upper and lower set, standard

4шт.

11

A77466

BEARING SET

KIT, upper and lower set, 0.25 mm, undersize

4шт.

11

A77467

BEARING LINER

KIT, upper and lower set, 0.50 mm, undersize

4шт.

11

A77468

BEARING SET

KIT, upper and lower set, 0.75 mm, undersize

4шт.

11

A77469

BEARING SET

KIT, upper and lower set, 1.00 mm, undersize

4шт.
