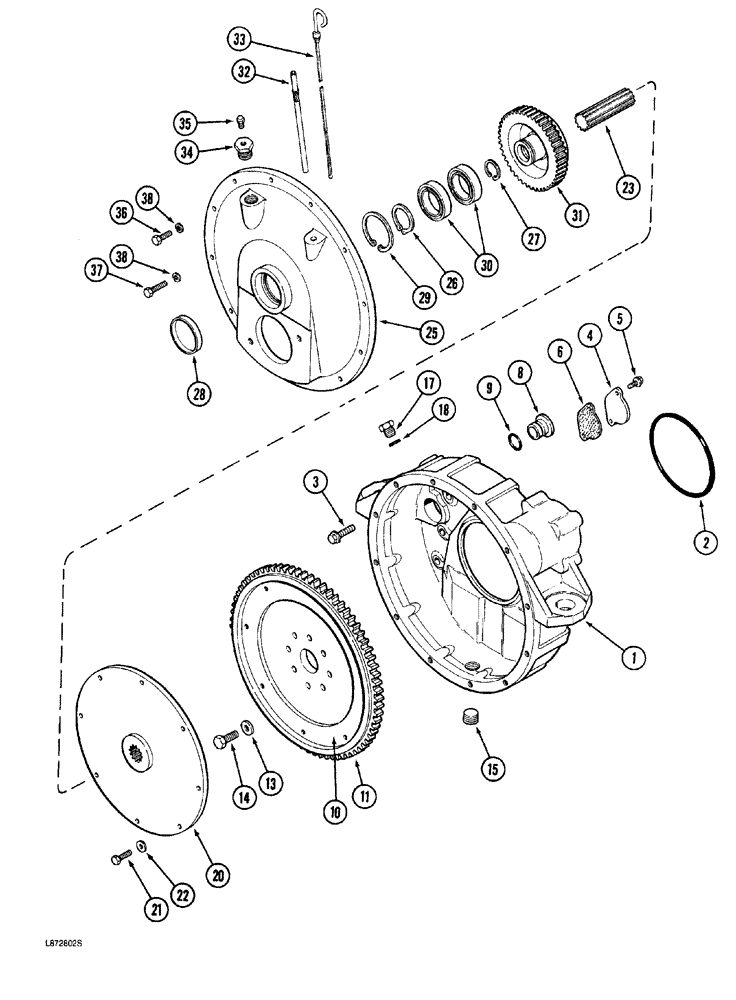

Запчасти Case 760 (02-038) - FLYWHEEL AND HOUSING, 4-390 ENGINE (10) - ENGINE

1

J903287

CASE

HOUSING flywheel

1шт.

2

J912473

SEAL,157mm ID x 163.18mm OD x 7.03mm Thk

SEALRING flywheel, Serial Range: housing-block

1шт.

3

854-12040

BOLT,Hvy Hex, M12 x 40mm, Cl 10.9

8шт.

4

J908095

PLATE

cover

1шт.

5

J902735

BOLT,M8 - 1.25 x 21 mm

hex flange, self tapping, 8 - 1.25 x 21 mm

2шт.

6

J908096

GASKET

cover plate

1шт.

8

J910248

PLUG

flywheel housing

1шт.

9

238-5212

O-RING,0.139" Thk x 0.859" ID, -212, Cl 5, 75 Duro

1шт.

10

J902569

FLYWHEEL

ASSEMBLY, crankshaft, Includes: Ref. 11

1шт.

11

J901774

GEAR,Flywheel

GEAR

1шт.

13

J900269

WASHER,12.76mm ID x 25.5mm OD x 1.65mm Thk

flat, special, flywheel bolt

8шт.

14

J901395

BOLT,Hex, M12 x 1.25 x 32mm, Cl 12.9

8шт.

15

263136

MAGNETIC PLUG,Sq. Soc, 3/4"-14 NPTF

PLUG, MAGNETIC

1шт.

17

214389

PLUG,3/4" - 16 ORB

Includes Ref. 18

1шт.

18

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

20

H672132

PLATE

drive

1шт.

21

614-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8, Full Thd

8шт.

22

496-21041

WASHER,13/32" x 13/16" x .089", HDN

8шт.

23

H403964

SHAFT

splined

1шт.

H672214

DRIVE ASSY.

pump, prior to P.I.N. JAF0049580, no longer available, order Refs. 25 - 35

1шт.

H674393

X

DRIVE ASSEMBLY, pump, P.I.N. JAF0049580 and after, no longer available, order Refs. 25 - 35

1шт.

25

H403634

HOUSING

drive, prior to P.I.N. JAF0049580

1шт.

25

H436644

HOUSING

drive, P.I.N. JAF0049580 and after

1шт.

26

100-11177

SNAP RING,#177, Ext

1шт.

27

H746388

SNAP RING,1.438", Int, #143

1.438", Int, #143

1шт.

28

41-1048

PLUG,Cup, 3"

cup, 3 inch diameter, prior to P.I.N. JAF0049580

1шт.

28

41-1054

PLUG,Cup, 3 3/8"

cup, 3-3/8 inch diameter, P.I.N. JAF0049580 and after

1шт.

29

103-21300

SNAP RING,3.00", Int, #300

Prior to P.I.N. JAF0049580

1шт.

29

100-21334

SNAP RING,3.346", Int, #334

P.I.N. JAF0049580 and after

1шт.

30

ST560

BEARING, BALL,45 mm ID x 75 mm OD x 16 mm

1-25/32 ID x 2-61/64 OD x 5/8 thk; Replaces G13075 Bearing; Prior to P.I.N. JAF0049580; If Used

2шт.

30

H436647

BALL BEARING

ball; 1-25/32 ID x 3-11/32 OD x 1-3/16 thk; P.I.N. JAF0049580 and After; If Used

2шт.

31

H673736

GEAR-SET

matched, drive and driven, 10 pitch, prior to P.I.N. JAF0049580

1шт.

Use only the drive gear (61 teeth) of the matched set H673736, Ref. 31, in this application, prior to P.I.N. JAF0049580

1шт.

31

H674540

KIT

GEAR matched set, drive and driven, 8 pitch, P.I.N. JAF0049580 and after

1шт.

Use only the drive gear (48 teeth) of matched set H674540, Ref. 31, in this application, P.I.N. JAF0049580 and after

1шт.

32

H433351

TUBE,9.52 mm OD x 250 mm L

dipstick

1шт.

33

J905780

GAUGE

dipstick oil

1шт.

34

221-90

REDUCER,3/4" NPT x 1/8" NPT

REDUCER pipe, 3/4 male x 1/8 inch, female

1шт.

35

A50096

VALVE

relief

1шт.

36

614-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 8.8

9шт.

37

614-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8, Full Thd

3шт.

38

892-11010

LOCK WASHER,M10

12шт.
