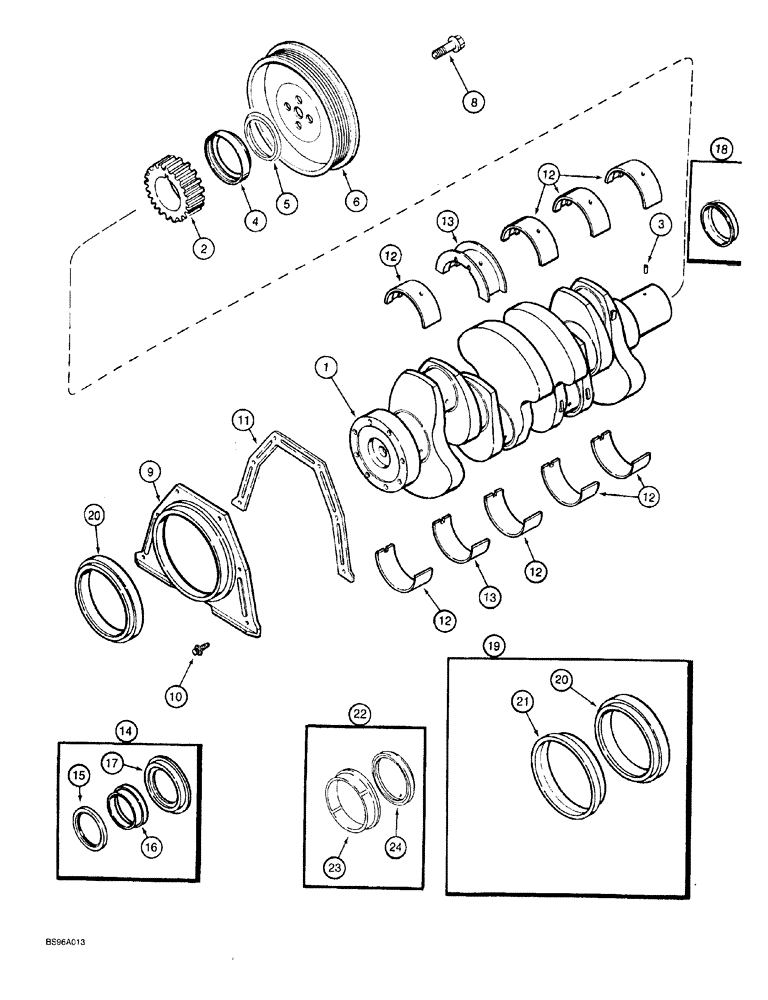

Запчасти Case 760 (02-036) - CRANKSHAFT, 4-390 (10) - ENGINE

JR918323

CRANKSHAFT

ASSEMBLY, engine, remanufactured, North America only, component parts shown on this figure do not apply to the remanufactured assembly, no longer available, order J918323 crankshaft assembly, Ref. 1

1шт.

J929036R

REMAN-CRANKSHAFT

760, Reman For New P/N JR918323

1шт.

J929036C

CORE-CRANKSHAFT

Return Number

1шт.

JC918323

CORE-CRANKSHAFT

RETURN NUMBER, use this part number to return crankshaft core for credit when using a remanufactured assembly

1шт.

1

J918323

CRANKSHAFT

ASSEMBLY engine, new, replaces J908031, Includes: Ref. 2 and 3

1шт.

J929036R

REMAN-CRANKSHAFT

760, Reman for New P/N J918323

1шт.

J929036C

CORE-CRANKSHAFT

Return Number

1шт.

2

J929027

PINION

GEAR crankshaft, replaces J901258, J912883 and J919681

1шт.

3

J904483

PIN,6.01mm OD x 8mm L

dowel

1шт.

4

NSS

NOT SOLD SEPARAT

SEAL oil, crankshaft front, order Ref. 20, J904353 kit

1шт.

5

J926430

SHAFT SEAL

dust, crankshaft, service repair only

1шт.

6

J914494

PULLEY,181.25mm OD

crankshaft vibration damper

1шт.

8

J903857

BOLT,Hex, M12 x 1.25 x 36mm

hex flange, special, 12 - 1.25 x 36 mm

4шт.

9

J921043

REAR COVER

RETAINER seal, replaces J906526 and J913447

1шт.

10

845-6015

BOLT,Hvy Hex, M6 x 15mm, Cl 8.8

Heavy

6шт.

11

J928493

GASKET

rear cover retainer, replaces J914386

1шт.

12

A77405

CRANKSHAFT BEARING

main, upper and lower set, standard

4шт.

12

A77472

BEARING SET

main, upper and lower set, 0.25 mm undersize

4шт.

12

A77474

BEARING SET

main, upper and lower set, 0.50 mm undersize

4шт.

12

A77476

BEARING SET

main, upper and lower set, 0.75 mm undersize

4шт.

12

A77478

BEARING SET

main, upper and lower set, 1.0 mm undersize

4шт.

13

A77406

CRANKSHAFT BEARING

main thrust, upper and lower set, standard

1шт.

13

A77473

THRUST BEARING

main, upper and lower set, 0.25 mm undersize

1шт.

13

A77475

THRUST BEARING

main, upper and lower set, 0.50 mm undersize

1шт.

13

A77477

THRUST BEARING

main, upper and lower set, 0.75 mm undersize

1шт.

13

A77479

THRUST BEARING

main, upper and lower set, 1.00 mm undersize

1шт.

13

A77841

THRUST BEARING

main, upper and lower set, 0.50 mm undersize, 0.50 mm oversize

1шт.

13

A77840

THRUST BEARING

main, upper and lower set, 1.00 mm undersize, 1.00 mm oversize

1шт.

14

J904353

GASKET KIT

oil seal, crankshaft front, Includes: Ref. 15 - 17

1шт.

15

NSS

NOT SOLD SEPARAT

SEAL oil, front

1шт.

16

NSS

NOT SOLD SEPARAT

TOOL installation

1шт.

17

NSS

NOT SOLD SEPARAT

TOOL installation

1шт.

18

J906080

PACKAGE, REPAIR

SLEEVE wear, crankshaft front

1шт.

19

J909411

SEAL

KIT oil, crankshaft rear, Includes: Ref. 20 and 21

1шт.

20

NSS

NOT SOLD SEPARAT

SEAL oil, rear

1шт.

21

NSS

NOT SOLD SEPARAT

SLEEVE installation

1шт.

23

J906081

SLEEVE

KIT wear, crankshaft rear, Includes: Ref. 24 and 25

1шт.

24

NSS

NOT SOLD SEPARAT

SLEEVE wear

1шт.

25

NSS

NOT SOLD SEPARAT

SEAL oil, rear

1шт.
