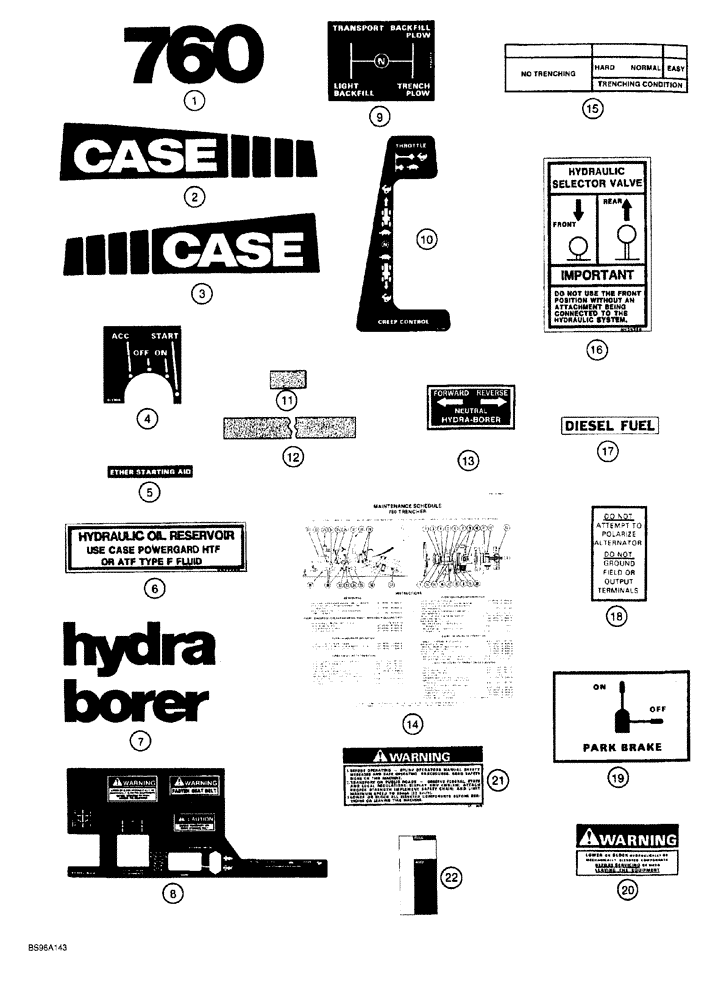

Запчасти Case 760 (09-150) - DECALS (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

H433812

ADHESIVE

DECAL 760

2шт.

Part of Decal Kit, P/N H672679

1шт.

2

NLS

NO LONGER SERVICED

DECAL Case, with treads, right-hand

1шт.

Part of Decal Kit, P/N H672679

1шт.

3

H433811

DECAL

Case, with treads, left-hand

1шт.

Part of Decal Kit, P/N H672679

1шт.

4

D123946

DECAL

ignition switch pattern

1шт.

Part of Decal Kit, P/N H672679

1шт.

5

D124152

DECAL

ether starting aid

1шт.

6

H277723

DECAL

hydraulic oil reservoir

1шт.

Part of Decal Kit, P/N H672679

1шт.

7

H427880

DECAL

hydra-borer

1шт.

Part of Decal Kit, P/N H672679

1шт.

8

H433636

DECAL

side console, attachments and steering mode, used on models with electronic steering, also includes Refs. 20, 21, and 32, not shown

1шт.

H433636 and H434653 are special one piece decals that also include items 20, 21 and 32 which are listed separately for reference purposes only.

1шт.

Part of Decal Kit, P/N H672679

1шт.

8a

H434653

DECAL

side console, attachments, rear wheel positioner and rear wheel position indicator, used on models without electronic steering, also includes Refs. 20, 21, and 32, not shown

1шт.

H433636 and H434653 are special one piece decals that also include items 20, 21 and 32 which are listed separately for reference purposes only.

1шт.

Part of Decal Kit, P/N H672679

1шт.

9

H433979

DECAL

shift pattern

1шт.

Part of Decal Kit, P/N H672679

1шт.

10

H433980

DECAL

throttle and creep control pattern, and creep control pattern

1шт.

Part of Decal Kit, P/N H672679

1шт.

11

H433993

PAD

STRIP anti-skid, operator's compartment

6шт.

12

D55216

PAD,2" x 9"

Fuel tank and battery box cover, replaces H433994 anti-skid strip

4шт.

13

H434251

DECAL

hydra-borer control

1шт.

Part of Decal Kit, P/N H672679

1шт.

14

H434324

DECAL

maintenance schedule

1шт.

Part of Decal Kit, P/N H672679

1шт.

15

H434352

DECAL

trenching chainlme speed control pattern

1шт.

Part of Decal Kit, P/N H672679

1шт.

16

H434356

DECAL

hydraulic selector valve

1шт.

Part of Decal Kit, P/N H672679

1шт.

17

321-230

DECAL

diesel fuel

1шт.

Part of Decal Kit, P/N H672679

1шт.

18

321-1061

DECAL

do not attempt to polarize alternator

1шт.

Part of Decal Kit, P/N H672679

1шт.

19

321-2066

DECAL

park brake control pattern

1шт.

Part of Decal Kit, P/N H672679

1шт.

20

321-3042

DECAL

Warning, lower or block hydraulically or mechanically, this decal is a part of H433636 and H434653 decals, Refs. 8 & 8A, no longer available, order Ref. 21, 321-6625

1шт.

20a

321-719

DECAL

water, not shown

1шт.

Part of Decal Kit, P/N H672679

1шт.

21

321-6625

DECAL

Warning, before operating/transport on public roads/lower or block all elevated

1шт.

22

H438327

DECAL

hydraulic oil reservoir level, if used

1шт.

H672679

DECAL

KIT, See Figs. 9-152 and 9-154 for additional decals that are included in this kit. No longer available, order component parts separately

1шт.

21

321-3060

DECAL

Warning, fasten seat belt, this decal is a part of H433636 and H434653 decals, Refs.8 and 8A on Fig. 9-150

1шт.

22

321-3214

DECAL

Warning, personnel must be clear of digging chain

3шт.

Part of Decal Kit, P/N H672679

1шт.

23

321-3596

DECAL

Warning, rotating fan and belts

2шт.

Part of Decal Kit, P/N H672679

1шт.

24

321-3705

DECAL

Warning, before starting engine

1шт.

25

321-3709

DECAL

Warning, engine can start with transmission in gear, no longer available, order Ref. 25A, 321-7040

1шт.

Part of Decal Kit, P/N H672679

1шт.

25a

321-7040

DANGER DECAL

Starting in gear can cause death

1шт.

26

321-3905

DECAL

Warning, operate this unit from operator's seat only

1шт.

Part of Decal Kit, P/N H672679

1шт.

27

321-5501

DECAL

Caution, stop the machine

2шт.

Part of Decal Kit, P/N H672679

1шт.

28

321-5701

DECAL

Warning, do not remove engine side panels

2шт.

Part of Decal Kit, P/N H672679

1шт.

29

321-6259

DECAL

Warning, keep clear, sharp moving parts, no longer available, order Ref. 41, H438999

2шт.

30

321-6672

DECAL

Warning, check and service cooling system

1шт.

Part of Decal Kit, P/N H672679

1шт.

31

321-6687

DECAL

Warning, keep clear, sharp moving parts, no longer available, order Ref. 31A, H438909

2шт.

31a

H438909

DECAL

Danger, sharp moving parts, keep clear, 60 x 470 mm long

2шт.

32

321-6710

DECAL

Caution, during transport use front steering only, this decal is a part of H433636 and H434653, Refs. 8 and 8A on Fig. 9-150

1шт.

33

321-6714

DECAL

Warning, batteries contain acid and explosive gas

1шт.

Part of Decal Kit, P/N H672679

1шт.

34

321-6715

DECAL

Warning, rotating machine parts

2шт.

Part of Decal Kit, P/N H672679

1шт.

35

321-6746

DECAL

Warning, your seat belt has non-locking retractors

1шт.

Part of Decal Kit, P/N H672679

1шт.

36

H433813

DECAL

4 wheel steer

2шт.

37

321-4614

TAG

TAG do not operate

1шт.

38

321-4739

EMBLEM

1шт.

39

131-431

PUSH-ON NUT,Self, Threading, 1/4"

Push-on type

2шт.

40

124016A1

DECAL

Danger, avoid injury or death

2шт.

41

H438999

DECAL

Danger, sharp moving parts, keep clear

2шт.

H672679

DECAL

KIT, Includes: Ref. 1 - 4, 6 - 10, 13 - 19 and 20A, See Figs. 9-152 and 9-154 for additional decals that are included in this kit, No longer available, order components separately

1шт.
