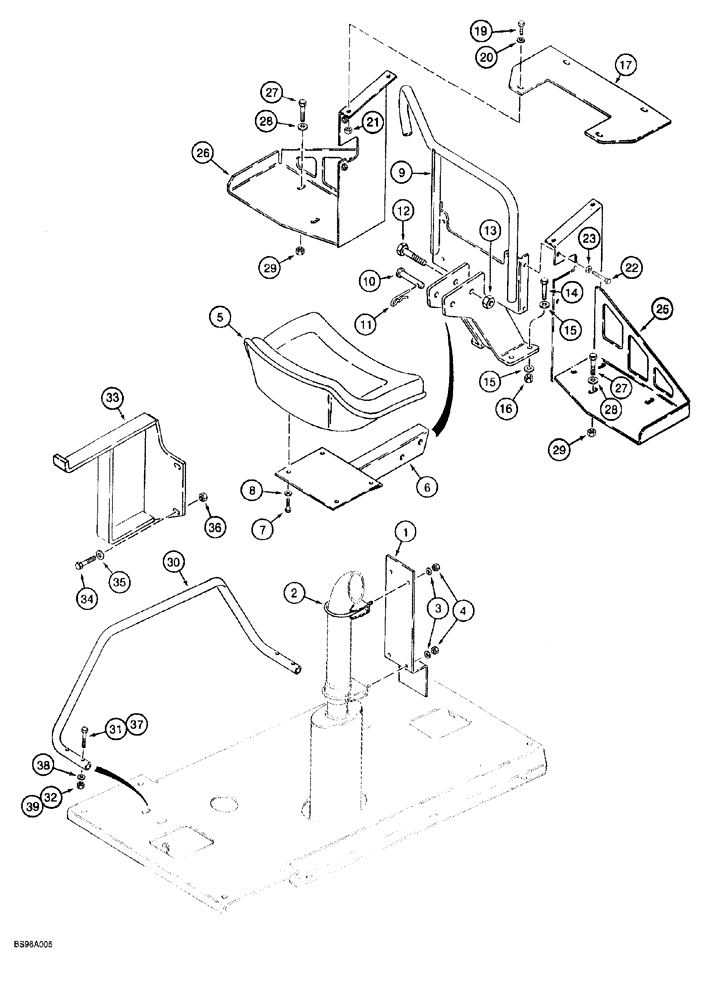

Запчасти Case 760 (09-024) - BACKHOE PLATFORM, FOOT GUARDS WITH VALVE SIDE COVER (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

H434212

SHIELD

muffler, used on backhoe units

1шт.

2

H434145

CLAMP

muffler exhaust, Serial Range: extension-shield

1шт.

3

496-21041

WASHER,13/32" x 13/16" x .089", HDN

Used in addition to existing clamp hardware

4шт.

4

232-4115

LOCK NUT,5/16"-18, GC

Used in addition to existing clamp hardware

4шт.

5

H436146

SEAT

ASSEMBLY, brown, parts list Fig. 9-26, Start Serial: JAF0027210

1шт.

6

H673473

LARGE PLATE

PLATE, LARGE BRACKET seat mounting

1шт.

7

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

4шт.

8

H426775

WASHER

flat, special, hardened

4шт.

9

H672346

CONSOLE

backhoe control valve and seat mounting

1шт.

10

S10839

CLEVIS PIN,19.05mm OD x 95.25mm L

3/4 x 3-1/2 inch

1шт.

11

136-164

COTTER PIN,Int, 5/16" x .120"

hair, 5/16 x 2-25/32 inch

1шт.

12

413-1260

BOLT,Hex, 3/4" - 10 x 3-3/4", Gr 5

1шт.

13

230-42112

LOCK NUT,3/4"-10, GA

hex, self-locking, 3/4 inch NC

1шт.

14

413-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

4шт.

15

496-21053

WASHER,17/32" x 1 1/16" x .134"

Hardened

8шт.

16

232-4118

NUT,1/2"-13, GC

4шт.

17

H436285

COVER

backhoe control valve

1шт.

19

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

4шт.

20

496-21041

WASHER,13/32" x 13/16" x .089", HDN

4шт.

21

232-4116

NUT,3/8"-16, GC

2шт.

22

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

4шт.

23

496-21041

WASHER,13/32" x 13/16" x .089", HDN

4шт.

25

H673481

GUARD

foot, right-hand

1шт.

26

H673480

PROTECTOR

GUARD foot, left-hand

1шт.

27

413-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

6шт.

28

496-21053

WASHER,17/32" x 1 1/16" x .134"

Hardened

6шт.

29

232-4118

NUT,1/2"-13, GC

12шт.

30

H434213

RAIL

hand, backhoe operator's seat access assist

1шт.

31

413-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

Replaced by 5/8 inch hardware on some models, See Ref. 37, 38, and 39

4шт.

32

232-4116

NUT,3/8"-16, GC

Replaced by 5/8" hardware on some models, see Ref. 37, 38, and 39

4шт.

33

H672540

STEP

backhoe operator's seat access, if used

1шт.

34

413-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

If used

2шт.

35

496-21053

WASHER,17/32" x 1 1/16" x .134"

Hardened, If used

2шт.

36

232-4118

NUT,1/2"-13, GC

If used

2шт.

37

413-528

BOLT,Hex, 5/16" - 18 x 1-3/4", Gr 5

flat, 17/32 x 1-1/16 x 1/8 inch, hardened

4шт.

38

H426775

WASHER

flat, special, hardened, if used

4шт.

39

232-4115

LOCK NUT,5/16"-18, GC

Replaces 3/8 inch hardware on some models

4шт.
