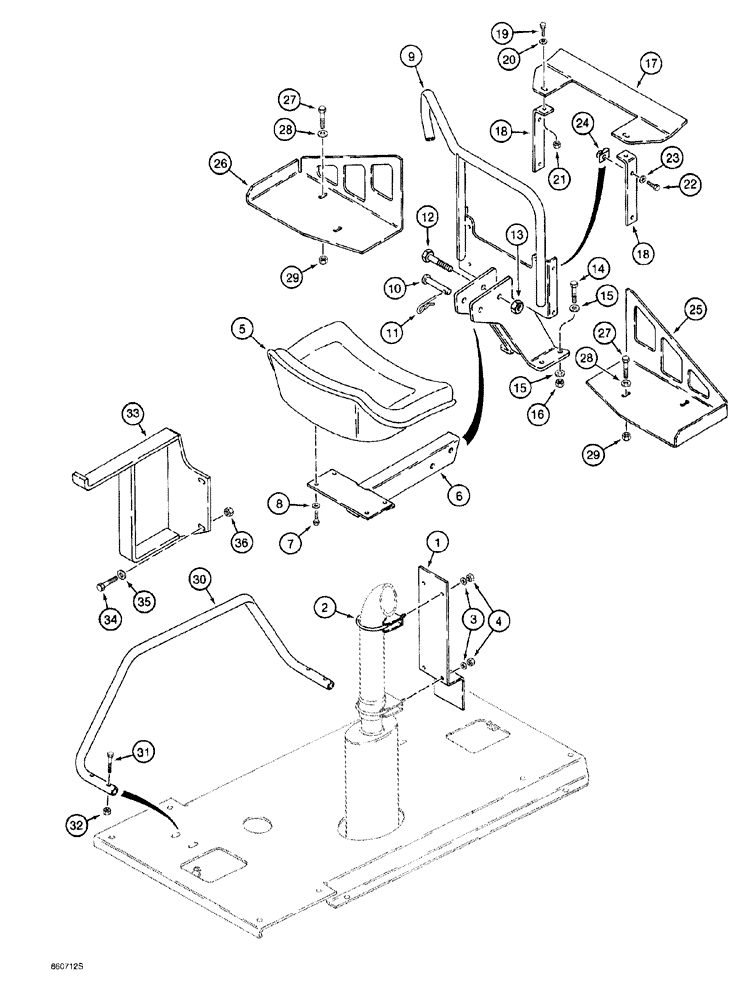

Запчасти Case 760 (09-022) - BACKHOE PLATFORM, FOOT GUARDS WITHOUT VALVE SIDE COVER (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

H434212

SHIELD

muffler, used on backhoe units

1шт.

2

A13240

CLAMP,2-5/8" ID

two piece, includes hardware, muffler exhaust, Serial Range: extension-shield

1шт.

3

H426775

WASHER

flat, special, hardened, used in addition to existing clamp hardware

4шт.

4

230-4215

NUT,5/16"-18, GA

Used in addition to existing clamp hardware

4шт.

5

H429316

SEAT

ASSEMBLY, brown, parts list Fig. 9-26, Serial Range: -JAF0027210

1шт.

6

H672356

TUBE,390, 104 mm L

BRACKET seat mounting

1шт.

7

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

4шт.

8

H426775

WASHER

flat, special, hardened

4шт.

9

H672346

CONSOLE

backhoe control valve and seat mounting

1шт.

10

S10839

CLEVIS PIN,19.05mm OD x 95.25mm L

3/4 x 3-1/2 inch

1шт.

11

136-164

COTTER PIN,Int, 5/16" x .120"

hair, 5/16 x 2-25/32 inch

1шт.

12

413-1260

BOLT,Hex, 3/4" - 10 x 3-3/4", Gr 5

1шт.

13

230-42112

LOCK NUT,3/4"-10, GA

hex, self-locking, 3/4 inch NC

1шт.

14

413-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

4шт.

15

496-21053

WASHER,17/32" x 1 1/16" x .134"

Hardened

8шт.

16

230-4218

LOCK NUT,1/2"-13, GA

hex, self-locking, 1/2 inch NC

4шт.

17

H434239

COVER

backhoe control valve

1шт.

18

H434198

COVER

BRACKET mounting

2шт.

19

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

2шт.

20

H426775

WASHER

flat, special, hardened

2шт.

21

230-4215

NUT,5/16"-18, GA

2шт.

22

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

4шт.

23

H426775

WASHER

flat, special, hardened

4шт.

24

H346650

NUT

U-type, 5/16 inch NC

4шт.

25

H434147

PROTECTOR

GUARD foot, right-hand

1шт.

26

H434146

PROTECTOR

GUARD foot, left-hand

1шт.

27

413-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

4шт.

28

496-21053

WASHER,17/32" x 1 1/16" x .134"

Hardened

4шт.

29

230-4218

LOCK NUT,1/2"-13, GA

hex, self-locking, 1/2 inch NC

4шт.

30

H434213

RAIL

hand, backhoe operator's seat access assist

1шт.

31

413-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

4шт.

32

230-4216

LOCK NUT,3/8"-16, GA

4шт.

33

H672540

STEP

backhoe operator's seat access

1шт.

34

413-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

2шт.

35

496-21053

WASHER,17/32" x 1 1/16" x .134"

Hardened

2шт.

36

230-4218

LOCK NUT,1/2"-13, GA

hex, self-locking, 1/2 inch NC

2шт.
