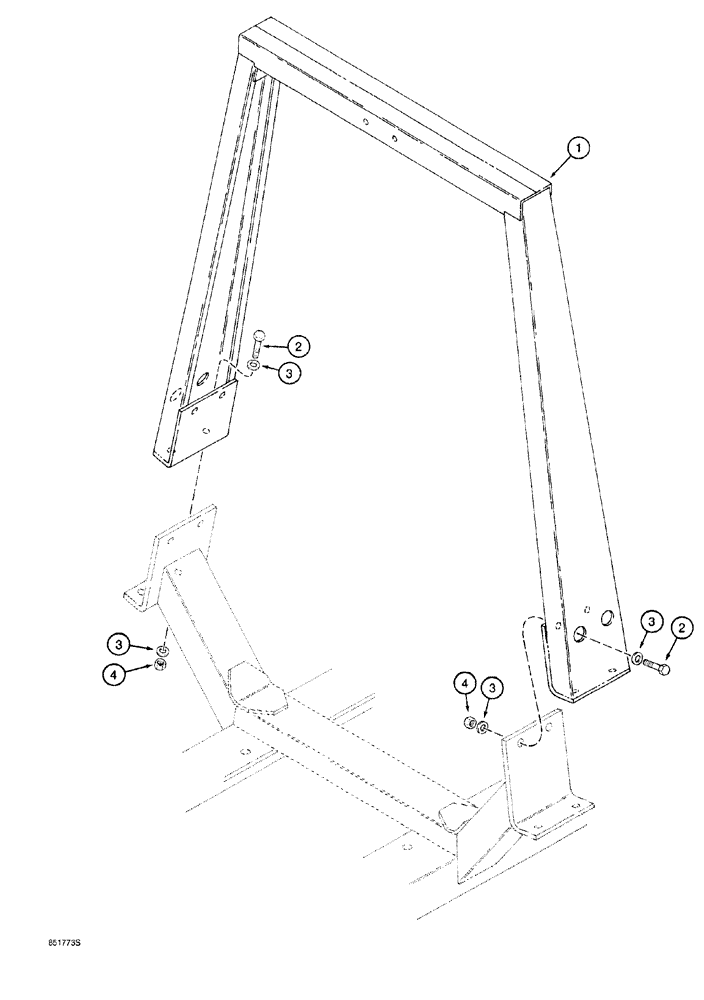

Запчасти Case 760 (09-016) - ROLL OVER PROTECTIVE STRUCTURE (90) - PLATFORM, CAB, BODYWORK AND DECALS

H939102

Kit, ROPS, 2 post, machinery item, order from Machinery Price List, Includes: Ref. 1 - 4, Serial Range: -JAF0022905

1шт.

H939171

KIT

ROPS, 2 post, machinery item, order from Machinery Price List, Includes: Ref. 1 - 4, Start Serial: JAF0022905

1шт.

1

H671313

ROPS, 2 post, order H939102 kit, prior to P.I.N. JAF0022905

1шт.

1

H673241

ATTACHMENT

ROPS, 2 post, order H939171 kit, P.I.N. JAF0022905 and after

1шт.

2

426-1032

BOLT,Hex, 5/8" - 11 x 2", Gr 8

hex, 5/8 NC x 2 inch, grade 8

8шт.

3

T53567

BEARING WASHER,16.66mm ID x 33.33mm OD x 3.43mm Thk

flat, special, hardened

16шт.

4

232-41110

NUT,5/8"-11, GC

8шт.
