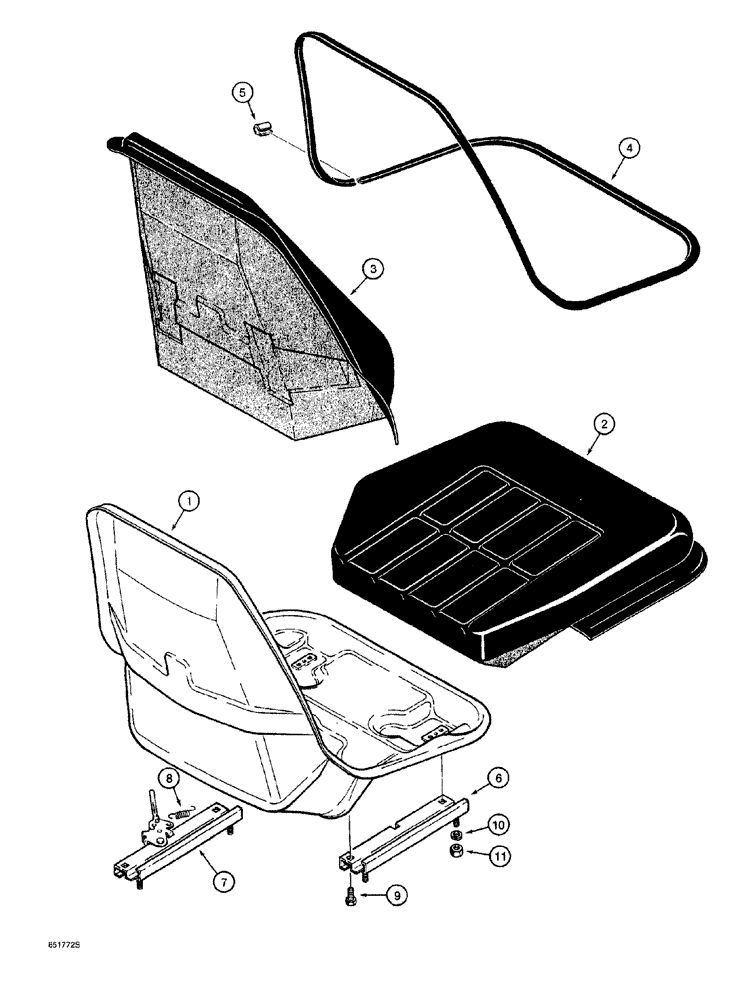

Запчасти Case 760 (09-014) - OPERATORS SEAT (90) - PLATFORM, CAB, BODYWORK AND DECALS

D124515

SEAT ASSY.

operators, brown vinyl, molded shell, Includes: Ref. 1 - 11

1шт.

1

NSS

NOT SOLD SEPARAT

SHELL seat

1шт.

2

N8462

CUSHION

KIT seat , includes N7802 clip kit, brown vinyl

1шт.

3

N8461

CUSHION

KIT backrest, includes N7802 clip kit, brown vinyl

1шт.

4

NSS

NOT SOLD SEPARAT

RETAINER edging strip, Serial Range: cushion-shell

1шт.

5

NSS

NOT SOLD SEPARAT

CLIP retainer, order N7802 clip kit, plus six additional narrow clips

1шт.

6

N13606

ADJUSTER

SLIDE seat, left-hand, adjustment side, Includes: Ref. 7

1шт.

7

L35503

SPRING

slide

1шт.

8

N13607

ADJUSTER

SLIDE seat, right-hand

1шт.

9

413-58

BOLT,Hex, 5/16" - 18 x 1/2", Gr 5

hex, 5/16 NC x 1/2 inch

4шт.

10

492-11031

LOCK WASHER,5/16"

4шт.

11

425-105

NUT,5/16"-18, G5

4шт.

345-44

ADHESIVE

spray can, 3M No. 74, 23 ounce

1шт.

N7802

CLIP

KIT, includes item 5 clip shown above plus six additional narrow clips

1шт.
