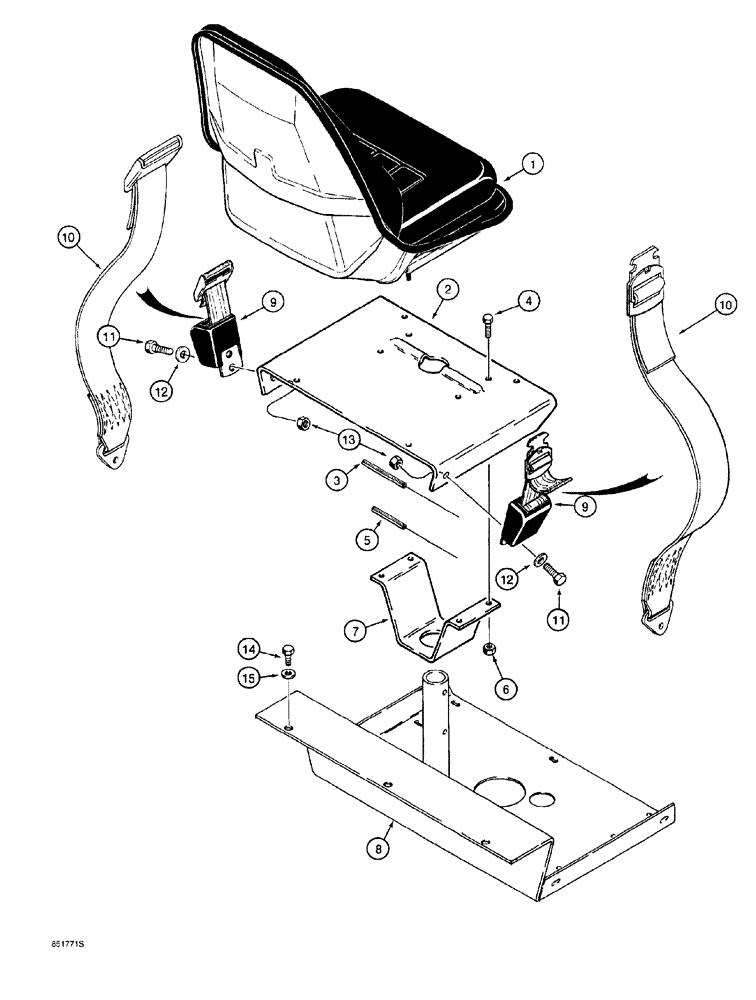

Запчасти Case 760 (09-012) - OPERATORS SEAT AND MOUNTING (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

D124515

SEAT ASSY.

operators, brown vinyl, molded shell, parts list Fig. 9-14

1шт.

2

H336222

PLATE

SUPPORT seat assembly

1шт.

3

38-12464

LOCK PIN,3/8" x 4", Slotted

3/8" x 4", Slotted

1шт.

4

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

4шт.

5

38-12444

LOCK PIN,3/8" x 2 3/4", Slotted

3/8" x 2 3/4", Slotted

1шт.

6

230-4216

LOCK NUT,3/8"-16, GA

4шт.

7

H336180

LARGE PLATE

PLATE, LARGE BRACKET seat support

1шт.

8

H666495

PLATE

seat mounting

1шт.

9

H651646

SAFETY BELT ,45.70 mm W

Retractable, If used

1шт.

10

H438265

SAFETY BELT

Non-retractable, Replaces H594564, If used

1шт.

11

414-720

BOLT,Hex, 7/16" - 20 x 1-1/4", Gr 5

hex, 7/16 NF x 1-1/4 inch

2шт.

12

H277566

WASHER

flat, special

2шт.

13

232-4617

LOCK NUT,7/16"-20, GC

2шт.

14

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

14шт.

15

H426775

WASHER

flat, special, hardened

14шт.
