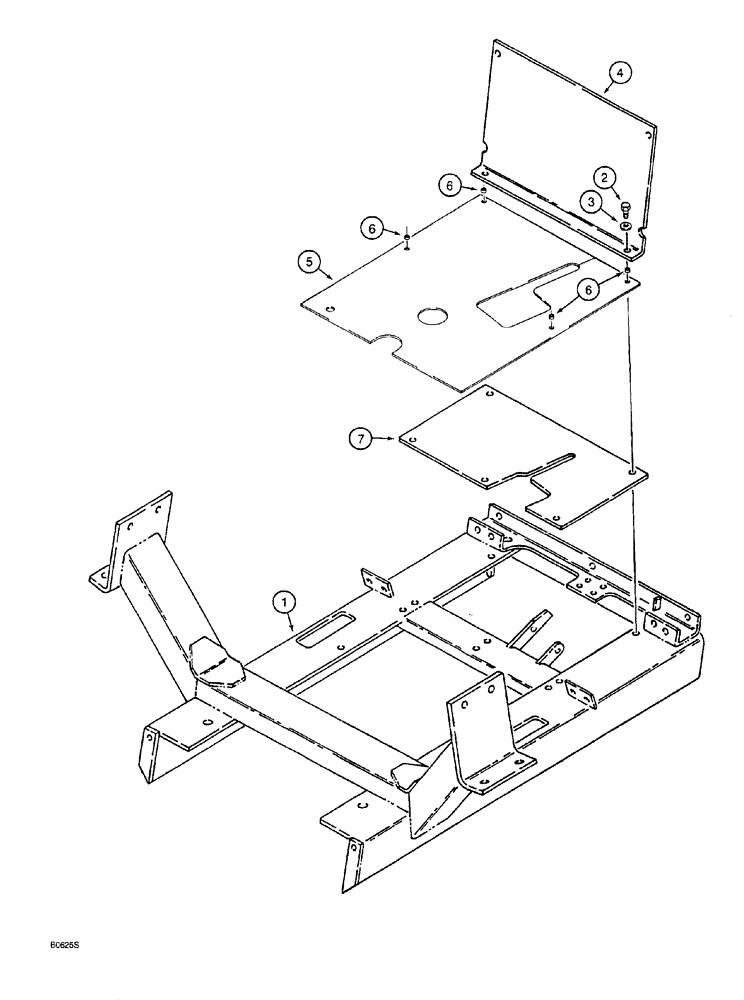

Запчасти Case 760 (09-010) - FLOOR MAT (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

REF

INSTRUCTION

PLATFORM operators compartment, see Fig. 9-6 for correct platform and mounting

1шт.

2

413-520

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

hex, 5/16 NC x 1-1/4 inch

4шт.

3

495-21038

WASHER,5/16"

(flat, 3/8 x 7/8 x 3/32")

4шт.

4

H433711

COVER

PANEL steering tower, see Fig.9-6 for mounting

1шт.

5

H434690

FLOOR MAT

operators compartment

1шт.

6

D38524

SPACER

SPACER, floormat

4шт.

7

H403972

FLOOR

PLATE, see Fig. 9-6 for mounting

1шт.
