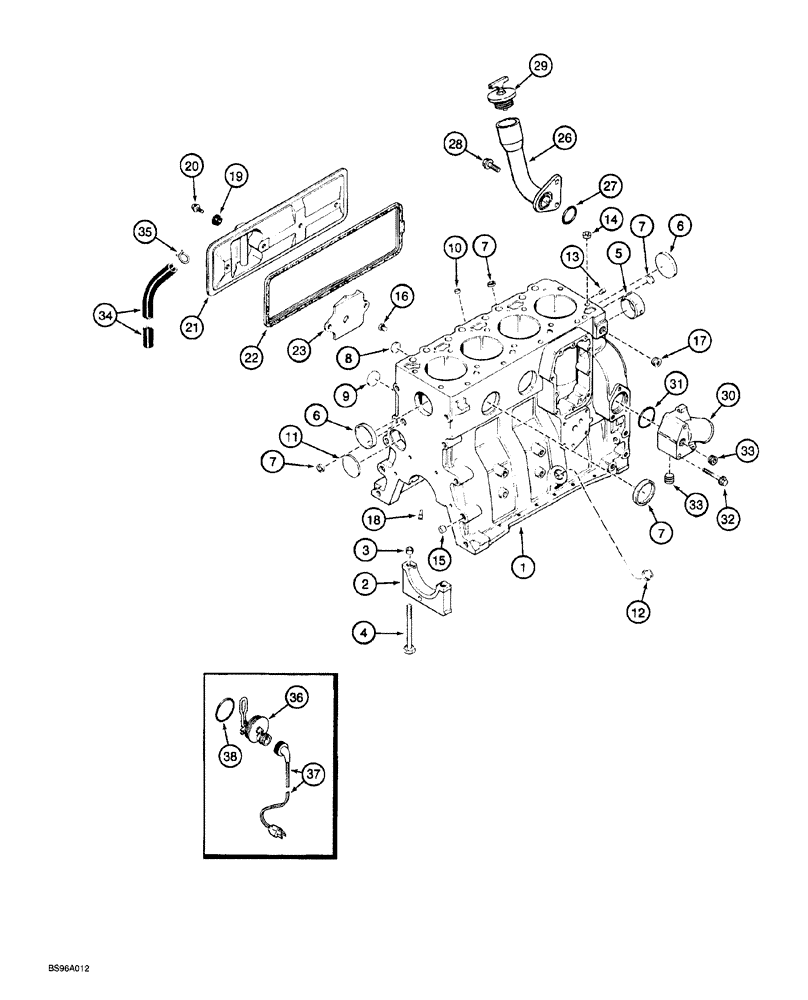

Запчасти Case 760 (02-032) - CYLINDER BLOCK, 4-390 ENGINE (10) - ENGINE

1989034C2

ENGINE ASSEMBLY

ENGINE ASSY complete, 4-390, includes all parts except starter, alt, fan, fan belt, air cleaner, muff, and exhaust pipe, for service order basic engine below

1шт.

1989091C2

BASIC ENGINE

ASSEMBLY,basic, includes all parts except starter, alternator, fan, fan belt, air cleaner, muffler,exhaust manifold,flywheel & housing,oil fill and dipstick,fuel injectors & lines,front crank pulley & belt tensioner

1шт.

1989091C3R

REMAN-BASIC ENGINE

ASSEMBLY,basic, includes all parts except starter, alternator, fan, fan belt, air cleaner, muffler,exhaust manifold,flywheel & housing,oil fill and dipstick,fuel injectors & lines. Built with 3 bolt injection pump front housing

1шт.

1989091C3C

CORE-BASIC ENGINE

Return Part Number

1шт.

JR920384

SKELETON ENGINE

Block Assembly, Short, Remanufactured, Component Parts Shown On This Page Do Not Apply To The Remanufactured Assy. Replaces AR77758 Block

1шт.

AC77758

CORE-ENGINE

Return Part Number, Use This Part Number To Return Short Block Core For Credit When Using a Remanufactured Assembly

1шт.

J920384

BLOCK ASSY.

short, engine, new, includes stripped block, pistons, connecting rods and bearings, crankshaft and bearings

1шт.

JR933238

REMAN-SHORT ENGINE

short, engine, Reman, includes stripped block, pistons, connecting rods and bearings, crankshaft and bearings

1шт.

JC933238

CORE-SHORT ENGINE

Return Part Number

1шт.

A77757

CRANKCASE

KIT stripped block, no longer available, order J916254 stripped block and J920399 hardware kit, replaces J905376 kit, Includes: Ref. 1 - 8

1шт.

1

J916254

BLOCK ASSY.

stripped, engine, Includes: Ref. 2 - 8

1шт.

2

J900967

BEARING CAP

CAP main

5шт.

3

J900068

BEARING WASHER

RING dowel, 18 mm O.D.

10шт.

4

J904217

BOLT,Hex, M14 x 2 x 119mm, Cl 12.9

main bearing cap, special

10шт.

5

REF

INSTRUCTION

BUSHING camshaft front, see Fig. 2-42

1шт.

6

A77782

PLUG

expansion, 58 mm O.D., replaces J900965

4шт.

7

J900956

PLUG

expansion, 18 mm O.D.

3шт.

8

41-1616

PLUG,Cup, 1", Stainless

2шт.

J802641

PACKAGE, REPAIR

KIT block hardware, replaces J905813, Includes: Ref. 9 - 18

1шт.

9

J900958

PLUG

expansion, 32 mm O.D.

2шт.

10

J900955

PLUG

expansion, 10 mm O.D.

1шт.

11

172599

PLUG,Exp, 2 3/8"

expansion, Welch, 60 mm O.D., replaces J900687

1шт.

12

A77439

PLUG

expansion, 22 mm O.D.

1шт.

13

J900257

PIN,10.01mm OD x 16mm L

dowel, 16 mm long

2шт.

14

J902343

DOWEL

RING, 16 mm O.D.

2шт.

15

J900068

BEARING WASHER

RING dowel, 18 mm O.D.

2шт.

16

J906619

PLUG,1/8" - 27

hex, 1/8 inch PT

2шт.

17

A77429

PLUG

hex socket, 1/2 inch PT

1шт.

18

J919002

NOZZLE CAP

piston cooling, 4 used in this application, replaces J901020

6шт.

19

J900267

SEAL

cover bolt

4шт.

20

845-8016

BOLT,Hvy Hex, M8 x 16mm, Cl 8.8

2шт.

21

J925680

COVER

tappet, replaces J905023 and J916441

1шт.

22

J928831

GASKET

tappet cover, replaces J904056 or J922078

1шт.

23

J907586

BAFFLE

tappet cover

1шт.

26

J905440

TUBE

oil fill

1шт.

27

J906696

SEAL,41mm ID x 43mm OD x 2.5mm H

38 mm ID

1шт.

28

854-12025

BOLT,Hvy Hex, M12 x 25mm, Cl 10.9

Heavy

2шт.

29

A77424

FILLER CAP

CAP oil fill tube

1шт.

30

J903102

CONNECTION

water inlet

1шт.

31

J906697

SEAL,Square, 5.16mm Thk x 50.17mm ID

50 mm ID

1шт.

32

854-10075

BOLT,Hvy Hex, M10 x 75mm, Cl 10.9

Heavy

3шт.

33

A77429

PLUG

hex socket, 1/2 inch PT

2шт.

34

J918612

TUBE,360.00 mm

Breather, replaces J906593

1шт.

35

J904230

CLAMP,25.4mm

hose

1шт.

A77634

KIT

engine block heater, Includes: Ref. 36 - 38

1шт.

36

NSS

NOT SOLD SEPARAT

HEATER engine block

1шт.

37

J910517

O-RING

heater sealing, engine block

1шт.

38

J905113

CABLE

engine block heater, 6 feet long

1шт.
