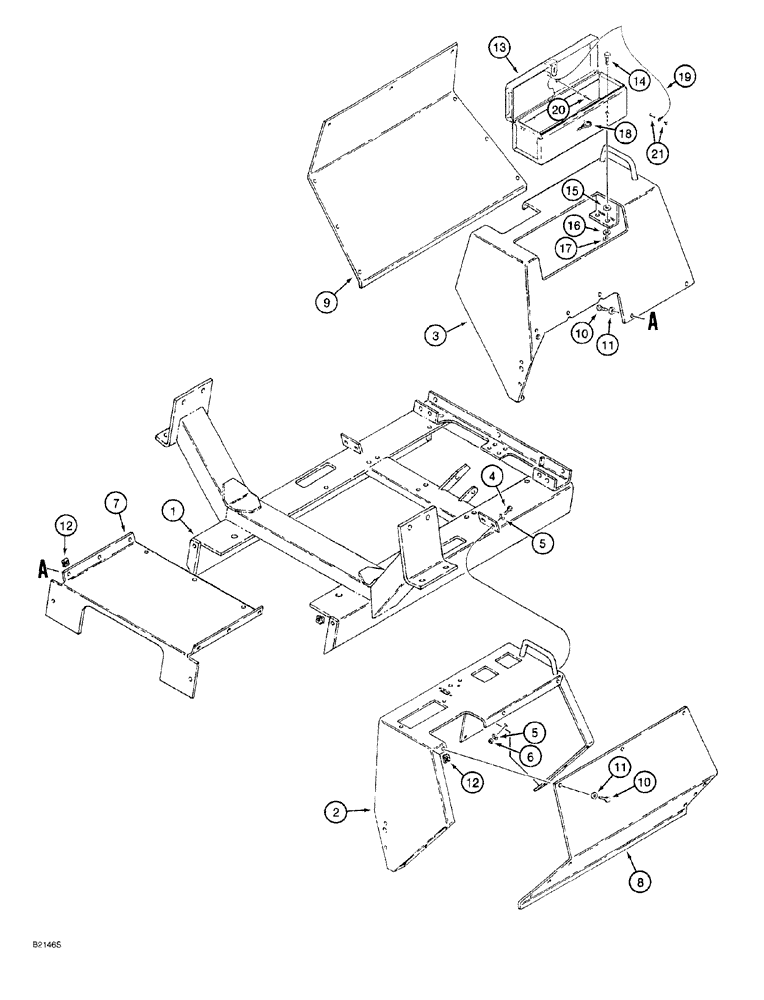

Запчасти Case 760 (09-008) - OPERATORS COMPARTMENT, CONSOLES AND TOOL BOX (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

H671339

PLATFORM

operators compartment, Serial Range: -JAF0022844

1шт.

1

H673242

PLATFORM

operators compartment, Start Serial: JAF0022844

1шт.

2

H672114

BRACKET

CONSOLE attachment and steering controls, right-hand, used on units with attachment valve control rods which have female threads at ball joint ends, not shown

1шт.

2a

H673187

BRACKET

CONSOLE attachment and steering controls, right-hand, used on units with attachment valve control rods which have male threads at ball joint ends, not shown

1шт.

3

H672355

CONSOLE

left-hand, tool box mounting

1шт.

4

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

4шт.

5

H426775

WASHER

flat, special, hardened

8шт.

6

232-4115

LOCK NUT,5/16"-18, GC

4шт.

7

H433305

PLATE

floor, rear, see Fig. 9-6 for mounting hardware

1шт.

8

H432096

PLATE

right-hand console

1шт.

9

H432195

PLATE

left-hand console

1шт.

10

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

28шт.

11

H426775

WASHER

flat, special, hardened

28шт.

12

H346650

NUT

U-type, 5/16 inch NC

28шт.

13

D124090

BOX, TOOL

tractor, has internal clip for operators manual

1шт.

14

413-48

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

4шт.

15

H426767

WASHER

flat, 9/32 x 5/8 x 3/64 inch

1шт.

16

H426767

WASHER

flat, 9/32 x 5/8 x 3/64 inch

4шт.

17

230-4214

LOCK NUT,1/4"-20, GA

4шт.

18

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP tie, tool box latch

1шт.

19

D126821

CABLE

CORD manual retaining, replaces R46465

1шт.

20

151-522

RIVET,Pop, 3/16" x .575"

break mandrel, 3/16 x 17/32 inch

1шт.

21

NSS

NOT SOLD SEPARAT

POST manual retaining, 3/16 x 3/4 inch long, buy locally

1шт.
