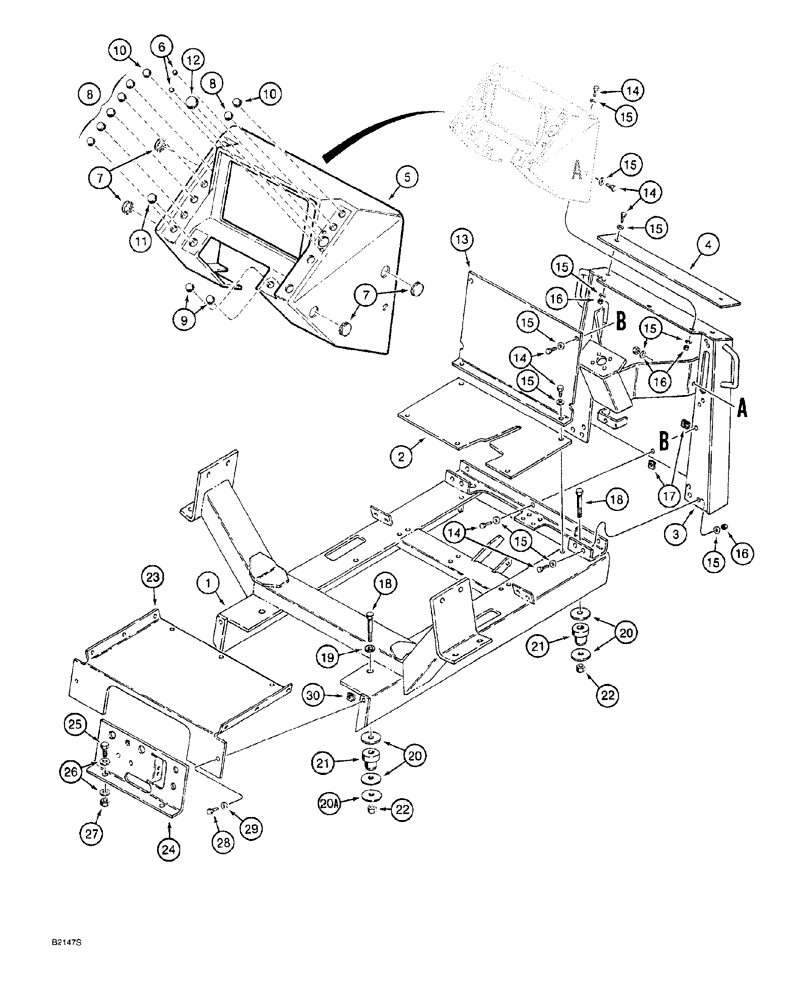

Запчасти Case 760 (09-006) - OPERATORS COMPARTMENT, PLATFORM, FLOORPLATES, STEERING TOWER AND PANELS (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

H671339

PLATFORM

operators compartment, Serial Range: -JAF0022844

1шт.

1

H673242

PLATFORM

operators compartment, Start Serial: JAF0022844

1шт.

2

H403972

FLOOR

PLATE, front

1шт.

3

H672108

BRACKET

TOWER steering

1шт.

4

H403907

COVER

steering tower, if used

1шт.

5

D123199

PANEL

instrument, tractor

1шт.

6

353-400

PLUG,Dome, .250" hole, Nylon

2шт.

7

353-401

PLUG,Dome, .312" hole, Nylon

button, 5/16 inch

4шт.

8

353-402

PLUG,Dome, .375" hole, Nylon

6шт.

9

353-403

PLUG,Dome, .437" hole, Nylon

2шт.

10

353-404

PLUG,Dome, .500" hole, Nylon

2шт.

11

353-407

PLUG,Dome, .687" hole, Nylon

button, 11/16 inch

1шт.

12

353-411

PLUG,Dome, 1.000" hole, Nylon

1шт.

13

H433711

COVER

PANEL steering tower

1шт.

14

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

26-28шт.

15

H426775

WASHER

flat, special, hardened

36-40шт.

16

232-4115

LOCK NUT,5/16"-18, GC

9-11шт.

17

H346650

NUT

U-type, 5/16 inch NC

5шт.

18

113-2649

BOLT hex, 5/8 NC x 5 inch

4шт.

19

T53567

BEARING WASHER,16.66mm ID x 33.33mm OD x 3.43mm Thk

flat, special, hardened, used only on rear mounts

2шт.

20

A141470

WASHER

flat, special

8шт.

20a

D89007

WASHER

flat, special

4шт.

21

A141451

SHOCK ABSORBER

MOUNT rubber, operators platform

4шт.

22

232-41110

NUT,5/8"-11, GC

4шт.

23

H433305

PLATE

floor, rear

1шт.

24

H434984

ANGLE

PLATE bulkhead, mounting, hydraulic fittings

1шт.

25

413-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5

2шт.

26

496-21053

WASHER,17/32" x 1 1/16" x .134"

Hardened

4шт.

27

232-4118

NUT,1/2"-13, GC

2шт.

28

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

5шт.

29

H426775

WASHER

flat, special, hardened

5шт.

30

H346650

NUT

U-type, 5/16 inch NC

5шт.
