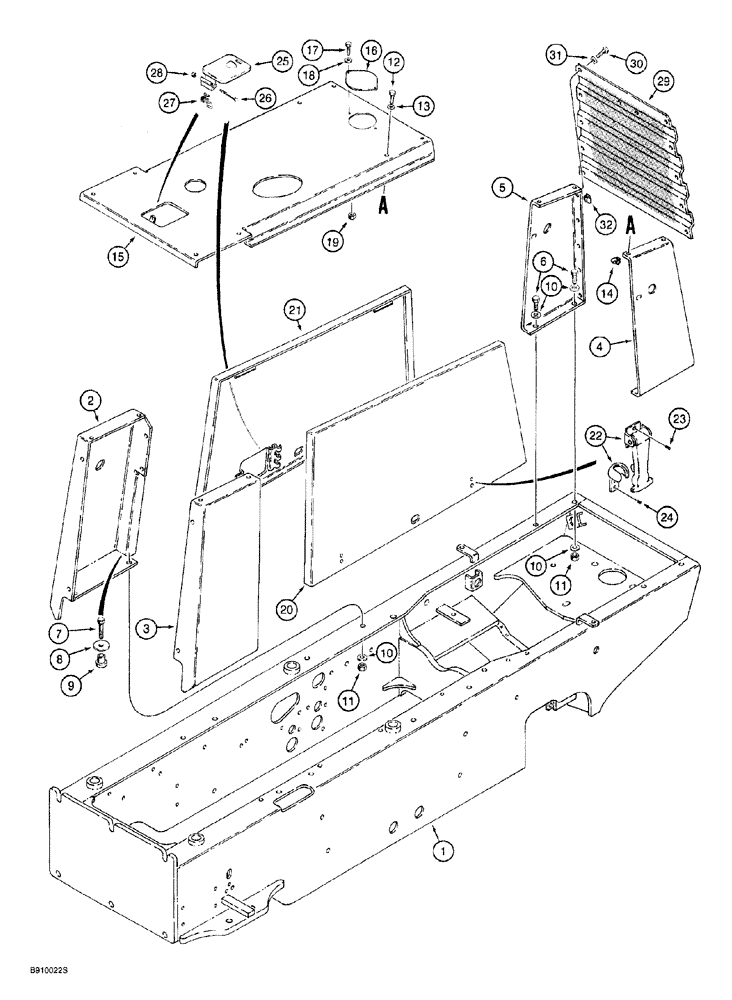

Запчасти Case 760 (09-004) - CHASSIS, HOOD, AND GRILLE, SIDE PANELS RETAINED TO HOOD FLANGE W/TUBE BRACKETS (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

H673476

CHASSIS

760 Trencher

1шт.

2

H673493

SUPPORT

COWL upright, left-hand

1шт.

3

H673492

SUPPORT

COWL upright, right-hand

1шт.

4

H432245

SUPPORT

SHROUD radiator, right-hand

1шт.

5

H432237

SUPPORT

SHROUD radiator, left-hand

1шт.

6

413-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5

4шт.

7

413-840

BOLT,Hex, 1/2" - 13 x 2-1/2", Gr 5

hex, 1/2 NC x 2-1/2 inch

4шт.

8

B15606

WASHER

flat, special

4шт.

9

CASL13142

BUSHING

MOUNT isolator, rubber, cowl

4шт.

10

496-21053

WASHER,17/32" x 1 1/16" x .134"

Hardened

12шт.

11

232-4118

NUT,1/2"-13, GC

8шт.

12

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

8шт.

13

H426775

WASHER

flat, special, hardened

8шт.

14

H346650

NUT

U-type, 5/1 6 inch NC

8шт.

15

H673768

HOOD

engine

1шт.

16

D143572

LID

COVER radiator cap access

1шт.

17

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

2шт.

18

495-11028

WASHER,1/4", SAE

(flat, 9/32 x 5/8 x 1/16")

2шт.

19

231-5144

SERRATED NUT,Flg, USR, 1/4"-20

2шт.

20

H673769

PANEL

side, engine, right-hand

1шт.

21

H673770

PANEL

side, engine, left-hand

1шт.

22

H672204

HOOD

LATCH

4шт.

23

151-558

RIVET,Pop, 3/16" x .450"

break mandrel, 3/16 x 1/2 inch

8шт.

24

151-559

RIVET,Pop, 4.75mm OD x 12.7mm L

Break mandrel

8шт.

25

D146196

INSPECTION DOOR

KIT engine side panel and hood access door, includes 321-6672 warning decal, see Fig. 9-152, Ref. 30

2шт.

26

413-452

BOLT,Hex, 1/4" - 20 x 3-1/4", Gr 5

2шт.

27

D121677

SPRING

access door

2шт.

28

230-4214

LOCK NUT,1/4"-20, GA

2шт.

29

H432435

GRILLE

radiator guard

1шт.

30

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

10шт.

31

H426775

WASHER

flat, special, hardened

10шт.

32

H346650

NUT

U-type, 5/16 inch NC

10шт.
