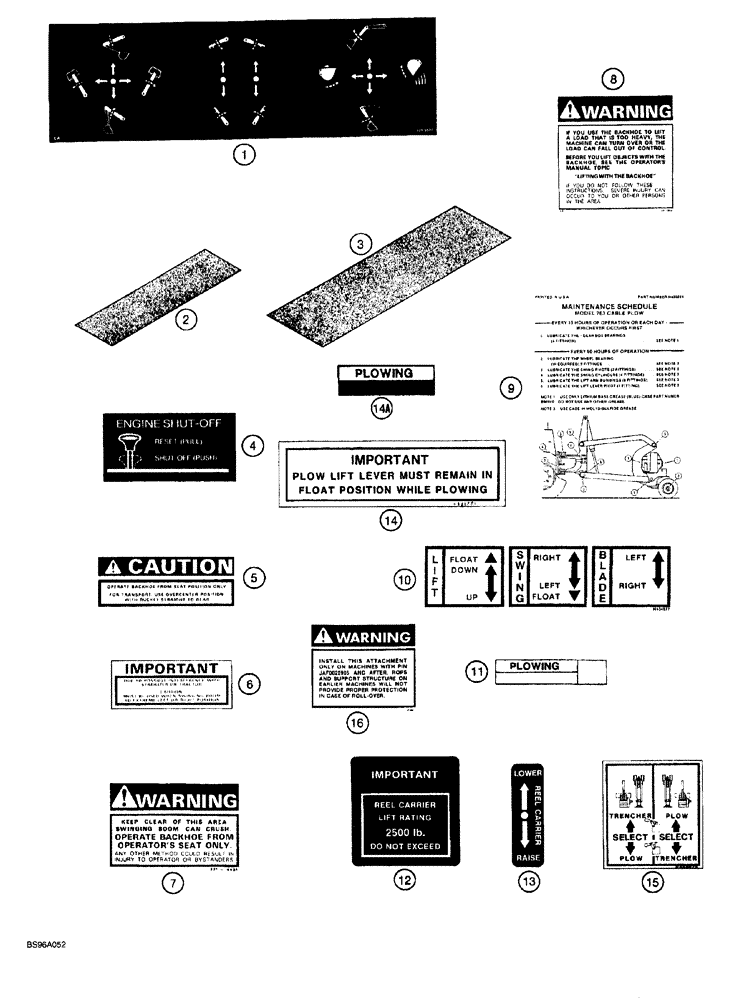

Запчасти Case 760 (09-154) - BACKHOE, PLOW, REEL CARRIER, AND QUAD DECALS (89) - TOOLS

1

D123978

DECAL

backhoe control pattern

1шт.

Part of Decal Kit, P/N H672679

1шт.

2

H386334

FLOOR MAT

STRIP anti-skid, backhoe access steps

3шт.

3

D55216

PAD,2" x 9"

Backhoe decals

2шт.

4

H434268

DECAL

engine shut-off, backhoe

1шт.

Part of Decal Kit, P/N H672679

1шт.

5

321-3056

DECAL

Caution, operate backhoe from seat position only

1шт.

Part of Decal Kit, P/N H672679

1шт.

6

321-3058

DECAL

Important, due to possible interference with stabilizer or tractor, backhoe

1шт.

Part of Decal Kit, P/N H672679

1шт.

7

321-4481

DECAL

Warning, keep clear of this area, swinging boom can crush, backhoe

2шт.

Part of Decal Kit, P/N H672679

1шт.

8

321-6046

WARNING DECAL

If you use the backhoe to lift a load that is too heavy

1шт.

Part of Decal Kit, P/N H672679

1шт.

9

H435214

DECAL

maintenance schedule, plow and reel carrier

1шт.

Part of Decal Kit, P/N H672679

1шт.

10

H434977

DECAL

plow control pattern, lift/swing/blade, plow and reel carrier

1шт.

Part of Decal Kit, P/N H672679

1шт.

11

H435035

DECAL

plowing and reel

1шт.

Part of Decal Kit, P/N H672679

1шт.

12

H435204

DECAL

Important, reel carrier lift rating, 2500 Ib, plow and reel carrier

3шт.

Part of Decal Kit, P/N H672679

1шт.

13

H435210

DECAL

reel carrier control pattern, plow and reel carrier

1шт.

Part of Decal Kit, P/N H672679

1шт.

14

H436751

DECAL

Important, plow lift lever, plow and reel carrier

1шт.

14a

107140A1

DECAL

plowing and reel

1шт.

15

H435572

DECAL

select, trencher/plow, quad decals

1шт.

16

321-6983

DECAL

Warning, Install This Attachment Only On Machines With P.I.N. JAF0022905 and after, quad

1шт.

H672679

DECAL

KIT, Includes: Ref. 1 and 4 - 13, See Figs. 9-152 and 9-154 for additional decals that are included in this kit. No longer available, order component parts separately, quad

1шт.
