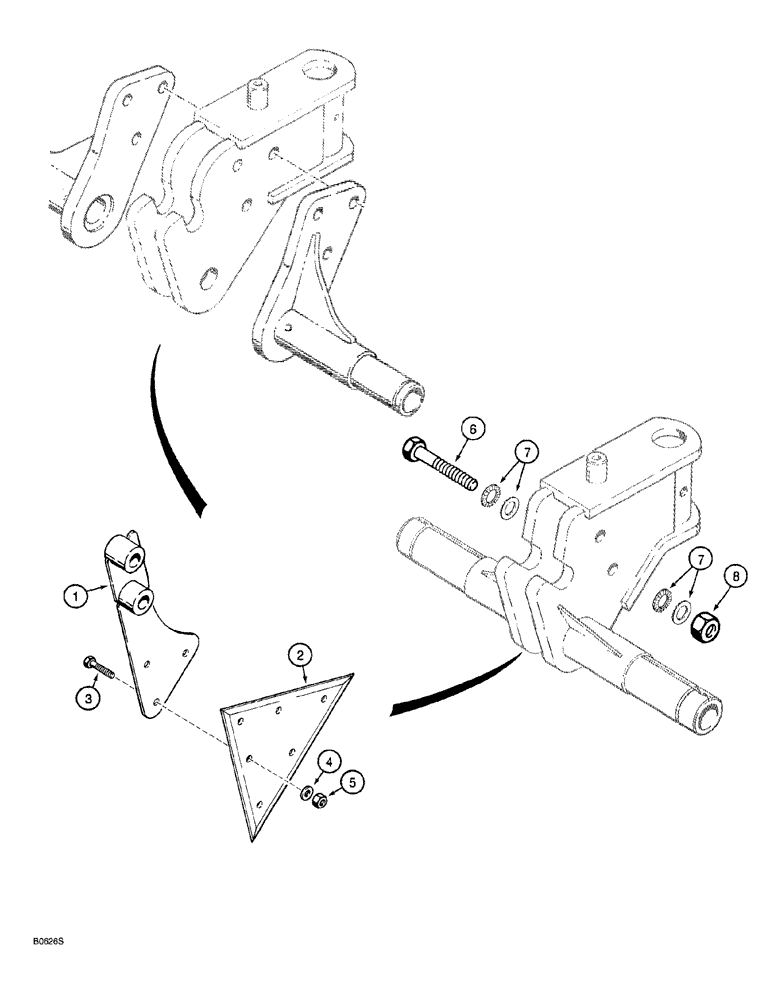

Запчасти Case 760 (09-148) - SOD CUTTER (89) - TOOLS

1

H673122

MOUNTING PARTS

BRACKET, sod cutter blade, see Fig. 9-126, Ref.19, for plow blade mounting

1шт.

2

H434907

HALF BLADE

sod cutter

1шт.

3

413-840

BOLT,Hex, 1/2" - 13 x 2-1/2", Gr 5

hex, 1/2 NC x 2-1/2 inch

3шт.

4

H274894

WASHER

flat, special

3шт.

5

232-4118

NUT,1/2"-13, GC

3шт.

6

413-1696

BOLT,Hex, 1" - 8 x 6", Gr 5

hex, 1 NC x 6 inch, additional hardware used on plows with integral skid shoe axles

2шт.

7

H435357

WASHER

disc-locking, special, additional hardware used on plows with integral skid shoe axles

4шт.

8

232-41116

LOCK NUT,1"-8, GC

Additional hardware used on plows with integral skid shoe axles

2шт.
