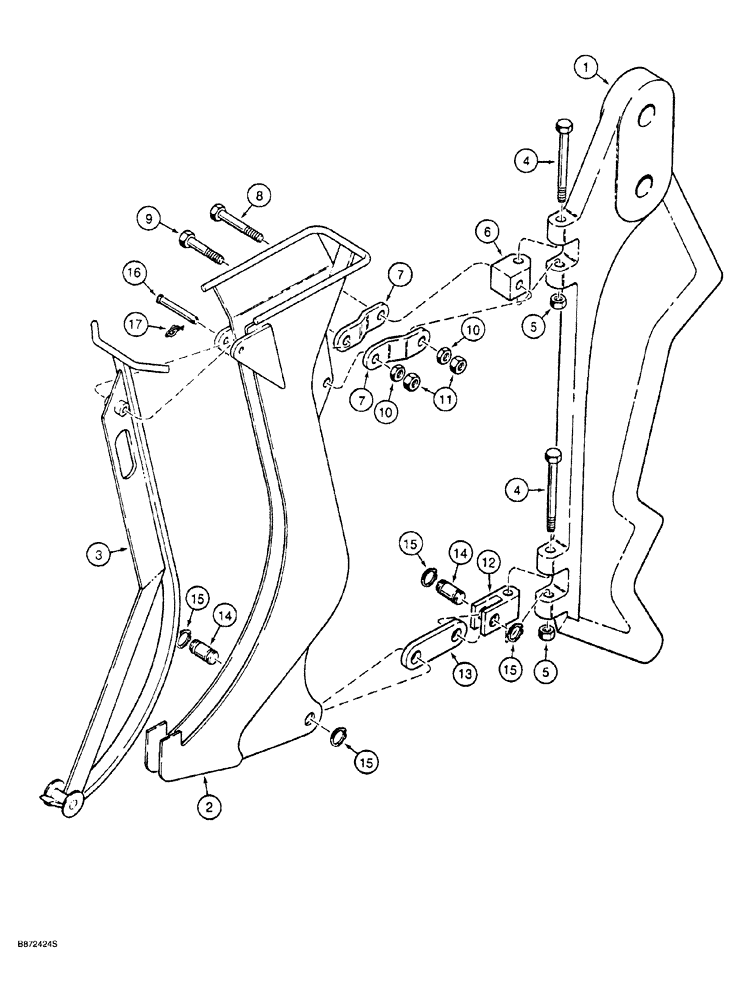

Запчасти Case 760 (09-142) - CAST PLOW BLADE AND 10:1 CHUTE, 24 INCH COVER DEPTH, 1-1/2 INCH WIDE BLADE (89) - TOOLS

1

H435271

BLADE

plow, cast, 24 inch cover depth, 1-1/2 x 50 inch

1шт.

2

H672999

GUIDE

CHUTE cable, 1 inch clearance

1шт.

3

H673000

GUIDE

GATE chute

1шт.

4

326-1296

BOLT,Hex, 3/4" - 10 x 6", Gr 8

2шт.

5

232-41112

NUT,3/4"-10, GC

2шт.

6

H434764

BLOCK ASSY.

HINGE chute, upper

1шт.

7

H434762

BAR

LINK chute to blade, upper

2шт.

8

426-1264

BOLT,Hex, 3/4" - 10 x 4", Gr 8

hex, 3/4 NC x 4 inch, grade 8

1шт.

9

23853R1

BOLT,Hex, 3/4" - 10 x 3", Gr 8

1шт.

10

425-1412

JAM NUT,Jam, 3/4"-10, G5

hex, jam, 3/4 inch NC

2шт.

11

232-41112

NUT,3/4"-10, GC

2шт.

12

H279331

BLOCK

HINGE chute, lower

1шт.

13

H434763

BAR

LINK chute to blade, lower

1шт.

14

H434765

SPLIT PIN/SAFETY PIN

pivot, lower link

2шт.

15

100-1698

SNAP RING,#98, Ext

Pivot pin

4шт.

16

H43687

AXLE PIN

clevis, gate

1шт.

17

H435274

PIN, SPLIT (COTTER)

PIN, COTTER RETAINER, clevis

1шт.
