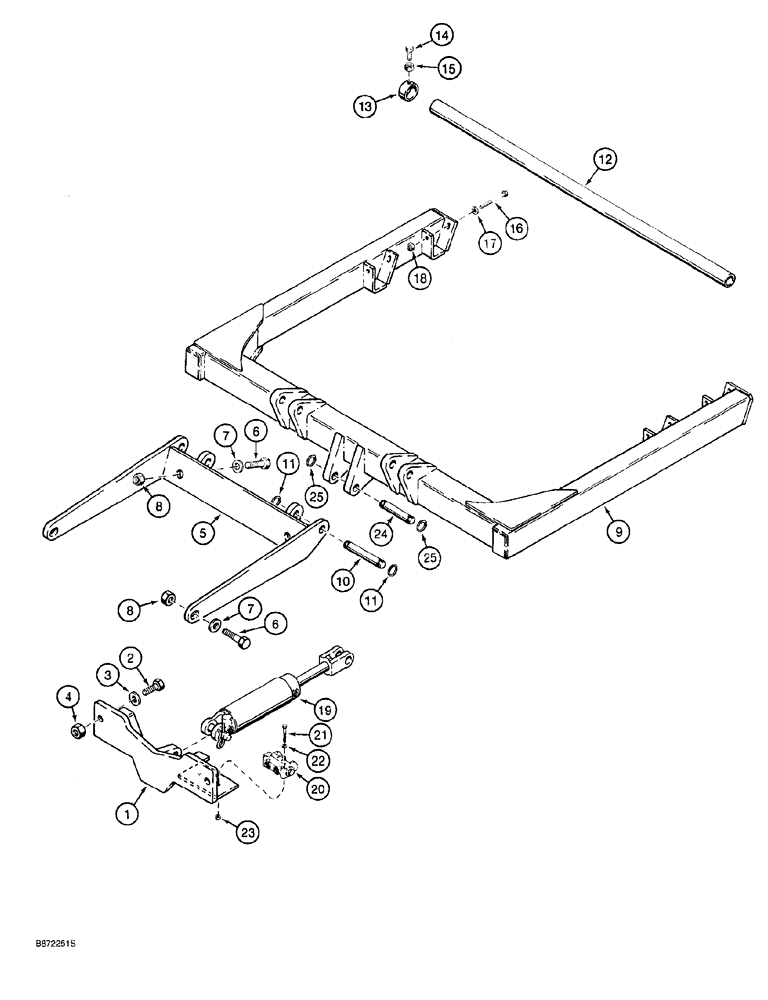

Запчасти Case 760 (09-136) - REEL CARRIER (89) - TOOLS

1

H672737

SUPPORT

reel carrier mounting

1шт.

2

413-1656

BOLT,Hex, 1" - 8 x 3-1/2", Gr 5

hex, 1 NC x 3-1/2 inch

2шт.

3

D36505

WASHER,26.99mm ID x 47.63mm OD x 2.38mm Thk

flat, special

2шт.

4

232-41116

LOCK NUT,1"-8, GC

2шт.

5

H672739

SUPPORT

pivot, real carrier

1шт.

6

113-977

BOLT,Hex, 1-1/4" - 7 x 3-1/2", Gr 5

4шт.

7

D43536

WASHER

flat, special, 1-1/4 inch

4шт.

8

230-41120

LOCK NUT,1 1/4"-7, GA

hex, self-locking, 1-1/4 inch NC

4шт.

9

H672719

CHASSIS

FRAME reel carrier

1шт.

10

H434801

PIN

pivot, Serial Range: bracket-frame

2шт.

11

103-16125

SNAP RING,#125, Ext

Pin

4шт.

12

H434806

SPINDLE

SHAFT reel carrier

1шт.

13

H434807

COLLAR

reel carrier shaft

2шт.

14

413-1024

BOLT,Hex, 5/8" - 11 x 1-1/2", Gr 5

2шт.

15

425-1410

JAM NUT,Jam, 5/8"-11, G5

hex, jam, 5/8 inch NC

2шт.

16

413-684

BOLT,Hex, 3/8" - 16 x 5-1/4", Gr 5

hex, 3/8 NC x 5-1/4 inch

2шт.

17

496-21041

WASHER,13/32" x 13/16" x .089", HDN

2шт.

18

232-4116

NUT,3/8"-16, GC

2шт.

19

REF

INSTRUCTION

CYLINDER ASSEMBLY, 4 inch ID x 8 inch stroke, reel carrier lift, see Fig. 8-78 for correct assembly and components

1шт.

20

H672547

VALVE

ASSEMBLY, lockout, reel carrier, parts list Fig. 8-115

1шт.

21

413-540

BOLT,Hex, 5/16" - 18 x 2-1/2", Gr 5

3шт.

22

H426775

WASHER

flat, special, hardened

3шт.

23

232-4115

LOCK NUT,5/16"-18, GC

3шт.

24

H435197

PIN

reel carrier lift cylinder, rod end

1шт.

25

103-16125

SNAP RING,#125, Ext

Pin

2шт.
