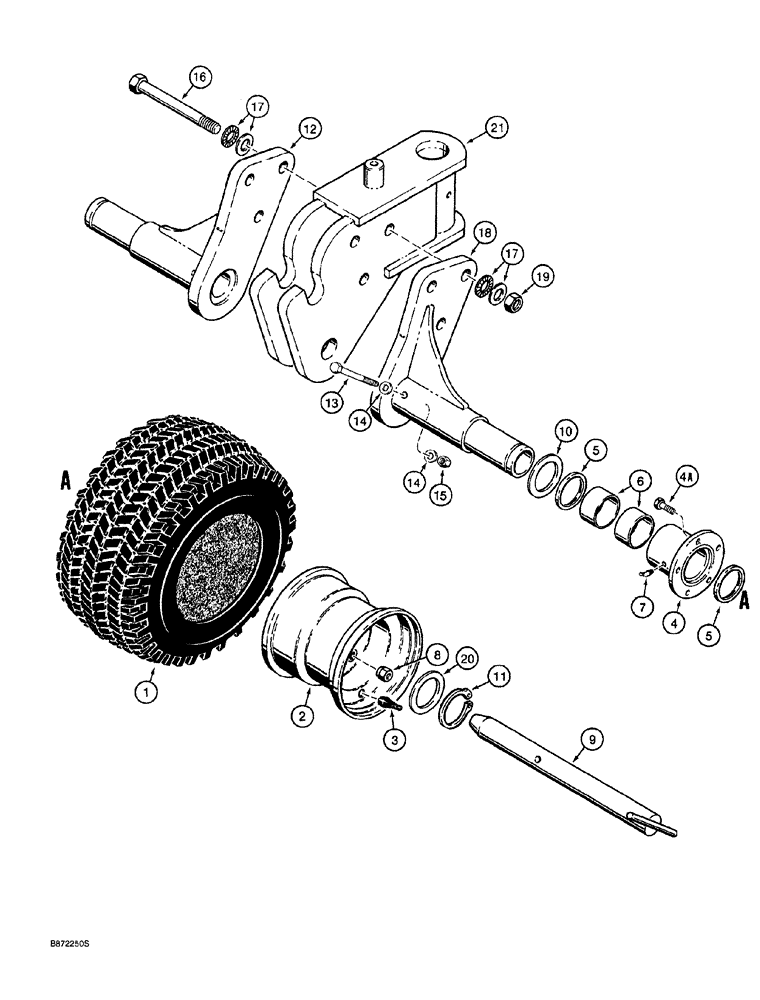

Запчасти Case 760 (09-132) - PLOW DEPTH WHEELS AND TIRES, IF USED PRIOR TO P.I.N. JAF0006686 (89) - TOOLS

1

REF

INSTRUCTION

TIRE plow, 9.50 x 18 - 8 NHS (Softrac) 6 ply rating, purchase locally

2шт.

2

H435335

WHEEL

80 x 70 inch

2шт.

3

H261917

VALVE

STEM, tire inflation

2шт.

H673030

HUB ASSEMBLY, plow depth wheel, Includes: Ref. 4 - 7

2шт.

4

H672876

HUB

plow depth wheel, Includes: Ref. 4A

1шт.

4a

414-820

BOLT,Hex, 1/2" - 20 x 1-1/4", Gr 5

hex, 1/2 NF x 1-1/4 inch

5шт.

5

L113522

SEAL

U-cup

2шт.

6

H435337

BEARING

hub

2шт.

7

219-37

LUBE NIPPLE,45 Degree Elbow, 1/4" - 28 NPTF

1шт.

8

N4221

WHEEL NUT

wheel

10шт.

9

H673433

PIN

lower blade mounting, replaces H672780

1шт.

10

74298

WASHER

hardened, special

2шт.

11

103-11237

SNAP RING,#237, Ext

Washer, replaces D22999

2шт.

12

H673044

AXLE HOUSING

plow depth wheel, left-hand

1шт.

13

413-860

BOLT,Hex, 1/2" - 13 x 3-3/4", Gr 5

1шт.

14

H274894

WASHER

flat, special

2шт.

15

232-4118

NUT,1/2"-13, GC

1шт.

16

413-16128

BOLT,Hex, 1" - 8 x 8", Gr 5

hex, 1 NC x 8 inch

3шт.

17

H435357

WASHER

disc-locking, special

6шт.

18

H673045

WEDGE

AXLE plow depth wheel, right-hand

1шт.

19

232-41116

LOCK NUT,1"-8, GC

3шт.

20

H435450

WASHER

flat, special

2шт.

21

H672773

SUPPORT

plow blade mounting, no longer available, order H673525 bracket, see Fig. 9-126, Ref. 19

1шт.
