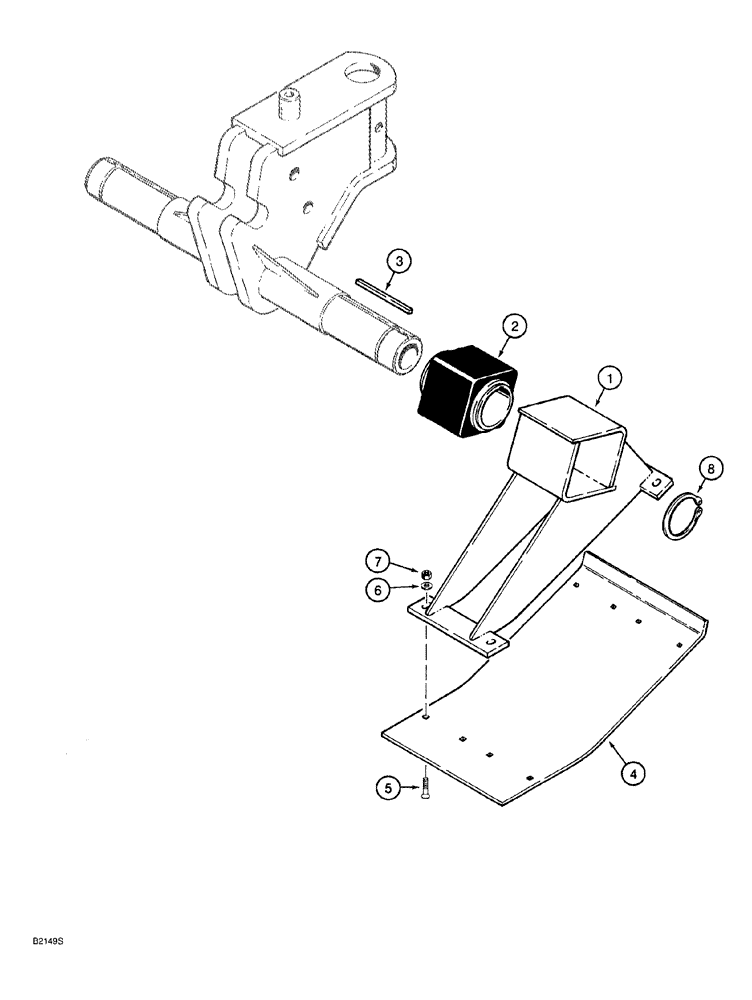

Запчасти Case 760 (09-130) - PLOW SKID SHOES (89) - TOOLS

H674485

SHOE (ASSY)

skid, no longer available, order Ref. 1, H674486 skid shoe and Ref. 2, H230862, mount, plow skid shoes, blade mounting bracket w/out integral skid shoes, Includes: Ref. 1 and 2

2шт.

1

H674486

SHOE (ASSY)

skid, plow skid shoes, blade mounting bracket w/out integral skid shoes( Plows with integral skid shoe pivot arms and H674486 skid shoes)

1шт.

See Fig. 9-129 (Ref. 1) for plows with H673034 skid shoes

1шт.

2

H230862

SHOCK ABSORBER

MOUNT rubber, skid shoe, plow skid shoes, blade mounting bracket w/out integral skid shoes

1шт.

3

H79368

KEY

square, 3/8 x 5-3/8 inch, plow skid shoes, blade mounting bracket w/out integral skid shoes

2шт.

4

H437946

LARGE PLATE

PLATE, LARGE skid shoe, 12 inch wide, plow skid shoe plates and mounting

2шт.

5

419-2624

CARRIAGE BOLT,#3, 3/8" - 16 x 1 1/2", Gr 5

plow, 3/8 NC x 1-1/2 inch, plow skid shoe plates and mounting

8шт.

6

496-21041

WASHER,13/32" x 13/16" x .089", HDN

If used, plow skid shoe plates and mounting

4-8шт.

7

231-5146

FLANGE NUT,3/8"-16

Plow skid shoe plates and mounting

8шт.

8

103-11300

SNAP RING,#300, Ext

Skid shoe, plow skid shoe plates and mounting

2шт.
