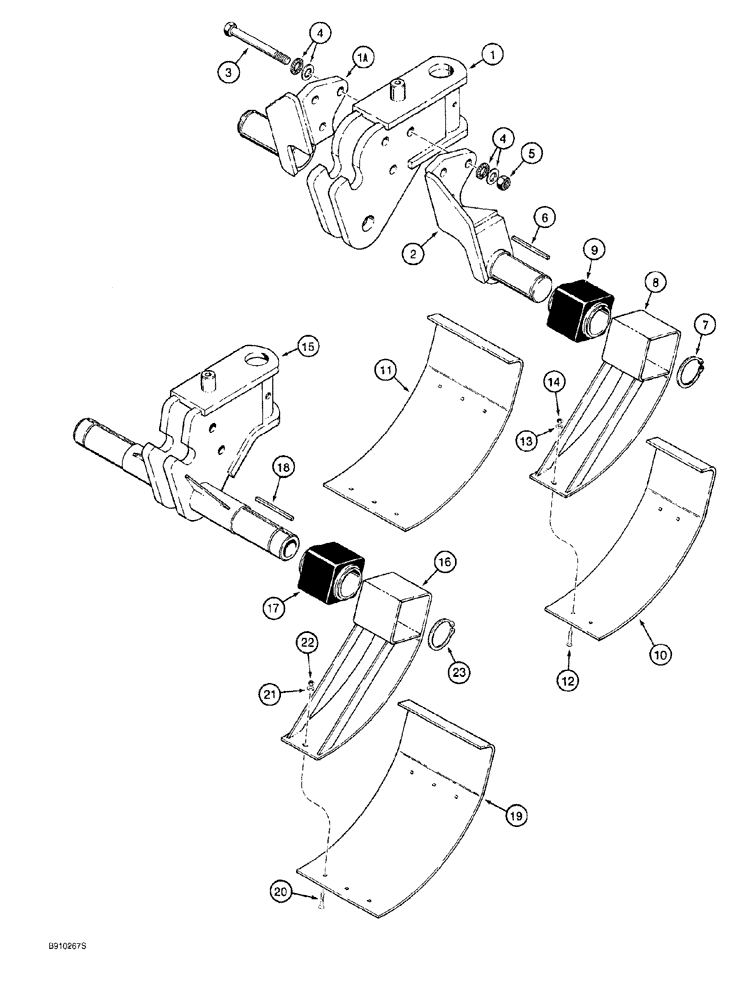

Запчасти Case 760 (09-128) - PLOW SKID SHOES (89) - TOOLS

1

H672773

SUPPORT

BRACKET plow blade mounting, no longer available, order H673525 bracket, Ref. 15, plows with separate two-piece shid shoe pivot arms

1шт.

1a

H673008

ARM

skid shoe pivot, left-hand, plows with separate two-piece shid shoe pivot arms

1шт.

2

H673031

ARM

skid shoe pivot, right-hand, plows with separate two-piece shid shoe pivot arms

1шт.

3

413-16128

BOLT,Hex, 1" - 8 x 8", Gr 5

hex, 1 NC x 8 inch, plows with separate two-piece shid shoe pivot arms

3шт.

4

H435357

WASHER

disc-locking, special, plows with separate two-piece shid shoe pivot arms

6шт.

5

232-41116

LOCK NUT,1"-8, GC

Plows with separate two-piece shid shoe pivot arms

3шт.

6

H79368

KEY

square, 3/8 x 5-3/8 inch, plows with separate two-piece shid shoe pivot arms

2шт.

7

103-11300

SNAP RING,#300, Ext

Skid shoe, plows with separate two-piece skid shoe pivot arms

2шт.

NSS

NOT SOLD SEPARAT

SHOE ASSEMBLY, skid, plows with separate two-piece shid shoe pivot arms, Includes: Ref. 8 and 9

2шт.

8

H673034

SHOE (ASSY)

skid, plows with separate two-piece shid shoe pivot arms

1шт.

9

H230862

SHOCK ABSORBER

MOUNT rubber, skid shoe, plows with separate two-piece shid shoe pivot arms

1шт.

10

H435345

SKID/SHOE

PLATE skid shoe, 8 inch wide, no longer available, order item 11, H435373 , plows with separate two-piece shid shoe pivot arms

2шт.

11

H435373

SKID/SHOE

PLATE skid shoe, 12 inch wide, plows with separate two-piece shid shoe pivot arms

2шт.

12

419-2624

CARRIAGE BOLT,#3, 3/8" - 16 x 1 1/2", Gr 5

plow, 3/8 NC x 1-1/2 inch, plows with separate two-piece shid shoe pivot arms

4шт.

13

496-21041

WASHER,13/32" x 13/16" x .089", HDN

Plows with separate two-piece shid shoe pivot arms

4шт.

14

232-4116

NUT,3/8"-16, GC

Plows with separate two-piece shid shoe pivot arms

4шт.

15

H673525

HOLDER

BRACKET plow blade mounting, with integral skid shoe arms, with integral skid shoe arms on blade, replaces H672773, Ref. 1

1шт.

NSS

NOT SOLD SEPARAT

SHOE ASSEMBLY, skid, mounting bracket and H673034 skid shoes (Ref. 16), Includes: Ref. 16 and 17

2шт.

16

H673034

SHOE (ASSY)

skid, mounting bracket and H673034 skid shoes (Ref. 16)

1шт.

See Fig. 9-131 (Ref. 1) for plows with H674486 skid shoes, plows with integral skid shoe pivot arms on blade

1шт.

17

H230862

SHOCK ABSORBER

MOUNT rubber, skid shoe, mounting bracket and H673034 skid shoes (Ref. 16)

1шт.

18

H79368

KEY

square, 3/8 x 5-3/8 inch, mounting bracket and H673034 skid shoes (Ref. 16)

2шт.

19

H435373

SKID/SHOE

PLATE, 12 inch wide, mounting bracket and H673034 skid shoes (Ref. 16)

2шт.

20

419-2624

CARRIAGE BOLT,#3, 3/8" - 16 x 1 1/2", Gr 5

plow, 3/8 NC x 1-1/2 inch, mounting bracket and H673034 skid shoes (Ref. 16)

4шт.

21

496-21041

WASHER,13/32" x 13/16" x .089", HDN

Mounting bracket and H673034 skid shoes (Ref. 16)

4шт.

22

232-4116

NUT,3/8"-16, GC

Mounting bracket and H673034 skid shoes (Ref. 16)

4шт.

23

103-11300

SNAP RING,#300, Ext

Skid shoe, mounting bracket and H673034 skid shoes (Ref. 16)

2шт.
