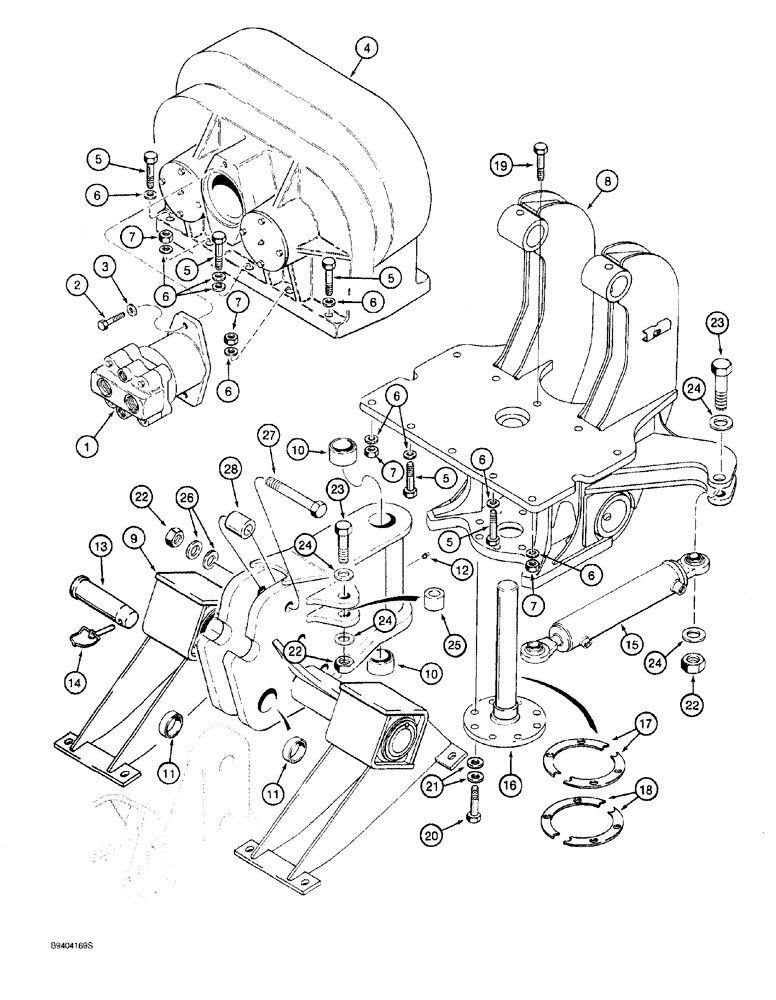

Запчасти Case 760 (09-127C) - PLOW MOTOR, GEARBOX, AND BLADE MOUNTING, P.I.N. JAF0104938 AND AFTER (89) - TOOLS

1

H673911

HYDRAULIC MOTOR

ASSEMBLY, plow, parts list Fig. 6-28

1шт.

2

413-832

BOLT,Hex, 1/2" - 13 x 2", Gr 5

2шт.

3

H274894

WASHER

flat, special

2шт.

4

H674911

BOX

GEAR ASSEMBLY, plow shaker, parts list Fig. 9-135A

1шт.

5

426-1044

BOLT,Hex, 5/8" - 11 x 2-3/4", Gr 8

hex, 5/8 NC x 2-3/4 inch, grade 8

9шт.

6

H274894

WASHER

flat, special

11шт.

7

232-41110

NUT,5/8"-11, GC

10шт.

8

108915A3

FRAME

plow gearbox mounting

1шт.

105966A1

MOUNTING PARTS

BRACKET plow blade, see Machinery Price List for plow blade and chute information, Includes: Ref. 9 - 11

1шт.

9

NSS

NOT SOLD SEPARAT

BRACKET plow blade mounting

1шт.

10

105870A1

BUSHING

bracket, upper and lower

2шт.

11

H437099

BUSHING

bracket, sides

2шт.

12

219-8

LUBE NIPPLE,1/4" - 28 NPTF

1шт.

13

H437057

PIN

plow blade retaining

2шт.

14

D130037

HEADED PIN,8.73mm OD

locking, plow blade retaining

2шт.

15

111620A2

CYLINDER

ASSEMBLY, 2-1/2 (64) ID x 8 inch (203 mm) stroke, plow blade steering, parts list Fig. 8-157C

1шт.

16

104797A2

AXLE

PIN plow blade pivot

1шт.

17

104799A2

SHIM

1/32 inch thick

1шт.

18

105866A2

SHIM

7/64 inch thick

1шт.

19

413-1048

BOLT,Hex, 5/8" - 11 x 3", Gr 5

1шт.

20

413-1028

BOLT,Hex, 5/8" - 11 x 1-3/4", Gr 5

hex, 5/8 NC x 1-3/4 inch

8шт.

21

495-11066

WASHER,5/8", SAE

flat, 21/32 x 1-5/16 x 3/32 inch

16шт.

22

232-41116

LOCK NUT,1"-8, GC

5шт.

23

413-1660

BOLT,Hex, 1" - 8 x 3-3/4", Gr 5

hex, 1 NC x 3-3/4 inch

2шт.

24

D36505

WASHER,26.99mm ID x 47.63mm OD x 2.38mm Thk

flat, special

4шт.

25

114879A1

SPACER

rod end

1шт.

26

H435357

WASHER

disc-locking, special

3-6шт.

27

413-1696

BOLT,Hex, 1" - 8 x 6", Gr 5

hex, 1 NC x 6 inch

3шт.

28

H435475

SPACER

blade mounting bracket

3шт.
