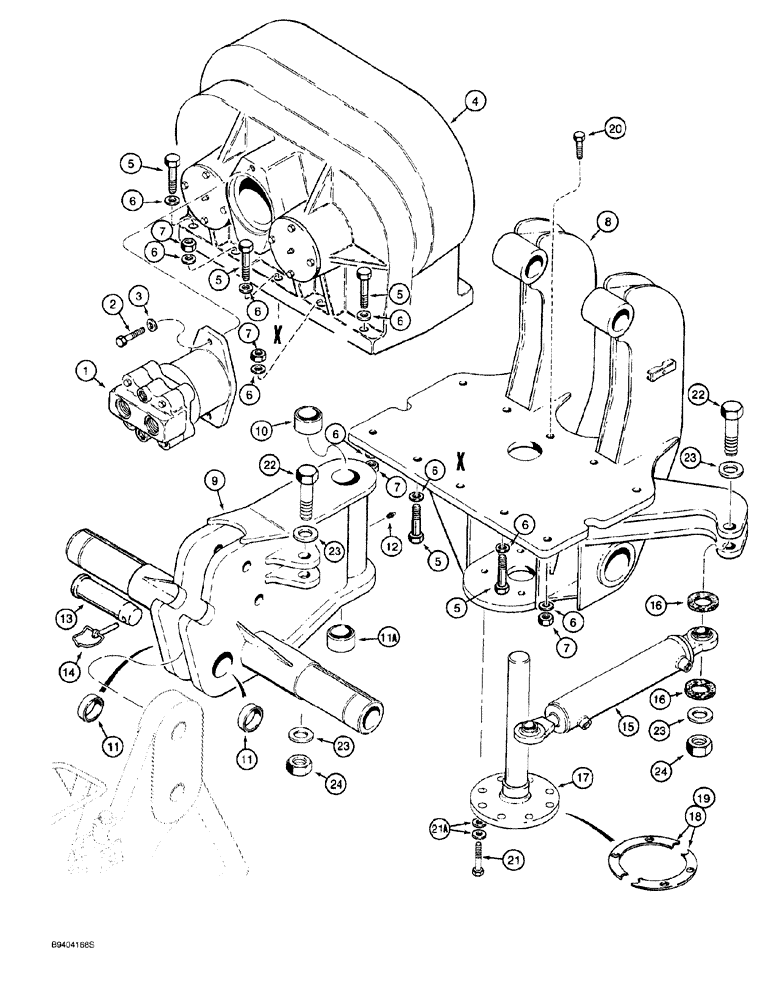

Запчасти Case 760 (09-127A) - PLOW MOTOR, GEARBOX & BLADE MOUNTING, P.I.N. JAF0104938 & AFTER (89) - TOOLS

1

H673911

HYDRAULIC MOTOR

ASSEMBLY, plow, parts list Fig. 8-122

1шт.

2

413-832

BOLT,Hex, 1/2" - 13 x 2", Gr 5

2шт.

3

H274894

WASHER

flat, special

2шт.

4

H674911

BOX

GEAR ASSEMBLY, plow shaker, parts list Fig. 9-135A

1шт.

5

426-1044

BOLT,Hex, 5/8" - 11 x 2-3/4", Gr 8

hex, 5/8 NC x 2-3/4 inch, grade 8

9шт.

6

T53567

BEARING WASHER,16.66mm ID x 33.33mm OD x 3.43mm Thk

flat, special, hardened

11шт.

7

232-41110

NUT,5/8"-11, GC

10шт.

8

108915A3

FRAME

plow gearbox mounting

1шт.

H673796

ANCHOR

BRACKET mounting, plow blade, see Machinery Price List for plow blade and chute information, no longer available, order 105966A1, Refs. 9 - 11 on Fig. 9-127C, Includes: Ref. 9 - 11A

1шт.

9

NSS

NOT SOLD SEPARAT

BRACKET plow blade mounting

1шт.

10

D50146

BUSHING,44.68mm ID x 57.15mm OD x 38.1mm L

bracket, upper

1шт.

11

H437099

BUSHING

bracket, sides

2шт.

11a

105870A1

BUSHING

bracket, lower

1шт.

12

219-8

LUBE NIPPLE,1/4" - 28 NPTF

1шт.

13

H437057

PIN

plow blade retaining

2шт.

14

D130037

HEADED PIN,8.73mm OD

locking, plow blade retaining pin

2шт.

15

H674932

STEERING CYLINDER

ASSEMBLY, 2-1/2 (64) ID x 8 inch (203 mm) stroke, plow blade steering, parts list Fig. 8-157A

1шт.

16

H438420

WASHER

special, cylinder closed end

2шт.

17

104797A2

AXLE

PIN plow blade pivot

1шт.

18

104799A2

SHIM

1/32 inch thick

1шт.

19

105866A2

SHIM

7/64 inch thick

1шт.

20

426-1048

BOLT,Hex, 5/8" - 11 x 3", Gr 8

hex, 5/8 NC x 3 inch, grade 8

1шт.

21

413-1028

BOLT,Hex, 5/8" - 11 x 1-3/4", Gr 5

hex, 5/8 NC x 1-3/4 inch

8шт.

21a

495-11066

WASHER,5/8", SAE

flat, 21/32 x 1-5/16 x 3/32 inch

16шт.

22

413-1660

BOLT,Hex, 1" - 8 x 3-3/4", Gr 5

hex, 1 NC x 3-3/4 inch

2шт.

23

D36505

WASHER,26.99mm ID x 47.63mm OD x 2.38mm Thk

flat, special

4шт.

24

232-41116

LOCK NUT,1"-8, GC

2шт.
