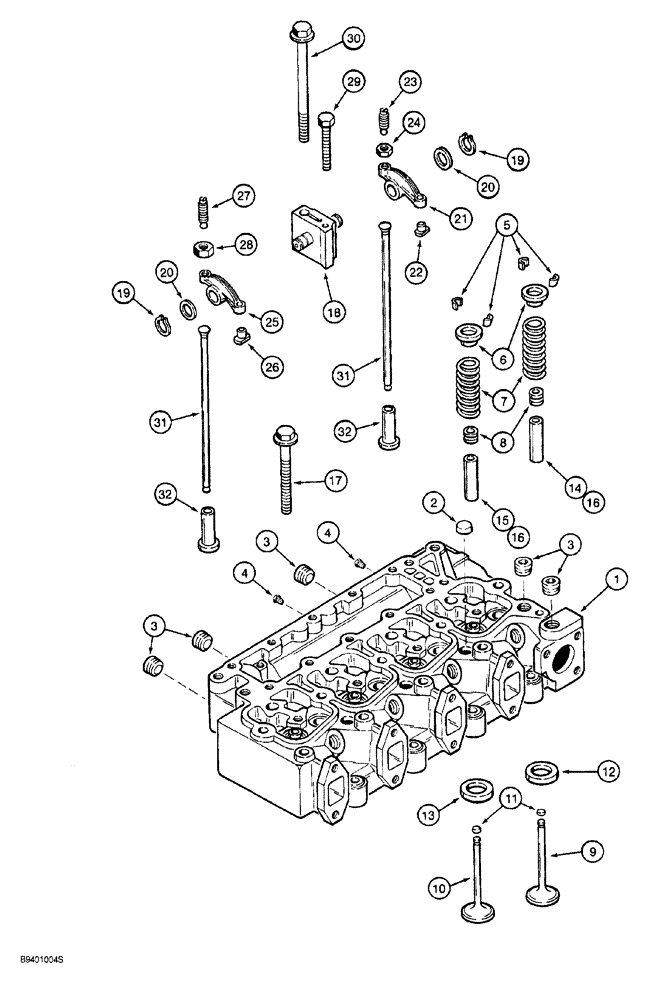

Запчасти Case 760 (02-028) - VALVE MECHANISM, 4-390 ENGINE (10) - ENGINE

JR920611

REMAN-CYLINDER HEAD

ASSY., North America only, comp. parts shown on this Fig. do not apply to the remanufactured assy.

1шт.

JC920611

CORE-CYLINDER HEAD

RETURN NUMBER, use this part number to return head for credit when using a remanufactured assy.

1шт.

1

J910275

HEAD (CYLINDER)

ASSEMBLY, new, with valves, used with 9 mm injector, prior to Engine Serial Number, Includes: Ref. 1 - 11

1шт.

1

J920611

HEAD (CYLINDER)

ASSEMBLY, new, with valves, used with 7 mm injector, Engine Serial Number 44566928, Includes: Ref. 1 - 11

1шт.

1

J913389

HEAD (CYLINDER)

ASSEMBLY, new, without valves, used with 9 mm injector, prior to Engine Serial Number 44566928, Includes: Ref. 2

1шт.

1

J920005

HEAD (CYLINDER)

ASSEMBLY, new, without valves, used with 7 mm injector, Engine Serial Number 44566928 and after, Includes: Ref. 2

1шт.

2

A77783

PLUG

expansion, 21 mm O.D., replaces J902606

3шт.

3

A77429

PLUG

hex socket, 1/2 inch PT

5шт.

4

J906619

PLUG,1/8" - 27

hex, 1/8 inch PT

2шт.

5

CASJ900250

RETAINER

KEEPER valve

16шт.

6

J900299

RETAINER

valve spring

8шт.

7

J900276

VALVE SPRING

8шт.

8

J901097

SEAL

valve

8шт.

9

J920867

VALVE

intake, replaces J901117

4шт.

10

J920868

VALVE

exhaust, replaces J901607

4шт.

11

J280911

WEAR PAD

service repair only for valve stem tip, for use on intake and exhaust valves

1шт.

12

J906854

SEAT, VALVE

insert, intake, service repair only

4шт.

13

J904105

SEAT, VALVE

insert, exhaust, service repair only

4шт.

14

J904408

GUIDE

valve, intake, service repair only, 14 mm O.D.

4шт.

These parts are semi-finished valve guides

1шт.

15

J904409

GUIDE

valve, exhaust, service repair only, 14 mm O.D.

4шт.

These parts are semi-finished valve guides

1шт.

16

J906206

GUIDE

valve, intake and exhaust, service repair only, 11 mm O.D.

12шт.

These parts are semi-finished valve guides

1шт.

17

J920779

BOLT,Flng, M12 x 1.75 x 70mm, Cl 12.9

Cylinder head, 70 mm long, replaces J903938

4шт.

17

J920780

BOLT,Flng, M12 x 1.75 x 120mm, Cl 12.9

Cylinder head, 120 mm long, replaces J903939

10шт.

18

J910814

SUPPORT

AND SHAFT ASSEMBLY, rocker arm

4шт.

19

J900242

SNAP RING

retaining, rocker arm

8шт.

20

J900245

WASHER

thrust, rocker arm

8шт.

21

J910811

ROCKER

ARM ASSEMBLY, intake, Includes: Ref. 22 - 24

4шт.

22

NSS

NOT SOLD SEPARAT

INSERT, rocker arm

1шт.

23

J937438

ADJUSTMENT SCREW,Hex Skt, 3/8" - 24 x 33mm, Adj, Ball Point

slotted set, adjusting, special

1шт.

24

425-116

NUT,3/8" - 24, Gr 5

Hex

1шт.

25

J910810

ROCKER

ARM ASSEMBLY, exhaust, Includes: Ref. 26 - 28

4шт.

26

NSS

NOT SOLD SEPARAT

INSERT rocker arm

1шт.

27

J937438

ADJUSTMENT SCREW,Hex Skt, 3/8" - 24 x 33mm, Adj, Ball Point

slotted set, adjusting, special

1шт.

28

425-116

NUT,3/8" - 24, Gr 5

Hex

1шт.

29

814-8075

BOLT,Hex, M8 x 1.25 x 75mm, Cl 8.8

4шт.

30

J920781

BOLT,Flng, M12 x 1.75 x 180mm, Cl 12.9

Rocker arm and cylinder head, 180 mm long, replaces J903940

4шт.

31

J923262

PUSH ROD

rocker arm, replaces J904679

8шт.

32

J925031

TAPPET

valve, push rod, replaces J907240

8шт.
