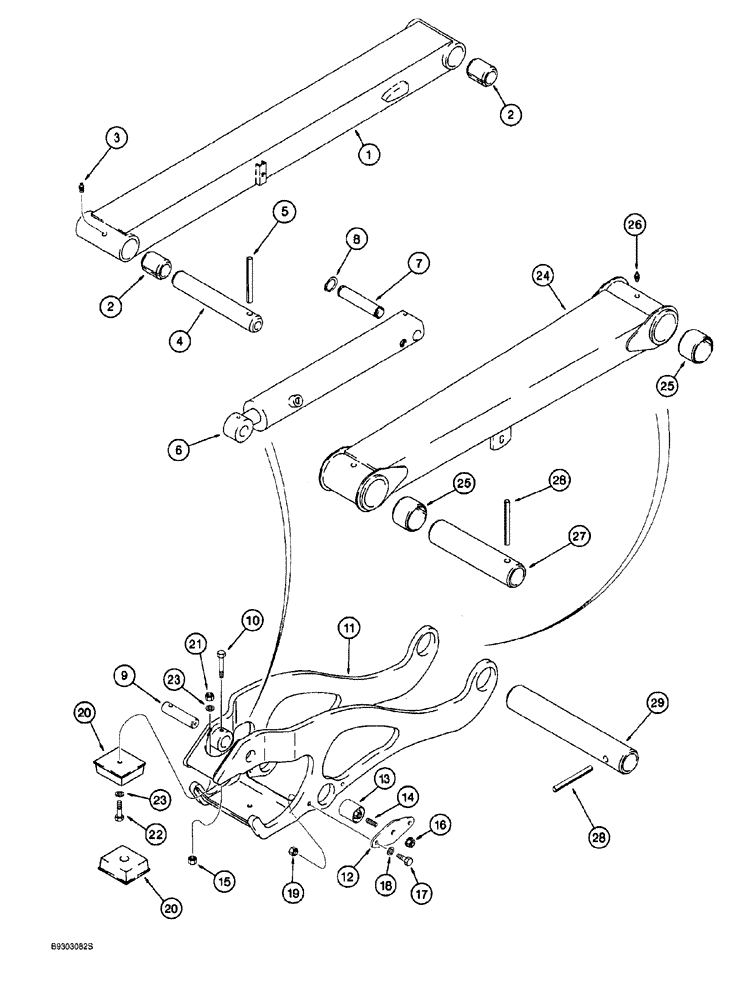

Запчасти Case 760 (09-125C) - PLOW LIFT ARMS AND MOUNTING, P.I.N. JAF0104938 AND AFTER, PLOWS W/OPEN LIFT CRADLE (ITEM 11) (89) - TOOLS

H673808

ARM

ASSEMBLY, plow lift, upper, Includes: Ref. 1 - 3

1шт.

1

NSS

NOT SOLD SEPARAT

ARM plow lift, upper

1шт.

2

H434904

BUSHING

plow lift arm

4шт.

3

219-8

LUBE NIPPLE,1/4" - 28 NPTF

2шт.

4

H436862

PIN

upper plow lift arm

2шт.

5

38-34064

PIN,5/8" x 4", Coiled

5/8" x 4", Coiled

2шт.

6

H673790

CYLINDER

ASSEMBLY, 3-1/2 (89) ID x 16-3/8 inch (461 mm) stroke, plow lift, parts list Fig. 8-153A

1шт.

7

H434493

PIN

plow lift cylinder, closed end

1шт.

8

103-16125

SNAP RING,#125, Ext

Plow lift cylinder pin

2шт.

9

H436865

PIN

plow lift cylinder, rod end

1шт.

10

413-648

BOLT,Hex, 3/8" - 16 x 3", Gr 5

1шт.

11

116328A1

CRADLE

plow lift

1шт.

Plows with open lift cradle

1шт.

12

116158A1

LARGE PLATE

PLATE, LARGE bumper mounting

2шт.

13

H438533

ISOLATOR

BUMPER rubber, lift arm, round

2шт.

14

H438537

STUD

1/2 NC x 1-1/2 inch

4шт.

15

232-4116

NUT,3/8"-16, GC

1шт.

16

231-5148

FLANGE NUT,Flg, USR, 1/2"-13

4шт.

17

413-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

4шт.

18

496-21041

WASHER,13/32" x 13/16" x .089", HDN

4шт.

19

232-4116

NUT,3/8"-16, GC

4шт.

20

D90990

GUARD

BUMPER rubber, lift arm, rectangular, with single mounting hole

2шт.

21

232-4116

NUT,3/8"-16, GC

2шт.

22

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

2шт.

23

496-21041

WASHER,13/32" x 13/16" x .089", HDN

2шт.

H673809

ARM

ASSEMBLY, plow lift, lower, Includes: Ref. 24 - 26

1шт.

24

NSS

NOT SOLD SEPARAT

ARM plow lift, lower

1шт.

25

H434903

BUSHING

plow lift arm

4шт.

26

219-8

LUBE NIPPLE,1/4" - 28 NPTF

2шт.

27

H436864

PIN

lower plow lift arm, rear

1шт.

28

38-34064

PIN,5/8" x 4", Coiled

5/8" x 4", Coiled

2шт.

29

H436863

PIN

lower plow lift arm, front

1шт.
