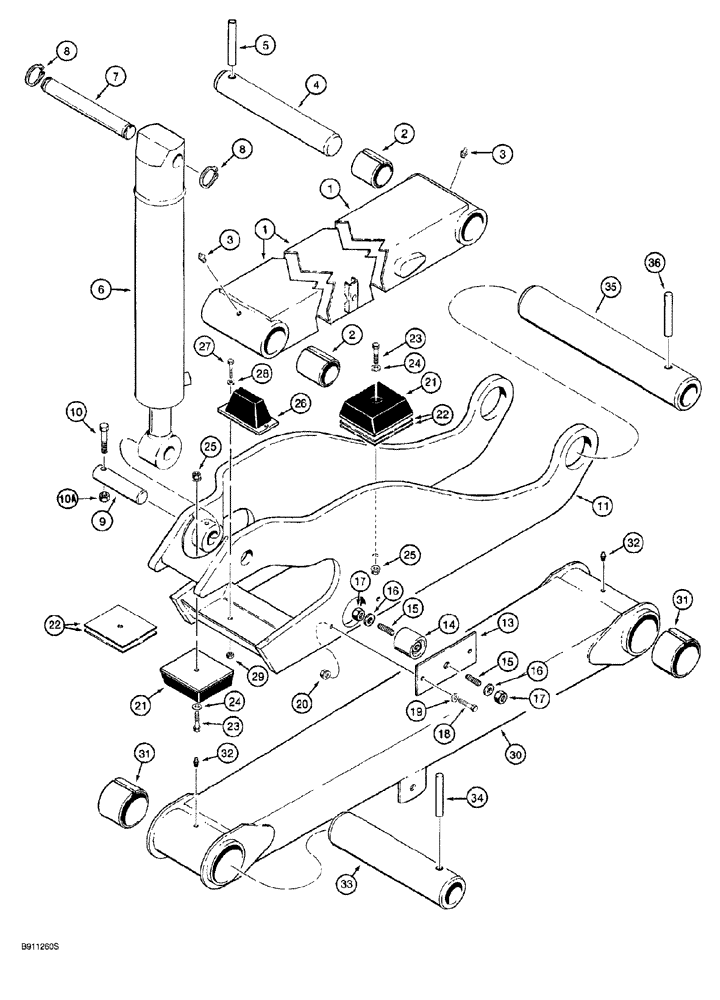

Запчасти Case 760 (09-125A) - PLOW LIFT ARMS AND MOUNTING, P.I.N. JAF0104938 AND AFTER, PLOWS W/CLOSED LIFT CRADLE (ITEM 11) (89) - TOOLS

H673808

ARM

ASSEMBLY, plow lift, upper, Includes: Ref. 1 - 3

1шт.

1

NSS

NOT SOLD SEPARAT

ARM plow lift, upper

1шт.

2

H434904

BUSHING

plow lift arm

4шт.

3

219-8

LUBE NIPPLE,1/4" - 28 NPTF

2шт.

4

H436862

PIN

upper plow lift arm

2шт.

5

38-34064

PIN,5/8" x 4", Coiled

5/8" x 4", Coiled

2шт.

6

H673790

CYLINDER

ASSEMBLY, 3-1/2 (89) ID x 16-3/8 inch (461 mm) stroke, plow lift, parts list Fig. 8-153A

1шт.

7

H434493

PIN

plow lift cylinder, closed end

1шт.

8

103-16125

SNAP RING,#125, Ext

Plow lift cylinder pin

2шт.

9

H436865

PIN

plow lift cylinder, rod end

1шт.

10

413-648

BOLT,Hex, 3/8" - 16 x 3", Gr 5

1шт.

10a

232-4116

NUT,3/8"-16, GC

1шт.

11

116328A1

CRADLE

plow lift, replaces H673899

1шт.

13

116158A1

LARGE PLATE

PLATE, LARGE bumper mounting, replaces H438539

2шт.

14

H438533

ISOLATOR

BUMPER rubber, lift arm, round

2шт.

15

H438537

STUD

1/2 NC x 1-1/2 inch

4шт.

16

H274894

WASHER

flat, special, if used

4шт.

17

231-5148

FLANGE NUT,Flg, USR, 1/2"-13

4шт.

18

413-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

4шт.

19

496-21041

WASHER,13/32" x 13/16" x .089", HDN

4шт.

20

231-5146

FLANGE NUT,3/8"-16

4шт.

21

D90990

GUARD

BUMPER rubber, lift arm, rectangular, with single mounting hole

2шт.

22

H438536

SHIM,1.50mm Thk

Bumper, Used under lower Ref. 21

1шт.

23

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

2шт.

24

496-21041

WASHER,13/32" x 13/16" x .089", HDN

2шт.

25

231-5146

FLANGE NUT,3/8"-16

2шт.

26

H434733

STOP

BUMPER rubber, plow lift arm, rectangular, with dual mounting holes

1шт.

27

413-520

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

hex, 5/16 NC x 1-1/4 inch

2шт.

28

H426775

WASHER

flat, special, hardened

2шт.

29

232-4115

LOCK NUT,5/16"-18, GC

2шт.

H673809

ARM

ASSEMBLY, plow lift, lower, Includes: Ref. 30 - 32

1шт.

30

NSS

NOT SOLD SEPARAT

ARM plow lift, lower

1шт.

31

H434903

BUSHING

plow lift arm

4шт.

32

219-8

LUBE NIPPLE,1/4" - 28 NPTF

2шт.

33

H436864

PIN

lower plow lift arm, rear

1шт.

34

38-34064

PIN,5/8" x 4", Coiled

5/8" x 4", Coiled

1шт.

35

H436863

PIN

lower plow lift arm, front

1шт.

36

38-34064

PIN,5/8" x 4", Coiled

5/8" x 4", Coiled

1шт.
