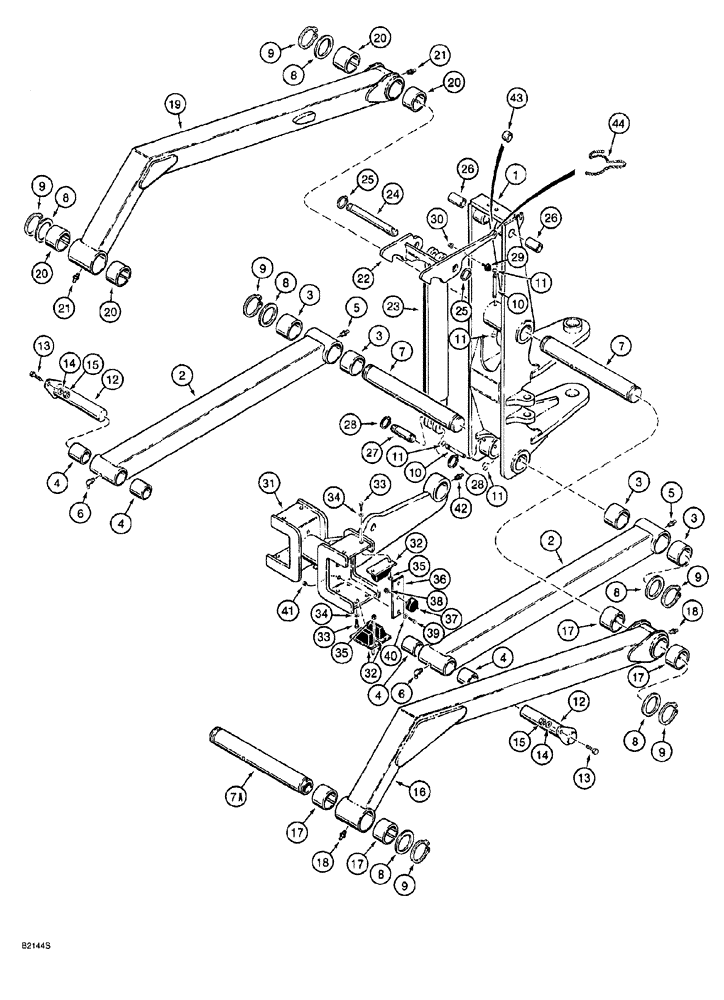

Запчасти Case 760 (09-124) - PLOW LIFT ARMS AND MOUNTING, PRIOR TO P.I.N. JAF0104938 (89) - TOOLS

1

H673282

ROTATOR

TOWER plow swing, see Fig. 9-122, Ref. 13

1шт.

2

H672794

ARM

ASSEMBLY, plow lift, lower, Includes: Ref. 3 - 6

2шт.

3

H434903

BUSHING

plow lift arm, large

2шт.

4

H434904

BUSHING

plow lift arm, small

2шт.

5

219-8

LUBE NIPPLE,1/4" - 28 NPTF

1шт.

6

219-57

LUBE NIPPLE,90 Degree Elbow, 1/4" - 28 NPTF

90 degree, 1/4-28 taper x 3/4 inch

1шт.

7

H436309

PIN

plow lift arm, front

2шт.

7a

H436309

PIN

plow lift arm, rear

1шт.

8

L46020

WASHER

flat, special

6шт.

9

103-11300

SNAP RING,#300, Ext

Plow lift arm pin

6шт.

10

H435834

RETAINER

PIN, plow lift arm pin

3шт.

11

100-1647

SNAP RING,#47, Ext

6шт.

12

H672926

PIN

plow lift arm, lower

2шт.

13

413-832

BOLT,Hex, 1/2" - 13 x 2", Gr 5

2шт.

14

H274894

WASHER

flat, special

2шт.

15

232-4118

NUT,1/2"-13, GC

2шт.

16

H672793

ARM

ASSEMBLY, plow lift, upper, right-hand, Includes: Ref. 17 and 18

1шт.

17

H434903

BUSHING

plow lift arm, upper

4шт.

18

219-8

LUBE NIPPLE,1/4" - 28 NPTF

2шт.

19

H672867

ARM

ASSEMBLY, plow lift, upper, left-hand, Includes: Ref. 20 and 21

1шт.

20

H434903

BUSHING

plow lift arm, upper

4шт.

21

219-8

LUBE NIPPLE,1/4" - 28 NPTF

2шт.

22

H673474

LATCH

plow lift arm

1шт.

23

REF

INSTRUCTION

CYLINDER ASSEMBLY, 3-1/2 (89) ID x 20 inch (508 mm) stroke, plow lift, see Figs.8-150 and 8-152 for correct cylinder and components

1шт.

24

H434493

PIN

plow lift cylinder, closed end

1шт.

25

103-16125

SNAP RING,#125, Ext

Plow lift cylinder pin

2шт.

26

H435826

BUSHING

Sleeve tension, lift cylinder pin

2шт.

27

D32932

PIN,31.75mm OD x 112.78mm L

plow lift cylinder, rod end

1шт.

28

103-16125

SNAP RING,#125, Ext

Plow lift cylinder pin

2шт.

29

H359216

MOUNTING PARTS

INSULATOR latch

1шт.

30

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

1шт.

31

H673477

CRADLE

BRACKET lower arm positioning

1шт.

32

H434733

STOP

BUMPER rubber, lower arm, rectangular

6шт.

33

413-520

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

hex, 5/16 NC x 1-1/4 inch

12шт.

34

H426775

WASHER

flat, special, hardened

12шт.

35

232-4115

LOCK NUT,5/16"-18, GC

12шт.

36

H434776

PLATE

mounting, isolation

2шт.

37

L127163

BOLT

MOUNT isolation

2шт.

38

231-5146

FLANGE NUT,3/8"-16

2шт.

39

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

4шт.

40

496-21041

WASHER,13/32" x 13/16" x .089", HDN

4шт.

41

232-4116

NUT,3/8"-16, GC

4шт.

42

219-8

LUBE NIPPLE,1/4" - 28 NPTF

1шт.

43

H436872

BUSHING

Plow lift cylinder, closed end, not included with cylinder assembly

1шт.

44

H436437

ROPE

plow lift arm latch, if used

1шт.
